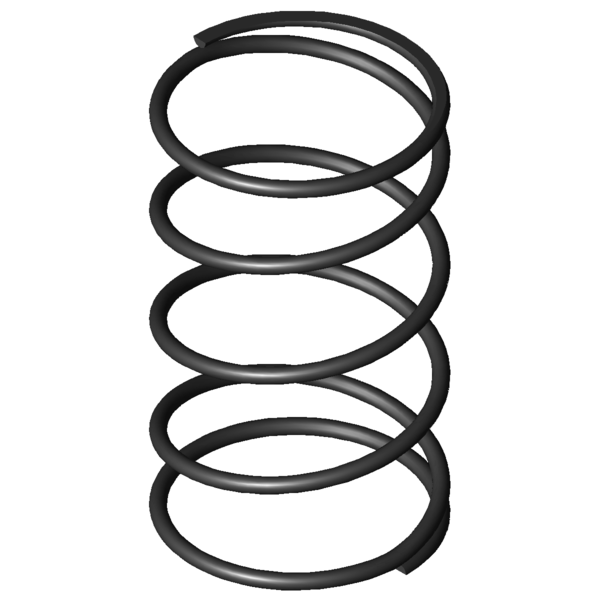

Home » Products » Compression springs » d-414a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm Scaled prices - Compression spring D-414A Quantity Single price [EUR] 1 17.9400 EUR 2 14.2900 EUR 3 10.3300 EUR 7 8.7500 EUR 17 8.7500 EUR 37 8.7500 EUR 75 8.7500 EUR 125 8.7500 EUR 175 8.7500 EUR 250 8.7500 EUR 350 8.7500 EUR Compression spring Buy Product image Compression spring D-414A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-414A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 9 mm Wire diameter Di mm Inner coil diameter D 141 mm Mean coil diameter De 150 mm Outer coil diameter Dd 128 mm maximum diameter of mandrel Dh 156.2 mm minimum diameter of bush L0 254 mm unstressed spring length Lk mm buckling length Fn 1292.708 N maximum force in static use Ln 64.25 mm Minimum length in static use sn 189.75 mm Maximum spring deflection in static use Fndyn 1242.412 N maximum force in dynamic use Lndyn 71.63 mm Minimum length in dynamic use shdyn 83.17 mm Maximum stroke in dynamic use S 70 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 6.813 N/mm Spring rate Weight 1225.1437 g weight of one spring Fntol 89.2 N (+/-) tolerance of maximum force in static use Fndtol 88.5 N (+/-) tolerance of maximum dynamic force Detol 2.7 mm (+/-) tolerances of outer coil diameter L0tol 10.26 mm (+/-) tolerance of unstressed spring length Price group ###AW - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm Datasheet download pdf file Metal spring characteristic Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm Metal spring characteristic download pdf file CAD data Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm force-path-calculation Compression spring D-414A Inquiry formular Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm Inquiry formular Compression spring D-414A Similar compression springs to Compression spring D-414A Spring steel Ø 9 x 141 x 254 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-414A EN 10270-1 9 150 254 1292.708 64.25 189.75 3.5 6.813 100.0 | 100.0 | 100.0 | 100.0 VD-414A 1.4310 9 150 254 1110.301 64.25 189.75 3.5 5.851 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-51 115 300 1.854 EN 10270-1 436.285 64.64 235.36 53.5 | 76.0 | 57.2 | 27.2 D-339X 85 252 2.261 EN 10270-1 454.906 50.81 201.19 56.1 | 70.5 | 64.8 | 33.2 D-364C 95 278 2.364 EN 10270-1 524.169 56.29 221.71 56.6 | 71.9 | 63.1 | 34.7 D-364R-50 115 196 2.913 EN 10270-1 438.403 45.5 150.5 57.6 | 73.5 | 56.6 | 42.8 D-364T 105 291 3.035 EN 10270-1 690.479 63.47 227.53 62.9 | 75.8 | 68.4 | 44.5 D-389C 120 331 3.082 EN 10270-1 800.143 71.4 259.6 63.6 | 78.2 | 67.5 | 45.2 D-389E-12 105 230 4.725 EN 10270-1 767.039 67.67 162.33 73.7 | 79.4 | 72.4 | 69.4 D-389B 120 216 4.843 EN 10270-1 801.464 50.53 165.47 75.5 | 80.9 | 74.6 | 71.1 D-389E-24 89 280 5.219 EN 10270-1 982.765 91.7 188.3 80.1 | 75.9 | 87.6 | 76.6 D-414D-12 135 280 6.075 EN 10270-1 1172.521 87 193 65.5 | 83.0 | 62.1 | 51.3 D-394C 98 285 6.734 EN 10270-1 1199.3 106.9 178.1 91.1 | 81.1 | 93.3 | 98.8 D-414A 150 254 6.813 EN 10270-1 1292.708 64.25 189.75 100.0 | 100.0 | 100.0 | 100.0 D-391 108 260 7.587 EN 10270-1 1405.759 74.71 185.29 90.3 | 86.2 | 94.8 | 89.8 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 83.5 | 75.9 | 91.3 | 83.2 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 73.6 | 81.9 | 63.8 | 75.0 D-416 135 315 9.484 EN 10270-1 2101.663 93.39 221.61 84.7 | 89.2 | 84.9 | 80.1 D-414D-10 135 185 9.547 EN 10270-1 1175.116 61.91 123.09 79.0 | 87.6 | 77.9 | 71.4 D-462 150 330 10.098 EN 10270-1 2291.813 103.04 226.96 88.4 | 90.4 | 89.4 | 85.3 D-512 165 350 10.724 EN 10270-1 2544.866 112.69 237.31 90.9 | 86.9 | 95.2 | 90.5 D-415 135 205 14.903 EN 10270-1 2061.019 66.7 138.3 66.8 | 86.9 | 67.8 | 45.7 D-460 150 210 15.868 EN 10270-1 2164.868 73.57 136.43 65.6 | 88.2 | 65.8 | 42.9 D-510 165 230 16.852 EN 10270-1 2520.354 80.44 149.56 63.7 | 85.5 | 65.1 | 40.4 D-472 125 250 18.305 EN 10270-1 2776.868 98.3 151.7 78.6 | 88.9 | 82.1 | 64.7 D-421 110 230 18.523 EN 10270-1 2616.335 88.75 141.25 61.1 | 84.6 | 61.9 | 36.8 D-520 135 280 20.64 EN 10270-1 3570.736 107 173 73.2 | 86.3 | 75.8 | 57.4 D-426A 90 230 20.945 EN 10270-1 2018.65 133.62 96.38 56.7 | 80.2 | 57.4 | 32.5 D-427 90 255 23.409 EN 10270-1 3121.326 121.66 133.34 56.0 | 83.2 | 55.8 | 29.1 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-414A Country of origin: DE, German; Compression spring D-414A Product image - Compression springs D-414A QR-Code: Compression spring D-414A
