Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

Scaled prices - Compression spring D-462

Quantity	Single price [EUR]
1	39.1400 EUR
2	31.1800 EUR
3	30.5900 EUR
7	27.6100 EUR
17	25.4600 EUR
37	24.0000 EUR
75	23.1400 EUR
125	23.0080 EUR
175	22.7957 EUR
250	22.4802 EUR
350	22.0368 EUR

Compression spring Buy

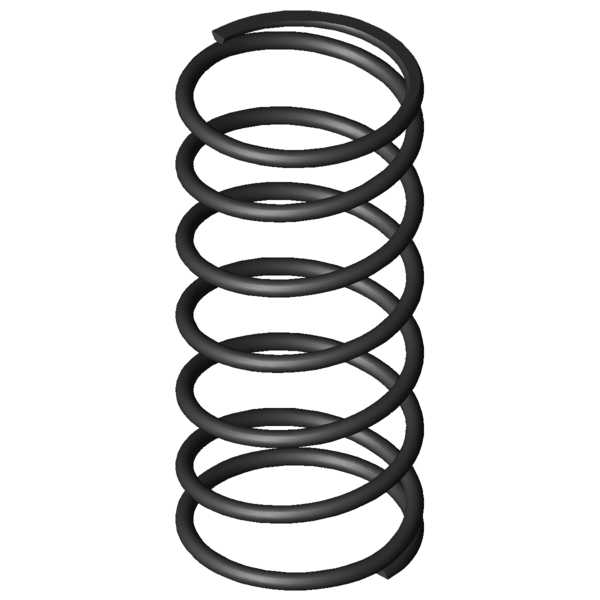

Product image Compression spring D-462

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-462

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	11	mm	Wire diameter
Di		mm	Inner coil diameter
D	139	mm	Mean coil diameter
De	150	mm	Outer coil diameter
Dd		mm	maximum diameter of mandrel
Dh		mm	minimum diameter of bush
L0	330	mm	unstressed spring length
Lk		mm	buckling length
Fn	2291.813	N	maximum force in static use
Ln	103.04	mm	Minimum length in static use
sn	226.96	mm	Maximum spring deflection in static use
Fndyn		N	maximum force in dynamic use
Lndyn		mm	Minimum length in dynamic use
shdyn		mm	Maximum stroke in dynamic use
S	58	mm	pitch of spring
n	5.5	pc.	number of active coils
nt		pc.	total number of coils
R	10.098	N/mm	Spring rate
Weight	2460.2636	g	weight of one spring
Fntol	125	N	(+/-) tolerance of maximum force in static use
Fndtol		N	(+/-) tolerance of maximum dynamic force
Detol	2.3	mm	(+/-) tolerances of outer coil diameter
L0tol	9	mm	(+/-) tolerance of unstressed spring length
Price group	BE	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

force-path-calculation Compression spring D-462

Inquiry formular Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

Inquiry formular Compression spring D-462

Similar compression springs to Compression spring D-462 Spring steel Ø 11 x 139 x 330 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-462	EN 10270-1	11	150	330	2291.813	103.04	226.96	5.5	10.098	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-389C	120	331	3.082	EN 10270-1	800.143	71.4	259.6	57.6 \| 81.1 \| 61.2 \| 30.5
D-367	86.3	355	3.688	EN 10270-1	967.989	92.5	262.5	56.7 \| 69.3 \| 64.3 \| 36.5
D-414D-14	135	425	3.931	EN 10270-1	1180.726	124.64	300.36	73.1 \| 76.7 \| 54.0 \| 88.5
D-414B	150	389	4.335	EN 10270-1	1293.327	90.67	298.33	77.4 \| 78.4 \| 56.3 \| 97.6
D-392	108	390	4.909	EN 10270-1	1390.586	106.74	283.26	65.2 \| 76.4 \| 70.4 \| 48.6
D-414D-24	120	390	5.75	EN 10270-1	1554.735	119.6	270.4	71.7 \| 82.1 \| 75.9 \| 56.9
D-414D-12	135	280	6.075	EN 10270-1	1172.521	87	193	71.3 \| 85.6 \| 68.1 \| 60.2
D-394C	98	285	6.734	EN 10270-1	1199.3	106.9	178.1	69.0 \| 74.8 \| 65.4 \| 66.7
D-414A	150	254	6.813	EN 10270-1	1292.708	64.25	189.75	74.6 \| 86.3 \| 70.0 \| 67.5
D-391	108	260	7.587	EN 10270-1	1405.759	74.71	185.29	73.7 \| 74.5 \| 71.5 \| 75.1
D-399D	81	345	7.946	EN 10270-1	1562.981	148.29	196.71	76.7 \| 74.1 \| 77.4 \| 78.7
D-414D-22	120	255	8.886	EN 10270-1	1521.815	83.74	171.26	79.5 \| 79.7 \| 70.9 \| 88.0
D-414G	100	332	9.337	EN 10270-1	1931.173	125.16	206.84	87.6 \| 82.6 \| 87.7 \| 92.5
D-416	135	315	9.484	EN 10270-1	2101.663	93.39	221.61	93.6 \| 92.1 \| 94.7 \| 93.9
D-462	150	330	10.098	EN 10270-1	2291.813	103.04	226.96	100.0 \| 100.0 \| 100.0 \| 100.0
D-512	165	350	10.724	EN 10270-1	2544.866	112.69	237.31	93.1 \| 92.3 \| 92.8 \| 94.2
D-474	125	375	11.844	EN 10270-1	2784.406	139.91	235.09	88.4 \| 90.4 \| 89.4 \| 85.3
D-422	110	345	11.985	EN 10270-1	2621.783	126.25	218.75	87.6 \| 86.6 \| 91.9 \| 84.3
D-522	135	420	13.355	EN 10270-1	3575.592	152.27	267.73	78.9 \| 86.7 \| 74.4 \| 75.6
D-415	135	205	14.903	EN 10270-1	2061.019	66.7	138.3	74.7 \| 81.0 \| 75.4 \| 67.8
D-460	150	210	15.868	EN 10270-1	2164.868	73.57	136.43	76.3 \| 87.9 \| 77.3 \| 63.6
D-428	90	370	15.918	EN 10270-1	3191.553	169.5	200.5	74.5 \| 80.0 \| 80.1 \| 63.4
D-510	165	230	16.852	EN 10270-1	2520.354	80.44	149.56	74.1 \| 84.1 \| 78.4 \| 59.9
D-472	125	250	18.305	EN 10270-1	2776.868	98.3	151.7	72.1 \| 86.4 \| 74.7 \| 55.2
D-520	135	280	20.64	EN 10270-1	3570.736	107	173	69.3 \| 88.8 \| 70.2 \| 48.9
D-484	100	290	24.891	EN 10270-1	3882.284	134.03	155.97	63.1 \| 84.8 \| 63.9 \| 40.6
D-532	110	300	26.406	EN 10270-1	4055.782	146.4	153.6	61.9 \| 85.3 \| 62.1 \| 38.2
D-544	80	320	53.747	EN 10270-1	6652.56	196.23	123.78	48.0 \| 80.7 \| 44.5 \| 18.8

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-462

Country of origin: DE, German; Compression spring D-462
