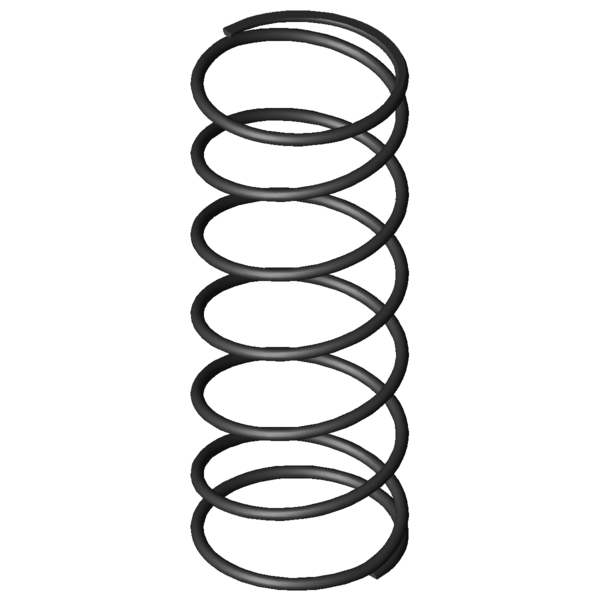

Home » Products » Compression springs » d-414b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm Scaled prices - Compression spring D-414B Quantity Single price [EUR] 1 20.4700 EUR 2 16.3100 EUR 3 13.5600 EUR 7 11.6800 EUR 17 10.4200 EUR 37 9.2500 EUR 75 9.0900 EUR 125 9.1129 EUR 175 8.9972 EUR 250 8.7744 EUR 350 8.4586 EUR Compression spring Buy Product image Compression spring D-414B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-414B Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 9 mm Wire diameter Di mm Inner coil diameter D 141 mm Mean coil diameter De 150 mm Outer coil diameter Dd 128 mm maximum diameter of mandrel Dh 156.2 mm minimum diameter of bush L0 389 mm unstressed spring length Lk mm buckling length Fn 1293.327 N maximum force in static use Ln 90.67 mm Minimum length in static use sn 298.33 mm Maximum spring deflection in static use Fndyn 1243.1 N maximum force in dynamic use Lndyn 102.26 mm Minimum length in dynamic use shdyn 120.11 mm Maximum stroke in dynamic use S 69.091 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 4.335 N/mm Spring rate Weight 1670.6505 g weight of one spring Fntol 80.7 N (+/-) tolerance of maximum force in static use Fndtol 80 N (+/-) tolerance of maximum dynamic force Detol 2.7 mm (+/-) tolerances of outer coil diameter L0tol 14.16 mm (+/-) tolerance of unstressed spring length Price group BA - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm Datasheet download pdf file Metal spring characteristic Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm Metal spring characteristic download pdf file CAD data Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm force-path-calculation Compression spring D-414B Inquiry formular Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm Inquiry formular Compression spring D-414B Similar compression springs to Compression spring D-414B Spring steel Ø 9 x 141 x 389 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-414B EN 10270-1 9 150 389 1293.327 90.67 298.33 5.5 4.335 62.1 | 87.2 | 62.6 | 36.6 VD-414B 1.4310 9 150 389 1110.833 90.67 298.33 5.5 3.724 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-52 115 465 1.199 EN 10270-1 445.771 93.35 371.65 53.6 | 75.7 | 57.4 | 27.7 D-364R-51 115 300 1.854 EN 10270-1 436.285 64.64 235.36 53.5 | 76.0 | 57.2 | 27.2 D-367A 86.3 365 2.322 EN 10270-1 553.225 126.73 238.27 62.9 | 73.8 | 61.3 | 53.6 D-389E-14 105 350 3.057 EN 10270-1 773.724 96.94 253.06 74.0 | 79.3 | 72.3 | 70.5 D-389C 120 331 3.082 EN 10270-1 800.143 71.4 259.6 63.6 | 78.2 | 67.5 | 45.2 D-414D-16 135 515 3.182 EN 10270-1 1162.387 149.73 365.27 82.6 | 88.5 | 85.8 | 73.4 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 80.2 | 79.0 | 79.8 | 81.9 D-414D-14 135 425 3.931 EN 10270-1 1180.726 124.64 300.36 60.4 | 87.5 | 60.3 | 33.2 D-414B 150 389 4.335 EN 10270-1 1293.327 90.67 298.33 62.1 | 87.2 | 62.6 | 36.6 D-394D 98 400 4.579 EN 10270-1 1167 145 255 62.4 | 81.6 | 67.1 | 38.6 D-414D-26 120 460 4.655 EN 10270-1 1473.124 143.51 316.49 63.1 | 86.4 | 63.6 | 39.3 D-392 108 390 4.909 EN 10270-1 1390.586 106.74 283.26 64.3 | 85.1 | 66.5 | 41.4 D-414D-24 120 390 5.75 EN 10270-1 1554.735 119.6 270.4 70.4 | 91.3 | 71.4 | 48.5 D-414D-12 135 280 6.075 EN 10270-1 1172.521 87 193 65.5 | 83.0 | 62.1 | 51.3 D-417 135 475 6.136 EN 10270-1 2096.084 133.42 341.58 70.4 | 87.5 | 72.1 | 51.8 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 69.5 | 78.2 | 75.2 | 55.0 D-464 150 504 6.534 EN 10270-1 2331.017 147.24 356.76 74.1 | 86.3 | 69.6 | 66.4 D-414A 150 254 6.813 EN 10270-1 1292.708 64.25 189.75 100.0 | 100.0 | 100.0 | 100.0 D-414G 100 332 9.337 EN 10270-1 1931.173 125.16 206.84 80.3 | 83.5 | 78.7 | 78.8 D-416 135 315 9.484 EN 10270-1 2101.663 93.39 221.61 84.7 | 89.2 | 84.9 | 80.1 D-462 150 330 10.098 EN 10270-1 2291.813 103.04 226.96 88.4 | 90.4 | 89.4 | 85.3 D-512 165 350 10.724 EN 10270-1 2544.866 112.69 237.31 90.9 | 86.9 | 95.2 | 90.5 D-474 125 375 11.844 EN 10270-1 2784.406 139.91 235.09 100.0 | 100.0 | 100.0 | 100.0 D-422 110 345 11.985 EN 10270-1 2621.783 126.25 218.75 94.2 | 90.3 | 93.6 | 98.8 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-414B Country of origin: DE, German; Compression spring D-414B Product image - Compression springs D-414B QR-Code: Compression spring D-414B
