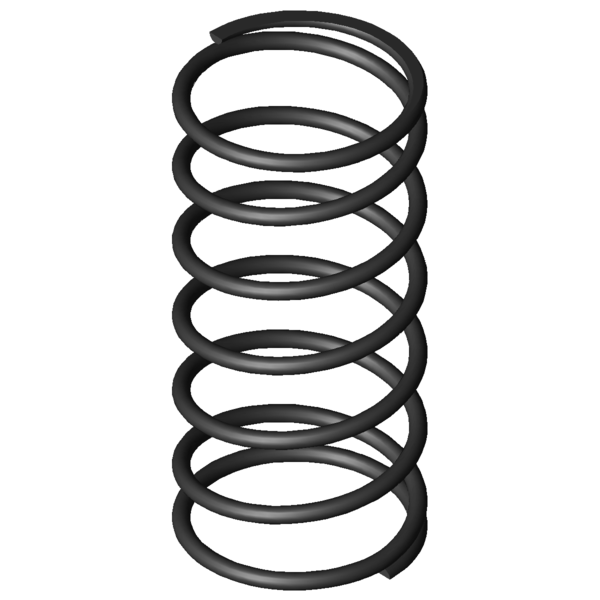

Home » Products » Compression springs » d-512 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm Scaled prices - Compression spring D-512 Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 30.2500 EUR 37 27.4500 EUR 75 26.9000 EUR 125 26.8590 EUR 175 26.7340 EUR 250 26.6504 EUR 350 26.2023 EUR Compression spring Buy Product image Compression spring D-512 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-512 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 12 mm Wire diameter Di mm Inner coil diameter D 153 mm Mean coil diameter De 165 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 350 mm unstressed spring length Lk mm buckling length Fn 2544.866 N maximum force in static use Ln 112.69 mm Minimum length in static use sn 237.31 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 61.455 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 10.724 N/mm Spring rate Weight 3222.8151 g weight of one spring Fntol 143 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 2.3 mm (+/-) tolerances of outer coil diameter L0tol 9.82 mm (+/-) tolerance of unstressed spring length Price group BF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm Datasheet download pdf file Metal spring characteristic Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm Metal spring characteristic download pdf file CAD data Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm force-path-calculation Compression spring D-512 Inquiry formular Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm Inquiry formular Compression spring D-512 Similar compression springs to Compression spring D-512 Spring steel Ø 12 x 153 x 350 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-512 EN 10270-1 12 165 350 2544.866 112.69 237.31 5.5 10.724 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-414D-14 135 425 3.931 EN 10270-1 1180.726 124.64 300.36 59.7 | 79.7 | 62.7 | 36.7 D-414B 150 389 4.335 EN 10270-1 1293.327 90.67 298.33 63.6 | 85.3 | 65.2 | 40.4 D-394D 98 400 4.579 EN 10270-1 1167 145 255 61.1 | 71.2 | 69.5 | 42.7 D-392 108 390 4.909 EN 10270-1 1390.586 106.74 283.26 63.0 | 74.0 | 69.2 | 45.8 D-414D-24 120 390 5.75 EN 10270-1 1554.735 119.6 270.4 69.1 | 79.2 | 74.4 | 53.6 D-414D-12 135 280 6.075 EN 10270-1 1172.521 87 193 66.4 | 78.9 | 63.7 | 56.7 D-417 135 475 6.136 EN 10270-1 2096.084 133.42 341.58 70.9 | 79.6 | 75.9 | 57.2 D-464 150 504 6.534 EN 10270-1 2331.017 147.24 356.76 74.7 | 84.0 | 79.1 | 60.9 D-414A 150 254 6.813 EN 10270-1 1292.708 64.25 189.75 69.5 | 79.5 | 65.4 | 63.5 D-399D 81 345 7.946 EN 10270-1 1562.981 148.29 196.71 72.6 | 71.4 | 72.2 | 74.1 D-414D-22 120 255 8.886 EN 10270-1 1521.815 83.74 171.26 74.1 | 73.5 | 66.0 | 82.9 D-414G 100 332 9.337 EN 10270-1 1931.173 125.16 206.84 81.8 | 76.8 | 81.5 | 87.1 D-416 135 315 9.484 EN 10270-1 2101.663 93.39 221.61 76.0 | 86.1 | 70.8 | 71.0 D-462 150 330 10.098 EN 10270-1 2291.813 103.04 226.96 78.9 | 86.7 | 74.4 | 75.6 D-512 165 350 10.724 EN 10270-1 2544.866 112.69 237.31 82.9 | 88.4 | 79.9 | 80.3 D-474 125 375 11.844 EN 10270-1 2784.406 139.91 235.09 87.6 | 91.2 | 82.8 | 88.7 D-422 110 345 11.985 EN 10270-1 2621.783 126.25 218.75 83.2 | 82.3 | 77.5 | 89.7 D-522 135 420 13.355 EN 10270-1 3575.592 152.27 267.73 100.0 | 100.0 | 100.0 | 100.0 D-460 150 210 15.868 EN 10270-1 2164.868 73.57 136.43 69.4 | 89.1 | 70.2 | 48.9 D-428 90 370 15.918 EN 10270-1 3191.553 169.5 200.5 75.7 | 77.5 | 82.1 | 67.4 D-510 165 230 16.852 EN 10270-1 2520.354 80.44 149.56 70.3 | 86.7 | 72.1 | 52.0 D-472 125 250 18.305 EN 10270-1 2776.868 98.3 151.7 72.5 | 85.4 | 75.5 | 56.4 D-520 135 280 20.64 EN 10270-1 3570.736 107 173 78.6 | 88.9 | 82.2 | 64.7 D-484 100 290 24.891 EN 10270-1 3882.284 134.03 155.97 62.4 | 78.4 | 65.6 | 43.1 D-532 110 300 26.406 EN 10270-1 4055.782 146.4 153.6 62.8 | 84.1 | 63.7 | 40.6 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-512 Country of origin: DE, German; Compression spring D-512 Product image - Compression springs D-512 QR-Code: Compression spring D-512
