Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

Scaled prices - Compression spring D-414D-10

Quantity	Single price [EUR]
1	17.9400 EUR
2	14.2900 EUR
3	10.3300 EUR
7	8.7500 EUR
17	8.7500 EUR
37	8.7500 EUR
75	8.7500 EUR
125	8.7500 EUR
175	8.7500 EUR
250	8.7500 EUR
350	8.7500 EUR

Compression spring Buy

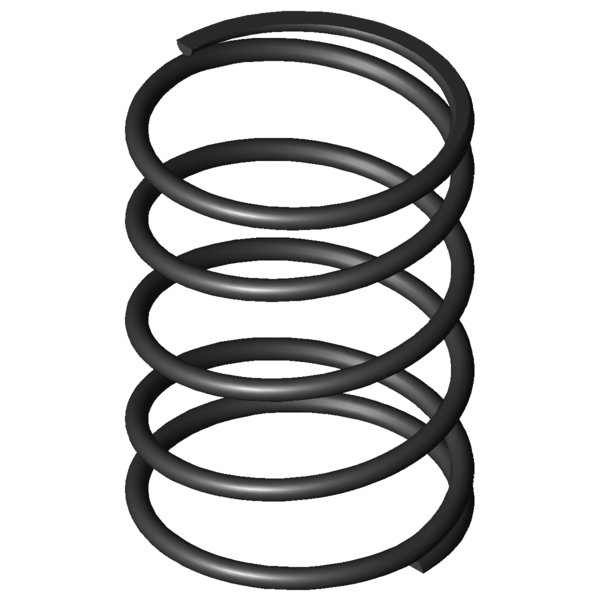

Product image Compression spring D-414D-10

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-414D-10

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	9	mm	Wire diameter
Di		mm	Inner coil diameter
D	126	mm	Mean coil diameter
De	135	mm	Outer coil diameter
Dd	114.5	mm	maximum diameter of mandrel
Dh	138.7	mm	minimum diameter of bush
L0	185	mm	unstressed spring length
Lk		mm	buckling length
Fn	1175.116	N	maximum force in static use
Ln	61.91	mm	Minimum length in static use
sn	123.09	mm	Maximum spring deflection in static use
Fndyn	1115.067	N	maximum force in dynamic use
Lndyn	68.2	mm	Minimum length in dynamic use
shdyn	75.5	mm	Maximum stroke in dynamic use
S	50.286	mm	pitch of spring
n	3.5	pc.	number of active coils
nt		pc.	total number of coils
R	9.547	N/mm	Spring rate
Weight	1094.8092	g	weight of one spring
Fntol	89.4	N	(+/-) tolerance of maximum force in static use
Fndtol	88.5	N	(+/-) tolerance of maximum dynamic force
Detol	2.3	mm	(+/-) tolerances of outer coil diameter
L0tol	7.5	mm	(+/-) tolerance of unstressed spring length
Price group	###AW	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

force-path-calculation Compression spring D-414D-10

Inquiry formular Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

Inquiry formular Compression spring D-414D-10

Similar compression springs to Compression spring D-414D-10 Spring steel Ø 9 x 126 x 185 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-414D-10	EN 10270-1	9	135	185	1175.116	61.91	123.09	3.5	9.547	100.0 \| 100.0 \| 100.0 \| 100.0
VD-414D-10	1.4310	9	135	185	1008.974	61.95	123.05	3.5	8.2	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-364R-58	90	210	2.621	EN 10270-1	332.592	83.09	126.91	54.6 \| 73.8 \| 62.6 \| 27.5
D-364R-50	115	196	2.913	EN 10270-1	438.403	45.5	150.5	57.4 \| 82.1 \| 59.5 \| 30.5
D-339Z-02	75	178	3.375	EN 10270-1	437.637	48.34	129.67	56.8 \| 69.1 \| 66.1 \| 35.4
D-339W	85	164	3.553	EN 10270-1	454.906	35.97	128.03	57.9 \| 69.1 \| 67.4 \| 37.2
D-364B	95	181	3.715	EN 10270-1	524.507	39.82	141.18	60.4 \| 76.4 \| 65.9 \| 38.9
D-364R-57	90	165	4.05	EN 10270-1	433.367	58	107	59.5 \| 74.2 \| 61.9 \| 42.4
D-389E-12	105	230	4.725	EN 10270-1	767.039	67.67	162.33	66.2 \| 78.7 \| 70.6 \| 49.5
D-364S	105	180	4.769	EN 10270-1	643.918	44.97	135.03	68.2 \| 81.7 \| 73.0 \| 50.0
D-389B	120	216	4.843	EN 10270-1	801.464	50.53	165.47	68.7 \| 84.1 \| 71.3 \| 50.7
D-414A	150	254	6.813	EN 10270-1	1292.708	64.25	189.75	79.0 \| 87.6 \| 77.9 \| 71.4
D-389E-10	105	145	7.425	EN 10270-1	719.139	48.15	96.85	75.2 \| 78.0 \| 69.9 \| 77.8
D-389E-22	89	190	8.066	EN 10270-1	1014.132	64.27	125.73	85.6 \| 80.4 \| 92.1 \| 84.5
D-414D-10	135	185	9.547	EN 10270-1	1175.116	61.91	123.09	100.0 \| 100.0 \| 100.0 \| 100.0
D-394B	98	185	10.407	EN 10270-1	1167.7	72.8	112.2	91.4 \| 87.2 \| 95.3 \| 91.7
D-390	108	170	11.922	EN 10270-1	1390.586	53.36	116.64	85.5 \| 86.9 \| 89.6 \| 80.1
D-414D-20	120	170	13.964	EN 10270-1	1538.242	59.84	110.16	81.6 \| 93.6 \| 82.9 \| 68.4
D-396	88	180	14.818	EN 10270-1	1615.182	71	109	76.3 \| 83.8 \| 80.7 \| 64.4
D-415	135	205	14.903	EN 10270-1	2061.019	66.7	138.3	76.8 \| 93.4 \| 73.0 \| 64.1
D-460	150	210	15.868	EN 10270-1	2164.868	73.57	136.43	73.0 \| 86.6 \| 72.3 \| 60.2
D-414F	100	200	16.127	EN 10270-1	1934.568	80.04	119.96	75.7 \| 88.9 \| 79.1 \| 59.2
D-510	165	230	16.852	EN 10270-1	2520.354	80.44	149.56	66.7 \| 79.1 \| 64.5 \| 56.7
D-472	125	250	18.305	EN 10270-1	2776.868	98.3	151.7	65.6 \| 82.8 \| 61.7 \| 52.2
D-421	110	230	18.523	EN 10270-1	2616.335	88.75	141.25	67.2 \| 84.0 \| 66.0 \| 51.5
D-470	125	160	28.764	EN 10270-1	2572.902	70.55	89.45	59.8 \| 87.0 \| 59.2 \| 33.2
D-420	110	150	29.107	EN 10270-1	2510.491	63.75	86.25	58.5 \| 84.2 \| 58.4 \| 32.8
D-518	135	180	32.435	EN 10270-1	3346.642	76.82	103.18	59.9 \| 90.8 \| 59.5 \| 29.4
D-426	90	175	36.177	EN 10270-1	3227.73	85.78	89.22	54.9 \| 83.8 \| 54.4 \| 26.4
D-482	100	200	38.469	EN 10270-1	4039.196	95	105	54.9 \| 82.8 \| 57.2 \| 24.8

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-414D-10
