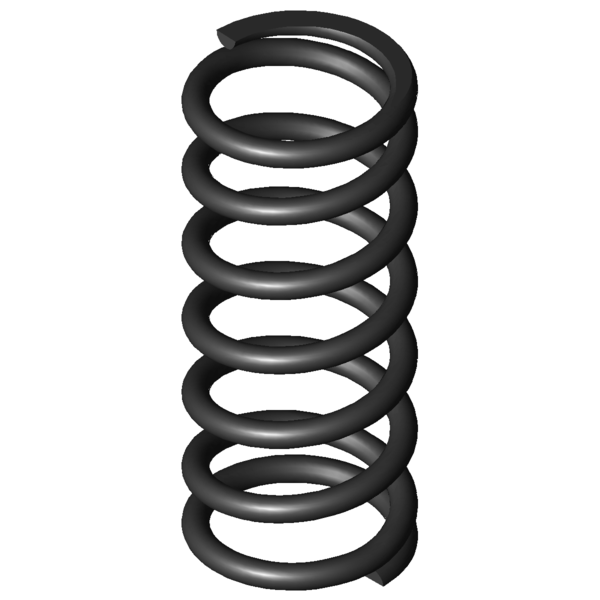

Home » Products » Compression springs » d-429a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm Scaled prices - Compression spring D-429A Quantity Single price [EUR] 1 19.3600 EUR 2 15.4300 EUR 3 12.4800 EUR 7 10.6000 EUR 17 9.3700 EUR 37 8.2100 EUR 75 8.1200 EUR 125 8.1294 EUR 175 8.0396 EUR 250 7.8127 EUR 350 7.5650 EUR Compression spring Buy Product image Compression spring D-429A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-429A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 10 mm Wire diameter Di mm Inner coil diameter D 74 mm Mean coil diameter De 84 mm Outer coil diameter Dd 62 mm maximum diameter of mandrel Dh 86.8 mm minimum diameter of bush L0 200 mm unstressed spring length Lk mm buckling length Fn 3739.066 N maximum force in static use Ln 118.2 mm Minimum length in static use sn 81.8 mm Maximum spring deflection in static use Fndyn 3153.979 N maximum force in dynamic use Lndyn 131 mm Minimum length in dynamic use shdyn 21.02 mm Maximum stroke in dynamic use S 34.545 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 45.71 N/mm Spring rate Weight 1082.4633 g weight of one spring Fntol 188 N (+/-) tolerance of maximum force in static use Fndtol 178 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 2.75 mm (+/-) tolerance of unstressed spring length Price group AZ - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm Datasheet download pdf file Metal spring characteristic Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm Metal spring characteristic download pdf file CAD data Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm force-path-calculation Compression spring D-429A Inquiry formular Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm Inquiry formular Compression spring D-429A Similar compression springs to Compression spring D-429A Spring steel Ø 10 x 74 x 200 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-429A EN 10270-1 10 84 200 3739.066 118.2 81.8 5.5 45.71 100.0 | 100.0 | 100.0 | 100.0 VD-429A 1.4310 10 84 200 3344.951 114.8 85.2 5.5 39.26 92.9 | 100.0 | 92.7 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364R-62 77 230 4.34 EN 10270-1 656.139 78.81 151.19 41.6 | 79.5 | 35.8 | 9.5 D-341 68 180 4.63 EN 10270-1 616.696 46.8 133.2 40.9 | 73.7 | 39.0 | 10.1 D-369E 78.3 210 5.058 EN 10270-1 647.476 82 128 45.2 | 83.8 | 40.6 | 11.1 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 44.6 | 83.7 | 37.7 | 12.5 D-369D 78.3 165 7.818 EN 10270-1 840.385 57.5 107.5 48.7 | 79.6 | 49.3 | 17.1 D-389E-22 89 190 8.066 EN 10270-1 1014.132 64.27 125.73 50.1 | 86.5 | 46.1 | 17.6 D-394B 98 185 10.407 EN 10270-1 1167.7 72.8 112.2 53.6 | 86.1 | 52.1 | 22.8 D-399C 81 220 12.619 EN 10270-1 1523.253 99.29 120.71 57.0 | 89.1 | 54.3 | 27.6 D-396 88 180 14.818 EN 10270-1 1615.182 71 109 60.0 | 88.5 | 59.1 | 32.4 D-414F 100 200 16.127 EN 10270-1 1934.568 80.04 119.96 62.2 | 91.3 | 60.0 | 35.3 D-402 71 205 19.633 EN 10270-1 2117.9 97.13 107.87 65.5 | 87.4 | 66.2 | 43.0 D-426A 90 230 20.945 EN 10270-1 2018.65 133.62 96.38 69.6 | 93.4 | 69.4 | 45.8 D-426 90 175 36.177 EN 10270-1 3227.73 85.78 89.22 87.3 | 93.6 | 89.0 | 79.1 D-482 100 200 38.469 EN 10270-1 4039.196 95 105 87.0 | 91.6 | 85.2 | 84.2 D-429A 84 200 45.71 EN 10270-1 3739.066 118.2 81.8 100.0 | 100.0 | 100.0 | 100.0 D-432 73 200 47.932 EN 10270-1 3903.573 118.56 81.44 96.2 | 95.6 | 97.7 | 95.4 D-494 75 210 66.939 EN 10270-1 5382.057 129.6 80.4 81.3 | 91.8 | 83.9 | 68.3 D-542 80 220 79.04 EN 10270-1 6235.229 141.11 78.89 75.3 | 89.8 | 78.2 | 57.8 D-552 75 200 99.392 EN 10270-1 5922.076 140.42 59.58 68.3 | 90.9 | 68.0 | 46.0 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-429A Country of origin: DE, German; Compression spring D-429A Product image - Compression springs D-429A QR-Code: Compression spring D-429A
