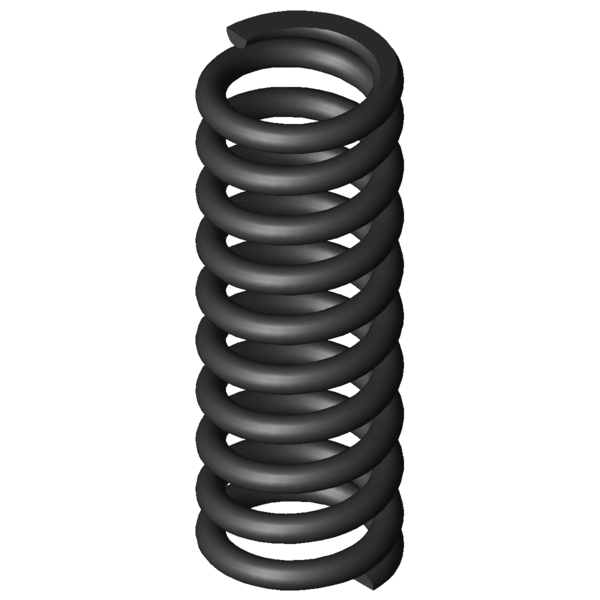

Home » Products » Compression springs » d-494 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm Scaled prices - Compression spring D-494 Quantity Single price [EUR] 1 39.1400 EUR 2 31.1800 EUR 3 30.5900 EUR 7 27.6100 EUR 17 25.4600 EUR 37 24.0000 EUR 75 23.1400 EUR 125 23.0080 EUR 175 22.7957 EUR 250 22.4802 EUR 350 22.0368 EUR Compression spring Buy Product image Compression spring D-494 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-494 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 11 mm Wire diameter Di mm Inner coil diameter D 64 mm Mean coil diameter De 75 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 210 mm unstressed spring length Lk mm buckling length Fn 5382.057 N maximum force in static use Ln 129.6 mm Minimum length in static use sn 80.4 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 23.412 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 66.939 N/mm Spring rate Weight 1585.8965 g weight of one spring Fntol 291 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 3.13 mm (+/-) tolerance of unstressed spring length Price group BE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm Datasheet download pdf file Metal spring characteristic Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm Metal spring characteristic download pdf file CAD data Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm force-path-calculation Compression spring D-494 Inquiry formular Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm Inquiry formular Compression spring D-494 Similar compression springs to Compression spring D-494 Spring steel Ø 11 x 64 x 210 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-494 EN 10270-1 11 75 210 5382.057 129.6 80.4 8.5 66.939 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-369E 78.3 210 5.058 EN 10270-1 647.476 82 128 43.1 | 84.4 | 37.4 | 7.6 D-366 86.3 220 5.699 EN 10270-1 916.989 59.1 160.9 40.6 | 79.9 | 33.5 | 8.5 D-364H 60 213 6.062 EN 10270-1 829.439 76.17 136.83 40.8 | 76.2 | 37.1 | 9.1 D-372 69.3 235 7.551 EN 10270-1 1173.856 79.54 155.46 42.6 | 79.7 | 36.8 | 11.3 D-369D 78.3 165 7.818 EN 10270-1 840.385 57.5 107.5 44.7 | 77.2 | 45.2 | 11.7 D-389E-22 89 190 8.066 EN 10270-1 1014.132 64.27 125.73 44.3 | 79.5 | 41.4 | 12.0 D-389H 75 254 8.189 EN 10270-1 1289.187 96.56 157.44 43.9 | 82.1 | 37.5 | 12.2 D-377A 56.3 217 9.51 EN 10270-1 977.729 114.19 102.81 46.3 | 76.4 | 48.2 | 14.2 D-399C 81 220 12.619 EN 10270-1 1523.253 99.29 120.71 51.1 | 86.9 | 47.5 | 18.9 D-389G 75 153 14.144 EN 10270-1 1289.931 61.8 91.2 52.0 | 78.8 | 56.1 | 21.1 D-402 71 205 19.633 EN 10270-1 2117.9 97.13 107.87 58.2 | 88.3 | 56.9 | 29.3 D-426A 90 230 20.945 EN 10270-1 2018.65 133.62 96.38 60.1 | 88.5 | 60.5 | 31.3 D-429A 84 200 45.71 EN 10270-1 3739.066 118.2 81.8 81.3 | 91.8 | 83.9 | 68.3 D-432 73 200 47.932 EN 10270-1 3903.573 118.56 81.44 83.9 | 94.5 | 85.6 | 71.6 D-494 75 210 66.939 EN 10270-1 5382.057 129.6 80.4 100.0 | 100.0 | 100.0 | 100.0 D-542 80 220 79.04 EN 10270-1 6235.229 141.11 78.89 90.2 | 93.6 | 92.2 | 84.7 D-552 75 200 99.392 EN 10270-1 5922.076 140.42 59.58 81.8 | 95.6 | 82.5 | 67.3 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-494 Country of origin: DE, German; Compression spring D-494 Product image - Compression springs D-494 QR-Code: Compression spring D-494
