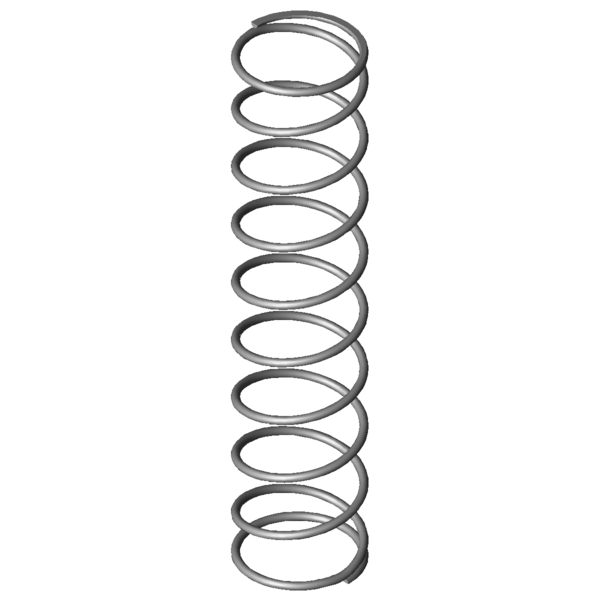

Home » Products » Compression springs » vd-117p Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm Scaled prices - Compression spring VD-117P Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring VD-117P Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-117P Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 11.2 mm Mean coil diameter De 12 mm Outer coil diameter Dd 9.8 mm maximum diameter of mandrel Dh 12.9 mm minimum diameter of bush L0 54 mm unstressed spring length Lk mm buckling length Fn 12.881 N maximum force in static use Ln 11.08 mm Minimum length in static use sn 42.92 mm Maximum spring deflection in static use Fndyn 12.479 N maximum force in dynamic use Lndyn 12.42 mm Minimum length in dynamic use shdyn 12.48 mm Maximum stroke in dynamic use S 6.259 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 0.3 N/mm Spring rate Weight 1.4679 g weight of one spring Fntol 1.13 N (+/-) tolerance of maximum force in static use Fndtol 1.5 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.13 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm Metal spring characteristic download pdf file CAD data Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm force-path-calculation Compression spring VD-117P Inquiry formular Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm Inquiry formular Compression spring VD-117P Similar compression springs to Compression spring VD-117P Stainless steel Ø 0.8 x 11.2 x 54 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-117P 1.4310 0.8 12 54 12.881 11.08 42.92 8.5 0.3 100.0 | 100.0 | 100.0 | 100.0 D-117P EN 10270-1 0.8 12 54 14.998 11.08 42.92 8.5 0.349 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-063H-13 11.5 49.4 0.033 1.4310 1.216 12.41 36.99 47.3 | 83.3 | 47.8 | 11.0 VD-090U-14 10.6 53 0.073 1.4310 2.758 15.31 37.7 55.4 | 87.2 | 54.6 | 24.4 VD-115F 12 50 0.265 1.4310 11.346 7.14 42.86 91.8 | 93.4 | 94.0 | 88.2 VD-117P 12 54 0.3 1.4310 12.881 11.08 42.92 100.0 | 100.0 | 100.0 | 100.0 VD-154A 11 56 0.473 1.4310 14.603 25.13 30.88 77.6 | 89.4 | 80.1 | 63.5 VD-148 13.5 55.5 0.527 1.4310 22.22 13.34 42.16 74.6 | 88.7 | 78.1 | 56.9 VD-150D 12.5 48 0.677 1.4310 23.665 13.04 34.96 66.9 | 88.3 | 67.9 | 44.3 VD-154 11 56 0.7 1.4310 26.863 17.63 38.38 67.0 | 89.4 | 68.7 | 42.9 VD-158 10.3 55 0.806 1.4310 29.33 18.6 36.4 63.2 | 88.0 | 64.4 | 37.2 VD-153A 11 52 0.921 1.4310 35.115 13.88 38.13 61.6 | 89.3 | 62.8 | 32.6 VD-179M 12 55.9 1.041 1.4310 42.345 15.23 40.67 60.4 | 89.8 | 62.6 | 28.8 VD-180P 13 57.7 1.162 1.4310 47.783 16.59 41.11 57.1 | 84.2 | 61.4 | 25.8 VD-207AD 11 54 2.62 1.4310 71.894 26.56 27.44 45.1 | 82.9 | 40.9 | 11.5 VD-207KD 12.5 55.8 2.662 1.4310 81.638 25.14 30.66 45.6 | 82.0 | 43.6 | 11.3 VD-207K-02 12 55 3.061 1.4310 91.827 25 30 45.2 | 83.8 | 42.0 | 9.8 VD-207K-05 11.5 51 3.281 1.4310 79.98 26.63 24.38 42.3 | 81.2 | 36.5 | 9.1 VD-222D 12.7 54 3.354 1.4310 91.762 26.64 27.36 43.1 | 81.5 | 38.9 | 8.9 VD-207K-08 11 55 3.563 1.4310 95.314 28.25 26.75 42.5 | 81.1 | 37.9 | 8.4 VD-227F 11 58.1 4.454 1.4310 117.307 31.76 26.34 40.4 | 78.2 | 36.2 | 6.7 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-117P Country of origin: DE, German; Compression spring VD-117P Product image - Compression springs VD-117P QR-Code: Compression spring VD-117P
