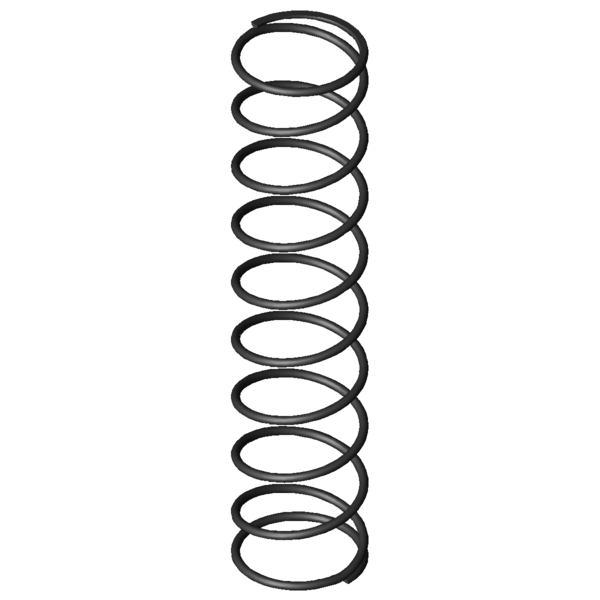

Home » Products » Compression springs » d-117p Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm Scaled prices - Compression spring D-117P Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-117P Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-117P Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 11.2 mm Mean coil diameter De 12 mm Outer coil diameter Dd 9.8 mm maximum diameter of mandrel Dh 12.9 mm minimum diameter of bush L0 54 mm unstressed spring length Lk mm buckling length Fn 14.998 N maximum force in static use Ln 11.08 mm Minimum length in static use sn 42.92 mm Maximum spring deflection in static use Fndyn 14.529 N maximum force in dynamic use Lndyn 12.42 mm Minimum length in dynamic use shdyn 22.32 mm Maximum stroke in dynamic use S 6.259 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 0.349 N/mm Spring rate Weight 1.4679 g weight of one spring Fntol 1.16 N (+/-) tolerance of maximum force in static use Fndtol 1.16 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.69 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm Datasheet download pdf file Metal spring characteristic Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm Metal spring characteristic download pdf file CAD data Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm force-path-calculation Compression spring D-117P Inquiry formular Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm Inquiry formular Compression spring D-117P Similar compression springs to Compression spring D-117P Spring steel Ø 0.8 x 11.2 x 54 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-117P EN 10270-1 0.8 12 54 14.998 11.08 42.92 8.5 0.349 100.0 | 100.0 | 100.0 | 100.0 VD-117P 1.4310 0.8 12 54 12.881 11.08 42.92 8.5 0.3 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063H-13 11.5 49.4 0.038 EN 10270-1 1.416 12.41 36.99 47.3 | 83.3 | 47.8 | 11.0 D-090U-14 10.6 53 0.085 EN 10270-1 3.211 15.31 37.7 55.4 | 87.2 | 54.6 | 24.4 D-115F 12 50 0.308 EN 10270-1 13.21 7.14 42.86 91.8 | 93.4 | 94.0 | 88.2 D-117P 12 54 0.349 EN 10270-1 14.998 11.08 42.92 100.0 | 100.0 | 100.0 | 100.0 D-154A 11 56 0.551 EN 10270-1 17.002 25.13 30.88 77.6 | 89.4 | 80.1 | 63.5 D-148 13.5 55.5 0.614 EN 10270-1 25.87 13.34 42.16 74.6 | 88.7 | 78.1 | 56.9 D-150D 12.5 48 0.788 EN 10270-1 27.553 13.04 34.96 66.9 | 88.3 | 67.9 | 44.3 D-154 11 56 0.815 EN 10270-1 31.276 17.63 38.38 67.0 | 89.4 | 68.7 | 42.9 D-158 10.3 55 0.938 EN 10270-1 34.148 18.6 36.4 63.2 | 88.0 | 64.4 | 37.2 D-153A 11 52 1.072 EN 10270-1 40.884 13.88 38.13 61.6 | 89.3 | 62.8 | 32.6 D-179M 12 55.9 1.212 EN 10270-1 49.302 15.23 40.67 60.4 | 89.8 | 62.6 | 28.8 D-180P 13 57.7 1.353 EN 10270-1 55.633 16.59 41.11 57.1 | 84.2 | 61.4 | 25.8 D-207AD 11 54 3.051 EN 10270-1 83.706 26.56 27.44 45.1 | 82.9 | 40.9 | 11.5 D-207KD 12.5 55.8 3.1 EN 10270-1 95.05 25.14 30.66 45.6 | 82.0 | 43.6 | 11.3 D-207K-02 12 55 3.564 EN 10270-1 106.913 25 30 45.2 | 83.8 | 42.0 | 9.8 D-207K-05 11.5 51 3.82 EN 10270-1 93.12 26.63 24.38 42.3 | 81.2 | 36.5 | 9.1 D-222D 12.7 54 3.905 EN 10270-1 106.837 26.64 27.36 43.1 | 81.5 | 38.9 | 8.9 D-207K-08 11 55 4.149 EN 10270-1 111.056 28.23 26.77 42.5 | 81.1 | 37.9 | 8.4 D-227F 11 58.1 5.186 EN 10270-1 136.579 31.76 26.34 40.4 | 78.2 | 36.2 | 6.7 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-117P Country of origin: DE, German; Compression spring D-117P Product image - Compression springs D-117P QR-Code: Compression spring D-117P
