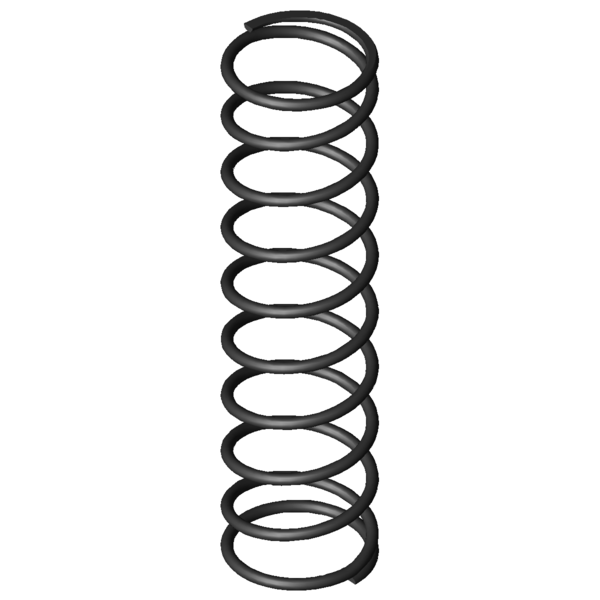

Home » Products » Compression springs » d-150d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm Scaled prices - Compression spring D-150D Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-150D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-150D Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 11.5 mm Mean coil diameter De 12.5 mm Outer coil diameter Dd 10 mm maximum diameter of mandrel Dh 13.3 mm minimum diameter of bush L0 48 mm unstressed spring length Lk mm buckling length Fn 27.553 N maximum force in static use Ln 13.04 mm Minimum length in static use sn 34.96 mm Maximum spring deflection in static use Fndyn 26.549 N maximum force in dynamic use Lndyn 14.31 mm Minimum length in dynamic use shdyn 18.69 mm Maximum stroke in dynamic use S 5.529 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 0.788 N/mm Spring rate Weight 2.3551 g weight of one spring Fntol 1.87 N (+/-) tolerance of maximum force in static use Fndtol 1.86 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.85 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm Datasheet download pdf file Metal spring characteristic Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm Metal spring characteristic download pdf file CAD data Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm force-path-calculation Compression spring D-150D Inquiry formular Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm Inquiry formular Compression spring D-150D Similar compression springs to Compression spring D-150D Spring steel Ø 1 x 11.5 x 48 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-150D EN 10270-1 1 12.5 48 27.553 13.04 34.96 8.5 0.788 100.0 | 100.0 | 100.0 | 100.0 VD-150D 1.4310 1 12.5 48 23.665 13.04 34.96 8.5 0.677 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063H-13 11.5 49.4 0.038 EN 10270-1 1.416 12.41 36.99 38.8 | 76.0 | 39.1 | 1.3 D-115F 12 50 0.308 EN 10270-1 13.21 7.14 42.86 63.7 | 87.3 | 64.8 | 39.1 D-117P 12 54 0.349 EN 10270-1 14.998 11.08 42.92 66.9 | 88.3 | 67.9 | 44.3 D-150D 12.5 48 0.788 EN 10270-1 27.553 13.04 34.96 100.0 | 100.0 | 100.0 | 100.0 D-180O-01 13 41 1.714 EN 10270-1 46.962 13.61 27.39 67.6 | 88.3 | 68.5 | 46.0 D-195A-11 11 46 2.147 EN 10270-1 53.426 21.11 24.89 82.6 | 98.2 | 76.2 | 73.4 D-180Q-03 11 46.7 2.641 EN 10270-1 75.52 18.1 28.6 93.9 | 96.4 | 95.1 | 90.2 D-193 11.25 44.5 2.926 EN 10270-1 82.809 16.2 28.3 100.0 | 100.0 | 100.0 | 100.0 D-207KD 12.5 55.8 3.1 EN 10270-1 95.05 25.14 30.66 56.0 | 84.2 | 58.3 | 25.4 D-207J-36 14 45.6 3.107 EN 10270-1 84.645 18.35 27.25 54.8 | 83.7 | 55.2 | 25.4 D-207K-02 12 55 3.564 EN 10270-1 106.913 25 30 53.7 | 83.3 | 55.8 | 22.1 D-207K-05 11.5 51 3.82 EN 10270-1 93.12 26.63 24.38 84.5 | 89.5 | 87.5 | 76.6 D-222D 12.7 54 3.905 EN 10270-1 106.837 26.64 27.36 51.8 | 83.3 | 52.0 | 20.2 D-222C 12.7 41 5.139 EN 10270-1 102.685 21.02 19.98 46.5 | 82.1 | 42.0 | 15.3 D-227A-06 11.5 51 5.293 EN 10270-1 125.578 27.27 23.73 72.6 | 87.7 | 74.9 | 55.3 D-225A 11.6 53 5.341 EN 10270-1 142.226 26.37 26.63 48.2 | 82.0 | 47.8 | 14.8 D-227A-05 11.5 44 5.734 EN 10270-1 106.523 25.42 18.58 71.4 | 91.6 | 71.7 | 51.0 D-227B 11.2 45 6.562 EN 10270-1 134.957 24.43 20.57 67.9 | 92.2 | 67.0 | 44.6 D-261A 12 55 8.811 EN 10270-1 78.526 46.09 8.91 39.0 | 77.8 | 30.3 | 8.9 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-150D Country of origin: DE, German; Compression spring D-150D Product image - Compression springs D-150D QR-Code: Compression spring D-150D
