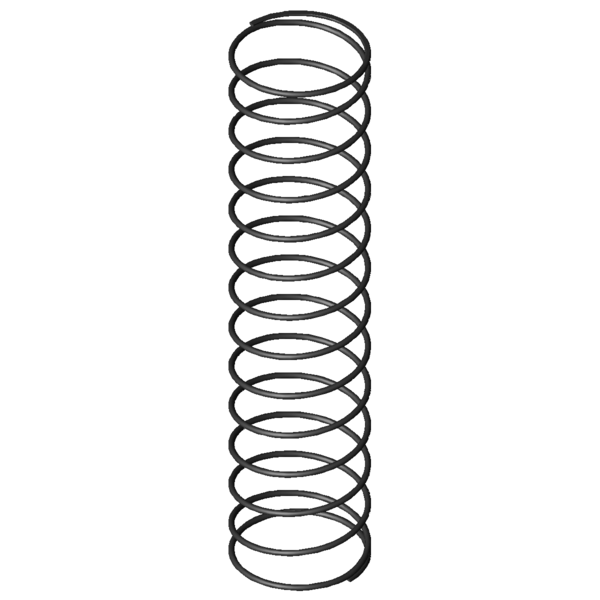

Home » Products » Compression springs » d-063h-13 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm Scaled prices - Compression spring D-063H-13 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-063H-13 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-063H-13 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 11 mm Mean coil diameter De 11.5 mm Outer coil diameter Dd 9.9 mm maximum diameter of mandrel Dh 12.3 mm minimum diameter of bush L0 49.4 mm unstressed spring length Lk mm buckling length Fn 1.416 N maximum force in static use Ln 12.41 mm Minimum length in static use sn 36.99 mm Maximum spring deflection in static use Fndyn 1.317 N maximum force in dynamic use Lndyn 14.99 mm Minimum length in dynamic use shdyn 34.41 mm Maximum stroke in dynamic use S 3.912 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.038 N/mm Spring rate Weight 0.7777 g weight of one spring Fntol 0.38 N (+/-) tolerance of maximum force in static use Fndtol 0.38 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.8 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm Metal spring characteristic download pdf file CAD data Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm force-path-calculation Compression spring D-063H-13 Inquiry formular Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm Inquiry formular Compression spring D-063H-13 Similar compression springs to Compression spring D-063H-13 Spring steel Ø 0.5 x 11 x 49.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-063H-13 EN 10270-1 0.5 11.5 49.4 1.416 12.41 36.99 12.5 0.038 100.0 | 100.0 | 100.0 | 100.0 VD-063H-13 1.4310 0.5 11.5 49.4 1.216 12.41 36.99 12.5 0.033 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063H-13 11.5 49.4 0.038 EN 10270-1 1.416 12.41 36.99 100.0 | 100.0 | 100.0 | 100.0 D-090U-14 10.6 53 0.085 EN 10270-1 3.211 15.31 37.7 68.5 | 89.6 | 71.1 | 44.9 D-115F 12 50 0.308 EN 10270-1 13.21 7.14 42.86 49.9 | 88.7 | 48.5 | 12.4 D-117P 12 54 0.349 EN 10270-1 14.998 11.08 42.92 47.3 | 83.3 | 47.8 | 11.0 D-117H-22 10 49 0.479 EN 10270-1 18.703 9.97 39.03 47.8 | 84.3 | 51.2 | 8.0 D-120 10.8 45.58 0.491 EN 10270-1 17.136 10.67 34.91 47.3 | 82.9 | 51.3 | 7.8 D-150D 12.5 48 0.788 EN 10270-1 27.553 13.04 34.96 44.8 | 79.7 | 49.8 | 4.9 D-143C 10 48 0.934 EN 10270-1 33.13 12.52 35.48 44.7 | 79.9 | 50.1 | 4.1 D-153A 11 52 1.072 EN 10270-1 40.884 13.88 38.13 44.7 | 80.2 | 50.2 | 3.6 D-179M 12 55.9 1.212 EN 10270-1 49.302 15.23 40.67 42.2 | 76.6 | 46.9 | 3.2 D-195A-11 11 46 2.147 EN 10270-1 53.426 21.11 24.89 37.7 | 76.3 | 35.0 | 1.8 D-180Q-03 11 46.7 2.641 EN 10270-1 75.52 18.1 28.6 39.4 | 77.3 | 39.6 | 1.4 D-193 11.25 44.5 2.926 EN 10270-1 82.809 16.2 28.3 38.8 | 76.0 | 39.1 | 1.3 D-207AD 11 54 3.051 EN 10270-1 83.706 26.56 27.44 37.8 | 74.3 | 37.9 | 1.3 D-207K-02 12 55 3.564 EN 10270-1 106.913 25 30 38.4 | 73.0 | 41.2 | 1.1 D-207K-05 11.5 51 3.82 EN 10270-1 93.12 26.63 24.38 37.1 | 76.7 | 33.7 | 1.0 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-063H-13 Country of origin: DE, German; Compression spring D-063H-13 Product image - Compression springs D-063H-13 QR-Code: Compression spring D-063H-13
