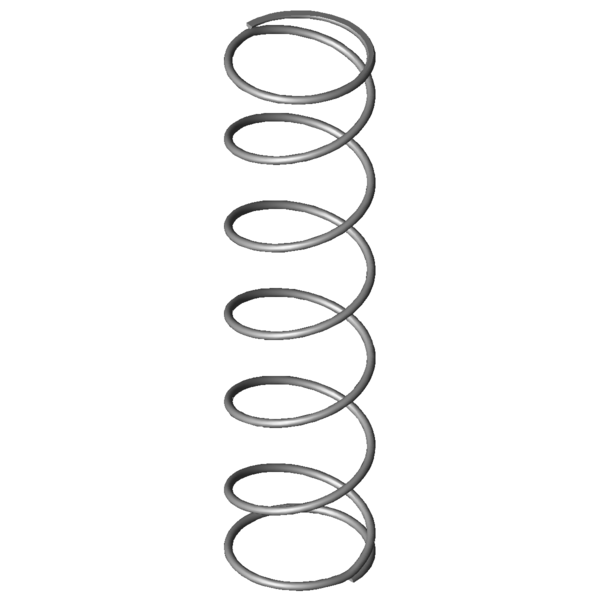

Home » Products » Compression springs » vd-179g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm Scaled prices - Compression spring VD-179G Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring VD-179G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-179G Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.1 mm Wire diameter Di mm Inner coil diameter D 17.9 mm Mean coil diameter De 19 mm Outer coil diameter Dd 16.1 mm maximum diameter of mandrel Dh 20.7 mm minimum diameter of bush L0 76.3 mm unstressed spring length Lk mm buckling length Fn 26.415 N maximum force in static use Ln 11.26 mm Minimum length in static use sn 65.04 mm Maximum spring deflection in static use Fndyn 25.017 N maximum force in dynamic use Lndyn 14.7 mm Minimum length in dynamic use shdyn 17.71 mm Maximum stroke in dynamic use S 13.673 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 0.406 N/mm Spring rate Weight 3.1683 g weight of one spring Fntol 2.1 N (+/-) tolerance of maximum force in static use Fndtol 2.09 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 4.19 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm Metal spring characteristic download pdf file CAD data Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm force-path-calculation Compression spring VD-179G Inquiry formular Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm Inquiry formular Compression spring VD-179G Similar compression springs to Compression spring VD-179G Stainless steel Ø 1.1 x 17.9 x 76.3 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-179G 1.4310 1.1 19 76.3 26.415 11.26 65.04 5.5 0.406 100.0 | 100.0 | 100.0 | 100.0 D-179G EN 10270-1 1.1 19 76.3 30.755 11.26 65.04 5.5 0.473 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DJ 21 71.3 0.088 1.4310 4.204 23.25 48.05 52.7 | 91.6 | 44.9 | 21.5 VD-145D-02 18.5 65 0.297 1.4310 16.155 10.58 54.42 78.9 | 91.2 | 72.4 | 73.1 VD-179G 19 76.3 0.406 1.4310 26.415 11.26 65.04 100.0 | 100.0 | 100.0 | 100.0 VD-180Y-03 19 75 0.449 1.4310 25.885 17.4 57.6 93.0 | 95.4 | 93.3 | 90.4 VD-180K 20 76.8 0.496 1.4310 32.127 12.09 64.71 89.3 | 95.3 | 90.9 | 81.8 VD-180M-12 17 72.8 0.541 1.4310 30.592 16.27 56.53 84.6 | 92.2 | 86.6 | 75.0 VD-207JS 22 76.2 0.605 1.4310 33.635 20.6 55.6 78.6 | 86.5 | 82.0 | 67.1 VD-207JY 18.5 87.5 0.721 1.4310 43.467 27.24 60.26 73.0 | 86.0 | 76.7 | 56.3 VD-207J-72 20 80 0.823 1.4310 49.426 19.95 60.05 70.0 | 87.9 | 72.9 | 49.3 VD-206D-03 17.4 83.3 0.965 1.4310 61.211 19.9 63.4 66.5 | 87.2 | 70.3 | 42.1 VD-207J-05 16.5 75.7 1.05 1.4310 51.726 26.44 49.26 62.8 | 86.5 | 63.4 | 38.7 VD-207J-85 18.5 85 1.061 1.4310 69.498 19.48 65.52 64.6 | 86.8 | 68.6 | 38.3 VD-212D 19.8 66 1.119 1.4310 50.582 20.8 45.2 60.3 | 83.7 | 60.9 | 36.3 VD-209 21.6 73.5 1.303 1.4310 71.094 18.95 54.55 58.7 | 84.3 | 60.5 | 31.2 VD-215 17.6 77.5 1.647 1.4310 88.694 23.65 53.85 55.9 | 86.6 | 56.3 | 24.7 VD-217D 17 72.4 1.653 1.4310 83.244 22.03 50.37 54.5 | 84.4 | 54.6 | 24.6 VD-232L-02 20 69 1.793 1.4310 82.857 22.78 46.22 52.1 | 82.2 | 51.5 | 22.7 VD-247D-08 20 77.5 2.182 1.4310 101.755 30.87 46.63 50.1 | 82.8 | 48.8 | 18.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-179G Country of origin: DE, German; Compression spring VD-179G Product image - Compression springs VD-179G QR-Code: Compression spring VD-179G
