Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

Scaled prices - Compression spring VD-217D

Quantity	Single price [EUR]
1	5.1600 EUR
2	3.6400 EUR
3	3.4700 EUR
7	2.4200 EUR
17	1.1500 EUR
37	0.8500 EUR
75	0.6800 EUR
125	0.4859 EUR
175	0.4196 EUR
250	0.3695 EUR
350	0.3536 EUR
450	0.3284 EUR

Compression spring Buy

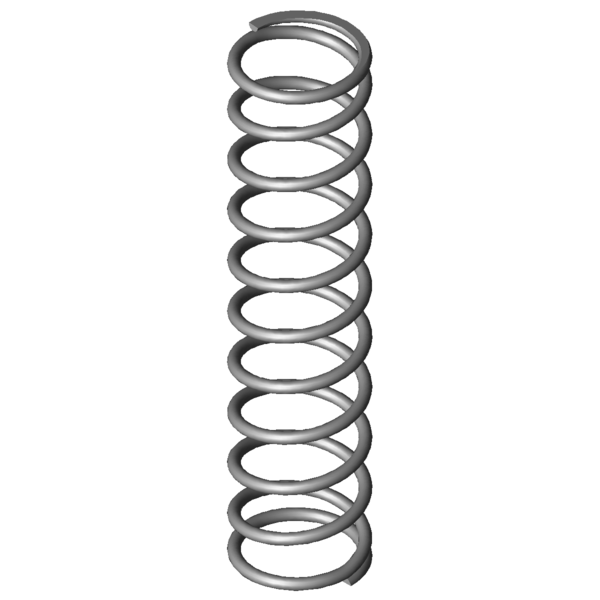

Product image Compression spring VD-217D

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-217D

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.6	mm	Wire diameter
Di		mm	Inner coil diameter
D	15.4	mm	Mean coil diameter
De	17	mm	Outer coil diameter
Dd	13.2	mm	maximum diameter of mandrel
Dh	17.9	mm	minimum diameter of bush
L0	72.4	mm	unstressed spring length
Lk		mm	buckling length
Fn	83.244	N	maximum force in static use
Ln	22.03	mm	Minimum length in static use
sn	50.37	mm	Maximum spring deflection in static use
Fndyn	80.157	N	maximum force in dynamic use
Lndyn	23.9	mm	Minimum length in dynamic use
shdyn	14.7	mm	Maximum stroke in dynamic use
S	7.453	mm	pitch of spring
n	9.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.653	N/mm	Spring rate
Weight	8.8426	g	weight of one spring
Fntol	4.82	N	(+/-) tolerance of maximum force in static use
Fndtol	4.77	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	2.16	mm	(+/-) tolerance of unstressed spring length
Price group	J	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

force-path-calculation Compression spring VD-217D

Inquiry formular Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

Inquiry formular Compression spring VD-217D

Similar compression springs to Compression spring VD-217D Stainless steel Ø 1.6 x 15.4 x 72.4 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-217D	1.4310	1.6	17	72.4	83.244	22.03	50.37	9.5	1.653	100.0 \| 100.0 \| 100.0 \| 100.0
D-217D	EN 10270-1	1.6	17	72.4	96.92	22.03	50.37	9.5	1.924	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-145F	17	68.1	0.388	1.4310	22.503	10.16	57.94	55.3 \| 85.5 \| 57.0 \| 23.5
VD-179G	19	76.3	0.406	1.4310	26.415	11.26	65.04	54.5 \| 84.4 \| 54.6 \| 24.6
VD-180Y-03	19	75	0.449	1.4310	25.885	17.4	57.6	58.2 \| 88.0 \| 59.3 \| 27.2
VD-180M-12	17	72.8	0.541	1.4310	30.592	16.27	56.53	62.4 \| 91.5 \| 62.9 \| 32.7
VD-180M-23	15	72	0.727	1.4310	39.788	17.25	54.75	67.1 \| 87.6 \| 69.9 \| 44.0
VD-182	17.25	62	0.948	1.4310	44.805	14.75	47.25	72.9 \| 87.4 \| 73.8 \| 57.4
VD-206D-03	17.4	83.3	0.965	1.4310	61.211	19.9	63.4	75.2 \| 90.7 \| 76.5 \| 58.4
VD-207J-05	16.5	75.7	1.05	1.4310	51.726	26.44	49.26	79.7 \| 95.5 \| 80.0 \| 63.5
VD-207J-27	15	70	1.286	1.4310	53.175	28.65	41.35	81.2 \| 92.9 \| 73.0 \| 77.8
VD-207J-10	14.5	73.5	1.613	1.4310	77.041	25.74	47.76	94.6 \| 92.5 \| 93.7 \| 97.6
VD-215	17.6	77.5	1.647	1.4310	88.694	23.65	53.85	96.7 \| 96.7 \| 93.7 \| 99.7
VD-217D	17	72.4	1.653	1.4310	83.244	22.03	50.37	100.0 \| 100.0 \| 100.0 \| 100.0
VD-232S	16	80	2.212	1.4310	100.119	34.75	45.25	84.1 \| 91.2 \| 86.5 \| 74.7
VD-232R	16	64	2.79	1.4310	99.581	28.3	35.7	75.7 \| 90.5 \| 77.2 \| 59.2
VD-247D-20	18.5	66	3.667	1.4310	152.398	24.44	41.56	67.1 \| 87.7 \| 68.6 \| 45.1
VD-256A	14.5	71	3.875	1.4310	93.502	46.87	24.13	66.3 \| 87.8 \| 68.5 \| 42.6
VD-250	18	68	4.021	1.4310	167.48	26.35	41.65	65.6 \| 89.5 \| 66.2 \| 41.1
VD-252A-08	14.8	76	4.046	1.4310	136.235	42.33	33.67	64.1 \| 87.4 \| 64.0 \| 40.8
VD-263M-02	19	68	4.117	1.4310	148.91	31.83	36.17	63.1 \| 85.4 \| 63.9 \| 40.1
VD-252A-35	15	75	5.082	1.4310	207.329	34.2	40.8	60.5 \| 88.3 \| 60.6 \| 32.5
VD-263Q-01	15	77	5.283	1.4310	136.113	51.24	25.76	57.5 \| 85.0 \| 56.1 \| 31.3
VD-263U-09	17	85	5.591	1.4310	252.412	39.85	45.15	58.8 \| 85.4 \| 61.3 \| 29.6
VD-256	14.5	71	5.734	1.4310	215.327	33.45	37.55	57.7 \| 87.8 \| 56.6 \| 28.8
VD-263Q	15	77	6.306	1.4310	210.351	43.64	33.36	54.7 \| 85.0 \| 52.9 \| 26.2
VD-263P-02	15	68	7.24	1.4310	213.013	38.58	29.42	52.2 \| 85.0 \| 48.7 \| 22.8
VD-263V-16	15.2	76	7.91	1.4310	183.579	52.79	23.21	50.1 \| 83.8 \| 45.7 \| 20.9
VD-287	15	67.5	14	1.4310	377.344	40.55	26.95	43.8 \| 81.8 \| 37.8 \| 11.8

Number of similar metal springs: 26

Customs tariff number: 73202081; Compression spring VD-217D

Country of origin: DE, German; Compression spring VD-217D

Product image - Compression springs VD-217D

QR-Code: Compression spring VD-217D

QR-Code - Compression springs - VD-217D | https://www.federnshop.com/en/products/compression_springs/vd-217d.html
