Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

Scaled prices - Compression spring VD-252A-08

Quantity	Single price [EUR]
1	5.4200 EUR
2	3.8200 EUR
3	3.6400 EUR
7	2.6600 EUR
17	1.3800 EUR
37	1.0200 EUR
75	0.8900 EUR
125	0.5823 EUR
175	0.5445 EUR
250	0.4945 EUR
350	0.4610 EUR
450	0.4169 EUR

Compression spring Buy

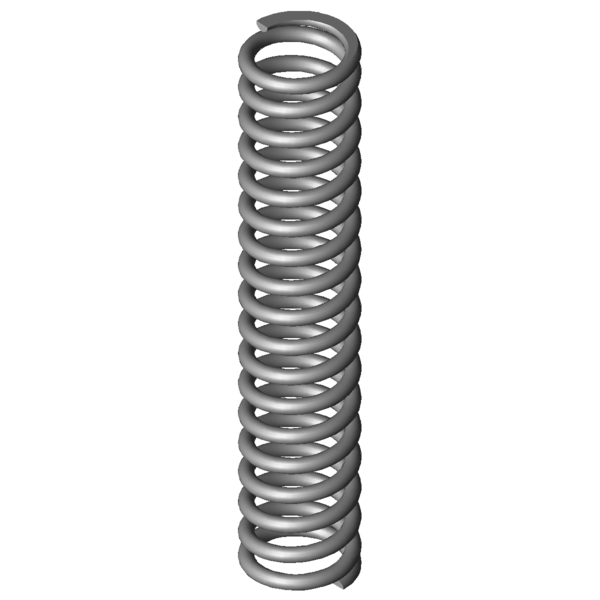

Product image Compression spring VD-252A-08

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-252A-08

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2	mm	Wire diameter
Di		mm	Inner coil diameter
D	12.8	mm	Mean coil diameter
De	14.8	mm	Outer coil diameter
Dd	10.3	mm	maximum diameter of mandrel
Dh	15.5	mm	minimum diameter of bush
L0	76	mm	unstressed spring length
Lk	42.72	mm	buckling length
Fn	136.235	N	maximum force in static use
Ln	42.33	mm	Minimum length in static use
sn	33.67	mm	Maximum spring deflection in static use
Fndyn	125.423	N	maximum force in dynamic use
Lndyn	45	mm	Minimum length in dynamic use
shdyn	16.74	mm	Maximum stroke in dynamic use
S	4.485	mm	pitch of spring
n	16.5	pc.	number of active coils
nt		pc.	total number of coils
R	4.046	N/mm	Spring rate
Weight	18.474	g	weight of one spring
Fntol	10.8	N	(+/-) tolerance of maximum force in static use
Fndtol	10.63	N	(+/-) tolerance of maximum dynamic force
Detol	0.3	mm	(+/-) tolerances of outer coil diameter
L0tol	2.16	mm	(+/-) tolerance of unstressed spring length
Price group	L	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

force-path-calculation Compression spring VD-252A-08

Inquiry formular Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

Inquiry formular Compression spring VD-252A-08

Similar compression springs to Compression spring VD-252A-08 Stainless steel Ø 2 x 12.8 x 76 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-252A-08	1.4310	2	14.8	76	136.235	42.33	33.67	16.5	4.046	100.0 \| 100.0 \| 100.0 \| 100.0
D-252A-08	EN 10270-1	2	14.8	76	158.617	42.33	33.67	16.5	4.711	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-150E	12.5	77	0.426	1.4310	24.493	19.53	57.47	42.2 \| 77.7 \| 38.3 \| 10.5
VD-185G	15	80	0.657	1.4310	37.801	22.5	57.5	48.3 \| 85.4 \| 43.2 \| 16.2
VD-180M-23	15	72	0.727	1.4310	39.788	17.25	54.75	49.3 \| 84.5 \| 45.4 \| 18.0
VD-207J-05	16.5	75.7	1.05	1.4310	51.726	26.44	49.26	55.7 \| 88.1 \| 53.2 \| 26.0
VD-206G-01	15	79	1.069	1.4310	58.234	24.53	54.47	55.7 \| 88.3 \| 52.3 \| 26.4
VD-207J-27	15	70	1.286	1.4310	53.175	28.65	41.35	60.2 \| 88.6 \| 60.2 \| 31.8
VD-206G	15	65.3	1.407	1.4310	64.687	19.31	45.99	60.0 \| 84.9 \| 60.3 \| 34.8
VD-207J-22	15.5	80	1.537	1.4310	86.174	23.95	56.05	62.7 \| 88.5 \| 61.7 \| 38.0
VD-221A	14.1	78	1.587	1.4310	62.736	38.47	39.53	65.2 \| 90.9 \| 65.6 \| 39.2
VD-207J-10	14.5	73.5	1.613	1.4310	77.041	25.74	47.76	64.4 \| 89.9 \| 63.5 \| 39.9
VD-232S	16	80	2.212	1.4310	100.119	34.75	45.25	73.7 \| 92.5 \| 73.9 \| 54.7
VD-221	14.1	78	2.349	1.4310	113.33	29.75	48.25	75.1 \| 90.9 \| 76.5 \| 58.0
VD-252AD	15	87.4	3.862	1.4310	173.824	42.39	45.01	89.1 \| 95.2 \| 76.6 \| 95.4
VD-256A	14.5	71	3.875	1.4310	93.502	46.87	24.13	87.7 \| 97.1 \| 70.1 \| 95.8
VD-252A-08	14.8	76	4.046	1.4310	136.235	42.33	33.67	100.0 \| 100.0 \| 100.0 \| 100.0
VD-252A-35	15	75	5.082	1.4310	207.329	34.2	40.8	84.3 \| 99.1 \| 74.1 \| 79.6
VD-252AC	15	66.2	5.098	1.4310	168.819	33.08	33.12	88.1 \| 95.3 \| 89.5 \| 79.4
VD-252A-07	14.8	64	5.135	1.4310	153.041	34.2	29.8	87.4 \| 94.7 \| 88.8 \| 78.8
VD-257E	14	73.1	5.227	1.4310	174.195	39.77	33.33	87.6 \| 96.9 \| 88.6 \| 77.4
VD-263Q-01	15	77	5.283	1.4310	136.113	51.24	25.76	87.0 \| 96.1 \| 88.2 \| 76.6
VD-256	14.5	71	5.734	1.4310	215.327	33.45	37.55	81.4 \| 97.1 \| 76.5 \| 70.6
VD-263Q	15	77	6.306	1.4310	210.351	43.64	33.36	80.7 \| 96.1 \| 81.9 \| 64.2
VD-263P-02	15	68	7.24	1.4310	213.013	38.58	29.42	74.9 \| 93.0 \| 75.7 \| 55.9
VD-263V-16	15.2	76	7.91	1.4310	183.579	52.79	23.21	72.1 \| 93.6 \| 71.6 \| 51.2
VD-287A	15	67.5	9.459	1.4310	93.56	57.61	9.89	60.3 \| 89.2 \| 49.0 \| 42.8
VD-287	15	67.5	14	1.4310	377.344	40.55	26.95	58.7 \| 89.2 \| 58.1 \| 28.9
VD-288T-08	15	76	19.746	1.4310	454.226	53	23	53.2 \| 90.0 \| 49.2 \| 20.5
VD-288X	14	71.4	24.698	1.4310	420.313	54.38	17.02	48.2 \| 86.7 \| 41.5 \| 16.4
VD-288Z-08	15.5	76	29.23	1.4310	563.434	56.72	19.28	47.1 \| 86.7 \| 40.7 \| 13.8

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring VD-252A-08

Country of origin: DE, German; Compression spring VD-252A-08
