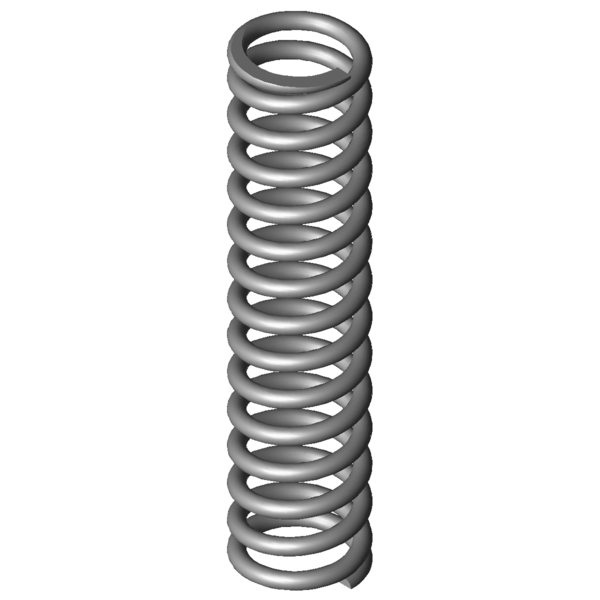

Home » Products » Compression springs » vd-252a-07 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm Scaled prices - Compression spring VD-252A-07 Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-252A-07 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-252A-07 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 12.8 mm Mean coil diameter De 14.8 mm Outer coil diameter Dd 10.3 mm maximum diameter of mandrel Dh 15.5 mm minimum diameter of bush L0 64 mm unstressed spring length Lk mm buckling length Fn 153.041 N maximum force in static use Ln 34.2 mm Minimum length in static use sn 29.8 mm Maximum spring deflection in static use Fndyn 142.244 N maximum force in dynamic use Lndyn 36.3 mm Minimum length in dynamic use shdyn 12.66 mm Maximum stroke in dynamic use S 4.769 mm pitch of spring n 13 pc. number of active coils nt pc. total number of coils R 5.135 N/mm Spring rate Weight 14.979 g weight of one spring Fntol 11.37 N (+/-) tolerance of maximum force in static use Fndtol 11.21 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.75 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm Metal spring characteristic download pdf file CAD data Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm force-path-calculation Compression spring VD-252A-07 Inquiry formular Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm Inquiry formular Compression spring VD-252A-07 Similar compression springs to Compression spring VD-252A-07 Stainless steel Ø 2 x 12.8 x 64 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-252A-07 1.4310 2 14.8 64 153.041 34.2 29.8 13 5.135 100.0 | 100.0 | 100.0 | 100.0 D-252A-07 EN 10270-1 2 14.8 64 178.184 34.2 29.8 13 5.979 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-180M-23 15 72 0.727 1.4310 39.788 17.25 54.75 45.6 | 82.5 | 40.2 | 14.2 VD-185E 15 55 0.967 1.4310 37.607 16.1 38.9 50.6 | 82.4 | 50.6 | 18.8 VD-190E 13 63 0.975 1.4310 38.726 23.3 39.7 50.7 | 82.9 | 50.2 | 19.0 VD-207J-27 15 70 1.286 1.4310 53.175 28.65 41.35 55.6 | 88.4 | 53.4 | 25.0 VD-188 13.75 62.5 1.287 1.4310 57.325 17.95 44.55 53.9 | 84.4 | 52.2 | 25.1 VD-206G 15 65.3 1.407 1.4310 64.687 19.31 45.99 56.6 | 88.9 | 53.5 | 27.4 VD-207J-10 14.5 73.5 1.613 1.4310 77.041 25.74 47.76 58.2 | 86.7 | 56.4 | 31.4 VD-207J-26 15 55 1.637 1.4310 52.122 23.15 31.85 60.7 | 86.5 | 63.8 | 31.9 VD-207J-38 14 65.7 1.814 1.4310 72.797 25.58 40.12 61.8 | 89.0 | 60.9 | 35.3 VD-220A 14.1 59 2.175 1.4310 65.381 28.94 30.06 67.5 | 89.2 | 70.9 | 42.4 VD-207J-37 14 62 2.387 1.4310 96.211 21.7 40.3 67.9 | 88.8 | 68.4 | 46.5 VD-232R 16 64 2.79 1.4310 99.581 28.3 35.7 74.3 | 94.2 | 74.3 | 54.3 VD-256A 14.5 71 3.875 1.4310 93.502 46.87 24.13 80.8 | 96.0 | 71.0 | 75.5 VD-252AC 15 66.2 5.098 1.4310 168.819 33.08 33.12 96.0 | 98.4 | 90.3 | 99.3 VD-252A-07 14.8 64 5.135 1.4310 153.041 34.2 29.8 100.0 | 100.0 | 100.0 | 100.0 VD-256 14.5 71 5.734 1.4310 215.327 33.45 37.55 86.9 | 96.0 | 75.2 | 89.6 VD-257D-01 14 60 6.001 1.4310 149.086 35.16 24.84 90.7 | 96.1 | 90.4 | 85.6 VD-252AB 15 55.6 6.069 1.4310 164.886 28.43 27.17 90.6 | 95.2 | 92.0 | 84.6 VD-257E-07 12.3 64 7.118 1.4310 135.008 45.03 18.97 80.8 | 94.4 | 75.9 | 72.2 VD-263P-02 15 68 7.24 1.4310 213.013 38.58 29.42 83.6 | 94.6 | 85.3 | 70.9 VD-263V-15 15.2 64 9.229 1.4310 166.704 45.94 18.06 75.1 | 93.6 | 76.2 | 55.6 VD-287A 15 67.5 9.459 1.4310 93.56 57.61 9.89 64.2 | 91.2 | 47.2 | 54.3 VD-286A 15 55 12.963 1.4310 150.492 43.39 11.61 65.5 | 88.2 | 68.6 | 39.6 VD-287 15 67.5 14 1.4310 377.344 40.55 26.95 64.4 | 91.2 | 65.5 | 36.7 VD-283A-17 15.5 59 14.817 1.4310 356.492 34.94 24.06 61.9 | 89.2 | 61.8 | 34.7 VD-288E 13 66.2 19.049 1.4310 334.301 48.65 17.55 55.8 | 88.2 | 52.3 | 27.0 VD-288T-07 15 64 23.695 1.4310 447.908 45.1 18.9 53.5 | 90.0 | 48.8 | 21.7 VD-288Z-07 15.5 64 35.319 1.4310 564.652 48.01 15.99 47.2 | 86.7 | 40.4 | 14.5 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-252A-07 Country of origin: DE, German; Compression spring VD-252A-07 Product image - Compression springs VD-252A-07 QR-Code: Compression spring VD-252A-07
