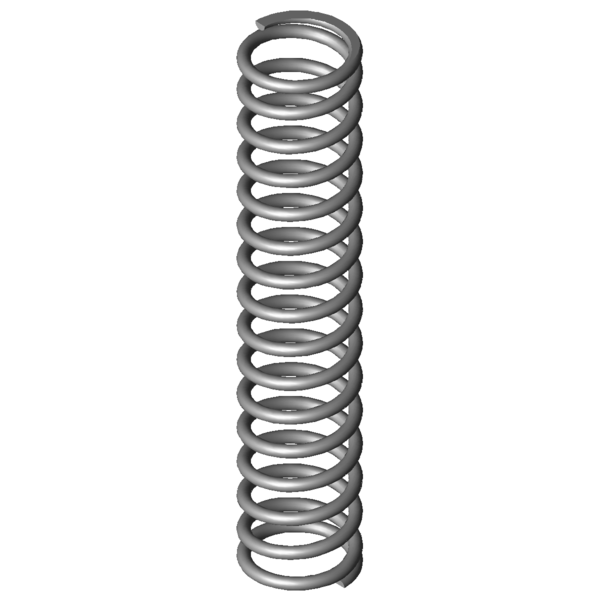

Home » Products » Compression springs » vd-232s Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm Scaled prices - Compression spring VD-232S Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-232S Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232S Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 14.2 mm Mean coil diameter De 16 mm Outer coil diameter Dd 11.9 mm maximum diameter of mandrel Dh 16.7 mm minimum diameter of bush L0 80 mm unstressed spring length Lk 37.92 mm buckling length Fn 100.119 N maximum force in static use Ln 34.75 mm Minimum length in static use sn 45.25 mm Maximum spring deflection in static use Fndyn 94.514 N maximum force in dynamic use Lndyn 37.28 mm Minimum length in dynamic use shdyn 20.98 mm Maximum stroke in dynamic use S 5.393 mm pitch of spring n 14.5 pc. number of active coils nt pc. total number of coils R 2.212 N/mm Spring rate Weight 14.806 g weight of one spring Fntol 6.7 N (+/-) tolerance of maximum force in static use Fndtol 6.61 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.35 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm force-path-calculation Compression spring VD-232S Inquiry formular Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm Inquiry formular Compression spring VD-232S Similar compression springs to Compression spring VD-232S Stainless steel Ø 1.8 x 14.2 x 80 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-232S 1.4310 1.8 16 80 100.119 34.75 45.25 14.5 2.212 100.0 | 100.0 | 100.0 | 100.0 D-232S EN 10270-1 1.8 16 80 116.567 34.75 45.25 14.5 2.576 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-149 13.5 80.5 0.358 1.4310 22.156 18.68 61.82 47.9 | 79.8 | 47.7 | 16.2 VD-179J-13 15.9 85 0.465 1.4310 32.521 15.05 69.95 51.5 | 84.9 | 48.6 | 21.0 VD-180M-12 17 72.8 0.541 1.4310 30.592 16.27 56.53 54.6 | 83.9 | 55.3 | 24.5 VD-185G 15 80 0.657 1.4310 37.801 22.5 57.5 58.6 | 87.7 | 58.2 | 29.7 VD-180M-23 15 72 0.727 1.4310 39.788 17.25 54.75 59.2 | 83.5 | 61.2 | 32.8 VD-206D-03 17.4 83.3 0.965 1.4310 61.211 19.9 63.4 66.2 | 88.6 | 66.3 | 43.6 VD-207J-05 16.5 75.7 1.05 1.4310 51.726 26.44 49.26 70.3 | 91.6 | 71.8 | 47.5 VD-206G-01 15 79 1.069 1.4310 58.234 24.53 54.47 69.7 | 90.1 | 70.6 | 48.3 VD-207J-22 15.5 80 1.537 1.4310 86.174 23.95 56.05 82.1 | 93.4 | 83.4 | 69.5 VD-221A 14.1 78 1.587 1.4310 62.736 38.47 39.53 79.4 | 91.5 | 75.0 | 71.7 VD-207J-10 14.5 73.5 1.613 1.4310 77.041 25.74 47.76 82.5 | 88.6 | 85.8 | 72.9 VD-215 17.6 77.5 1.647 1.4310 88.694 23.65 53.85 84.3 | 92.2 | 86.3 | 74.4 VD-217D 17 72.4 1.653 1.4310 83.244 22.03 50.37 84.1 | 91.2 | 86.5 | 74.7 VD-232T 16 93 1.944 1.4310 104.906 39.04 53.96 91.0 | 95.3 | 89.6 | 87.9 VD-232S 16 80 2.212 1.4310 100.119 34.75 45.25 100.0 | 100.0 | 100.0 | 100.0 VD-221 14.1 78 2.349 1.4310 113.33 29.75 48.25 92.3 | 91.5 | 91.1 | 94.2 VD-252AD 15 87.4 3.862 1.4310 173.824 42.39 45.01 75.9 | 91.8 | 78.5 | 57.3 VD-252A-08 14.8 76 4.046 1.4310 136.235 42.33 33.67 73.7 | 92.5 | 73.9 | 54.7 VD-252A-35 15 75 5.082 1.4310 207.329 34.2 40.8 68.4 | 92.5 | 69.2 | 43.5 VD-263Q-01 15 77 5.283 1.4310 136.113 51.24 25.76 65.9 | 90.6 | 65.2 | 41.9 VD-263U-09 17 85 5.591 1.4310 252.412 39.85 45.15 66.2 | 89.4 | 69.7 | 39.6 VD-263Q 15 77 6.306 1.4310 210.351 43.64 33.36 62.1 | 90.6 | 60.7 | 35.1 VD-263V-17 15.2 89 6.592 1.4310 175.405 62.39 26.61 59.4 | 86.6 | 57.9 | 33.6 VD-263V-16 15.2 76 7.91 1.4310 183.579 52.79 23.21 56.4 | 88.3 | 52.9 | 28.0 VD-283A-18 15.5 90 9.429 1.4310 357.839 52.05 37.95 55.1 | 85.9 | 55.9 | 23.5 VD-288T-09 15 89 16.925 1.4310 475.664 60.9 28.1 45.8 | 82.6 | 41.6 | 13.1 VD-288T-08 15 76 19.746 1.4310 454.226 53 23 44.0 | 84.3 | 36.4 | 11.2 VD-288Z-09 15.5 89 26.082 1.4310 682.781 62.82 26.18 42.1 | 81.6 | 36.3 | 8.5 VD-288Z-08 15.5 76 29.23 1.4310 563.434 56.72 19.28 40.4 | 83.3 | 30.2 | 7.6 VD-339E-02 18 83 62.794 1.4310 1057.739 66.16 16.84 34.5 | 76.8 | 23.3 | 3.5 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-232S Country of origin: DE, German; Compression spring VD-232S Product image - Compression springs VD-232S QR-Code: Compression spring VD-232S
