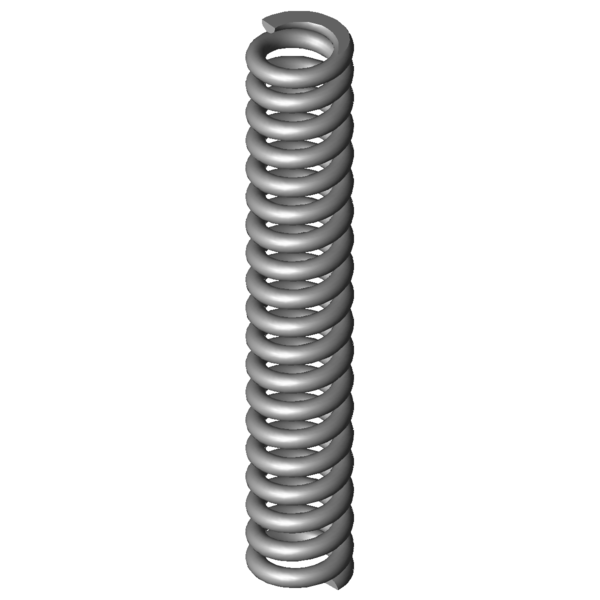

Home » Products » Compression springs » vd-288t-09 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm Scaled prices - Compression spring VD-288T-09 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288T-09 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288T-09 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 12.2 mm Mean coil diameter De 15 mm Outer coil diameter Dd 8.8 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 89 mm unstressed spring length Lk 67.4 mm buckling length Fn 475.664 N maximum force in static use Ln 60.9 mm Minimum length in static use sn 28.1 mm Maximum spring deflection in static use Fndyn 418.042 N maximum force in dynamic use Lndyn 64.3 mm Minimum length in dynamic use shdyn 6.5 mm Maximum stroke in dynamic use S 4.926 mm pitch of spring n 17.5 pc. number of active coils nt pc. total number of coils R 16.925 N/mm Spring rate Weight 36.3773 g weight of one spring Fntol 42.83 N (+/-) tolerance of maximum force in static use Fndtol 41.9 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.75 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm force-path-calculation Compression spring VD-288T-09 Inquiry formular Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm Inquiry formular Compression spring VD-288T-09 Similar compression springs to Compression spring VD-288T-09 Stainless steel Ø 2.8 x 12.2 x 89 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288T-09 1.4310 2.8 15 89 475.664 60.9 28.1 17.5 16.925 100.0 | 100.0 | 100.0 | 100.0 D-288T-09 EN 10270-1 2.8 15 89 553.809 60.9 28.1 17.5 19.705 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-252A-09 14.8 89 3.338 1.4310 128.649 50.46 38.54 53.2 | 90.0 | 50.0 | 19.7 VD-252AE 15 98 3.445 1.4310 175.515 47.04 50.96 51.3 | 87.4 | 46.0 | 20.3 VD-252AD 15 87.4 3.862 1.4310 173.824 42.39 45.01 54.1 | 89.9 | 49.5 | 22.8 VD-252A-40 15 92 4.111 1.4310 207.409 41.55 50.45 54.4 | 89.4 | 49.7 | 24.3 VD-252A-35 15 75 5.082 1.4310 207.329 34.2 40.8 57.2 | 85.2 | 56.2 | 30.0 VD-263Q-01 15 77 5.283 1.4310 136.113 51.24 25.76 59.9 | 88.4 | 60.1 | 31.2 VD-257E-12 13 89 5.394 1.4310 217.544 48.67 40.33 58.5 | 86.0 | 57.7 | 31.9 VD-263V-18 15.2 102 5.768 1.4310 181.008 70.62 31.38 62.8 | 90.6 | 63.8 | 34.1 VD-263Q 15 77 6.306 1.4310 210.351 43.64 33.36 63.3 | 88.4 | 64.2 | 37.2 VD-263V-17 15.2 89 6.592 1.4310 175.405 62.39 26.61 66.5 | 94.8 | 65.8 | 38.9 VD-288A 15 98 7.778 1.4310 225.677 68.98 29.02 70.5 | 93.4 | 72.1 | 45.9 VD-283A-18 15.5 90 9.429 1.4310 357.839 52.05 37.95 75.1 | 95.0 | 74.6 | 55.7 VD-288 15 98 9.459 1.4310 382.073 57.61 40.39 74.7 | 93.4 | 74.9 | 55.9 VD-288T-10 15 102 14.809 1.4310 491.743 68.79 33.21 91.3 | 95.8 | 90.7 | 87.5 VD-288T-09 15 89 16.925 1.4310 475.664 60.9 28.1 100.0 | 100.0 | 100.0 | 100.0 VD-288T-08 15 76 19.746 1.4310 454.226 53 23 89.8 | 95.1 | 88.7 | 85.7 VD-288Z-09 15.5 89 26.082 1.4310 682.781 62.82 26.18 80.7 | 95.7 | 81.4 | 64.9 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-288T-09 Country of origin: DE, German; Compression spring VD-288T-09 Product image - Compression springs VD-288T-09 QR-Code: Compression spring VD-288T-09
