Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

Scaled prices - Compression spring VD-252A-09

Quantity	Single price [EUR]
1	5.5300 EUR
2	3.9000 EUR
3	3.7100 EUR
7	2.9000 EUR
17	1.4300 EUR
37	1.1000 EUR
75	0.9400 EUR
125	0.6511 EUR
175	0.6135 EUR
250	0.5760 EUR
350	0.5306 EUR
450	0.4927 EUR

Compression spring Buy

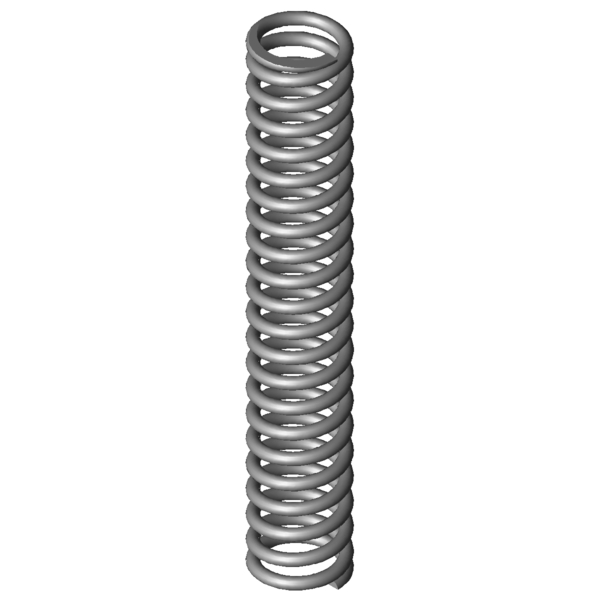

Product image Compression spring VD-252A-09

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-252A-09

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2	mm	Wire diameter
Di		mm	Inner coil diameter
D	12.8	mm	Mean coil diameter
De	14.8	mm	Outer coil diameter
Dd	10.3	mm	maximum diameter of mandrel
Dh	15.5	mm	minimum diameter of bush
L0	89	mm	unstressed spring length
Lk	63.92	mm	buckling length
Fn	128.649	N	maximum force in static use
Ln	50.46	mm	Minimum length in static use
sn	38.54	mm	Maximum spring deflection in static use
Fndyn	117.86	N	maximum force in dynamic use
Lndyn	53.69	mm	Minimum length in dynamic use
shdyn	20.29	mm	Maximum stroke in dynamic use
S	4.35	mm	pitch of spring
n	20	pc.	number of active coils
nt		pc.	total number of coils
R	3.338	N/mm	Spring rate
Weight	21.9691	g	weight of one spring
Fntol	10.57	N	(+/-) tolerance of maximum force in static use
Fndtol	10.41	N	(+/-) tolerance of maximum dynamic force
Detol	0.3	mm	(+/-) tolerances of outer coil diameter
L0tol	2.57	mm	(+/-) tolerance of unstressed spring length
Price group	M	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

force-path-calculation Compression spring VD-252A-09

Inquiry formular Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

Inquiry formular Compression spring VD-252A-09

Similar compression springs to Compression spring VD-252A-09 Stainless steel Ø 2 x 12.8 x 89 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-252A-09	1.4310	2	14.8	89	128.649	50.46	38.54	20	3.338	100.0 \| 100.0 \| 100.0 \| 100.0
D-252A-09	EN 10270-1	2	14.8	89	149.784	50.46	38.54	20	3.886	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-180M-13	17	89.4	0.438	1.4310	30.607	19.54	69.86	44.9 \| 82.2 \| 39.5 \| 13.1
VD-179J-13	15.9	85	0.465	1.4310	32.521	15.05	69.95	45.1 \| 81.2 \| 40.2 \| 13.9
VD-179J-04	14	96.2	0.477	1.4310	36.302	20.16	76.04	44.8 \| 80.7 \| 39.5 \| 14.3
VD-180M-24	15	93	0.552	1.4310	39.269	21.9	71.1	47.9 \| 84.8 \| 42.4 \| 16.5
VD-189A	13.75	90.5	0.591	1.4310	34.937	31.41	59.09	49.5 \| 84.6 \| 46.2 \| 17.7
VD-185G	15	80	0.657	1.4310	37.801	22.5	57.5	50.5 \| 83.7 \| 48.2 \| 19.7
VD-189	13.75	90.5	0.875	1.4310	57.269	25.05	65.45	54.2 \| 84.6 \| 51.7 \| 26.2
VD-206G-02	15	93	0.922	1.4310	59.9	28	65	56.2 \| 88.1 \| 52.9 \| 27.6
VD-206G-01	15	79	1.069	1.4310	58.234	24.53	54.47	58.6 \| 85.8 \| 58.0 \| 32.0
VD-207J-11	14.5	97	1.222	1.4310	78.189	33.01	63.99	61.8 \| 88.2 \| 60.5 \| 36.6
VD-207J-39	14	95.8	1.226	1.4310	72.802	36.42	59.38	61.7 \| 87.5 \| 60.7 \| 36.7
VD-207J-22	15.5	80	1.537	1.4310	86.174	23.95	56.05	66.9 \| 86.8 \| 67.9 \| 46.1
VD-232T	16	93	1.944	1.4310	104.906	39.04	53.96	75.8 \| 92.7 \| 76.5 \| 58.2
VD-252A-10	14.8	102	2.841	1.4310	123.323	58.59	43.41	91.1 \| 95.8 \| 92.3 \| 85.1
VD-252A-09	14.8	89	3.338	1.4310	128.649	50.46	38.54	100.0 \| 100.0 \| 100.0 \| 100.0
VD-252AE	15	98	3.445	1.4310	175.515	47.04	50.96	89.3 \| 96.5 \| 74.5 \| 96.9
VD-252AD	15	87.4	3.862	1.4310	173.824	42.39	45.01	88.4 \| 99.0 \| 79.8 \| 86.4
VD-252A-08	14.8	76	4.046	1.4310	136.235	42.33	33.67	89.5 \| 95.1 \| 90.9 \| 82.5
VD-252A-40	15	92	4.111	1.4310	207.409	41.55	50.45	83.0 \| 98.5 \| 69.2 \| 81.2
VD-263Q-01	15	77	5.283	1.4310	136.113	51.24	25.76	78.6 \| 92.0 \| 80.7 \| 63.2
VD-257E-12	13	89	5.394	1.4310	217.544	48.67	40.33	78.4 \| 95.9 \| 77.3 \| 61.9
VD-263Q	15	77	6.306	1.4310	210.351	43.64	33.36	72.9 \| 92.0 \| 73.9 \| 52.9
VD-263V-17	15.2	89	6.592	1.4310	175.405	62.39	26.61	71.8 \| 93.6 \| 71.2 \| 50.6
VD-288A	15	98	7.778	1.4310	225.677	68.98	29.02	66.3 \| 89.8 \| 66.2 \| 42.9
VD-283A-18	15.5	90	9.429	1.4310	357.839	52.05	37.95	64.7 \| 91.5 \| 67.2 \| 35.4
VD-288	15	98	9.459	1.4310	382.073	57.61	40.39	63.2 \| 89.8 \| 64.5 \| 35.3
VD-288T-10	15	102	14.809	1.4310	491.743	68.79	33.21	54.8 \| 85.8 \| 56.2 \| 22.5
VD-288T-09	15	89	16.925	1.4310	475.664	60.9	28.1	53.2 \| 90.0 \| 50.0 \| 19.7
VD-288T-08	15	76	19.746	1.4310	454.226	53	23	48.7 \| 85.2 \| 44.0 \| 16.9
VD-288Z-09	15.5	89	26.082	1.4310	682.781	62.82	26.18	47.6 \| 86.7 \| 43.4 \| 12.8

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring VD-252A-09

Country of origin: DE, German; Compression spring VD-252A-09

Product image - Compression springs VD-252A-09

QR-Code: Compression spring VD-252A-09

QR-Code - Compression springs - VD-252A-09 | https://www.federnshop.com/en/products/compression_springs/vd-252a-09.html
