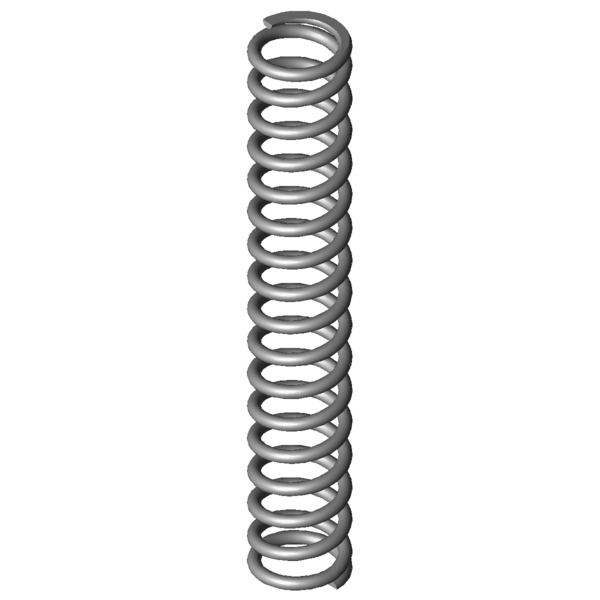

Home » Products » Compression springs » vd-252a-40 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm Scaled prices - Compression spring VD-252A-40 Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-252A-40 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-252A-40 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 13 mm Mean coil diameter De 15 mm Outer coil diameter Dd 10.4 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 92 mm unstressed spring length Lk 67.21 mm buckling length Fn 207.409 N maximum force in static use Ln 41.55 mm Minimum length in static use sn 50.45 mm Maximum spring deflection in static use Fndyn 168.764 N maximum force in dynamic use Lndyn 50.95 mm Minimum length in dynamic use shdyn 10.52 mm Maximum stroke in dynamic use S 5.806 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 4.111 N/mm Spring rate Weight 17.7485 g weight of one spring Fntol 11.76 N (+/-) tolerance of maximum force in static use Fndtol 11.6 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.08 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm Metal spring characteristic download pdf file CAD data Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm force-path-calculation Compression spring VD-252A-40 Inquiry formular Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm Inquiry formular Compression spring VD-252A-40 Similar compression springs to Compression spring VD-252A-40 Stainless steel Ø 2 x 13 x 92 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-252A-40 1.4310 2 15 92 207.409 41.55 50.45 15.5 4.111 83.0 | 98.5 | 69.2 | 81.2 D-252A-40 EN 10270-1 2 15 92 240.287 41.8 50.2 15.5 4.787 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-189A 13.75 90.5 0.591 1.4310 34.937 31.41 59.09 49.5 | 84.6 | 46.2 | 17.7 VD-185G 15 80 0.657 1.4310 37.801 22.5 57.5 50.5 | 83.7 | 48.2 | 19.7 VD-180Q 13 92.7 0.712 1.4310 47.836 25.56 67.14 49.5 | 82.0 | 49.1 | 17.3 VD-206H 15 105 0.862 1.4310 64.882 29.74 75.26 52.0 | 85.9 | 49.2 | 21.0 VD-189 13.75 90.5 0.875 1.4310 57.269 25.05 65.45 54.2 | 84.6 | 51.7 | 26.2 VD-206G-02 15 93 0.922 1.4310 59.9 28 65 56.2 | 88.1 | 52.9 | 27.6 VD-206G-01 15 79 1.069 1.4310 58.234 24.53 54.47 58.6 | 85.8 | 58.0 | 32.0 VD-207J-11 14.5 97 1.222 1.4310 78.189 33.01 63.99 61.8 | 88.2 | 60.5 | 36.6 VD-207J-39 14 95.8 1.226 1.4310 72.802 36.42 59.38 61.7 | 87.5 | 60.7 | 36.7 VD-232T 16 93 1.944 1.4310 104.906 39.04 53.96 75.8 | 92.7 | 76.5 | 58.2 VD-252A-10 14.8 102 2.841 1.4310 123.323 58.59 43.41 91.1 | 95.8 | 92.3 | 85.1 VD-252A-09 14.8 89 3.338 1.4310 128.649 50.46 38.54 100.0 | 100.0 | 100.0 | 100.0 VD-252AE 15 98 3.445 1.4310 175.515 47.04 50.96 89.3 | 96.5 | 74.5 | 96.9 VD-252AD 15 87.4 3.862 1.4310 173.824 42.39 45.01 88.4 | 99.0 | 79.8 | 86.4 VD-252A-40 15 92 4.111 1.4310 207.409 41.55 50.45 83.0 | 98.5 | 69.2 | 81.2 VD-263V-18 15.2 102 5.768 1.4310 181.008 70.62 31.38 78.9 | 90.7 | 74.7 | 71.3 VD-263Q 15 77 6.306 1.4310 210.351 43.64 33.36 72.9 | 92.0 | 73.9 | 52.9 VD-263V-17 15.2 89 6.592 1.4310 175.405 62.39 26.61 71.8 | 93.6 | 71.2 | 50.6 VD-288A 15 98 7.778 1.4310 225.677 68.98 29.02 66.3 | 89.8 | 66.2 | 42.9 VD-283A-18 15.5 90 9.429 1.4310 357.839 52.05 37.95 64.7 | 91.5 | 67.2 | 35.4 VD-288 15 98 9.459 1.4310 382.073 57.61 40.39 63.2 | 89.8 | 64.5 | 35.3 VD-288T-10 15 102 14.809 1.4310 491.743 68.79 33.21 54.8 | 85.8 | 56.2 | 22.5 VD-288T-09 15 89 16.925 1.4310 475.664 60.9 28.1 53.2 | 90.0 | 50.0 | 19.7 VD-288Z-10 15.5 102 21.735 1.4310 605.405 74.15 27.85 49.2 | 83.8 | 44.7 | 18.9 VD-288Z-09 15.5 89 26.082 1.4310 682.781 62.82 26.18 47.6 | 86.7 | 43.4 | 12.8 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-252A-40 Country of origin: DE, German; Compression spring VD-252A-40 Product image - Compression springs VD-252A-40 QR-Code: Compression spring VD-252A-40
