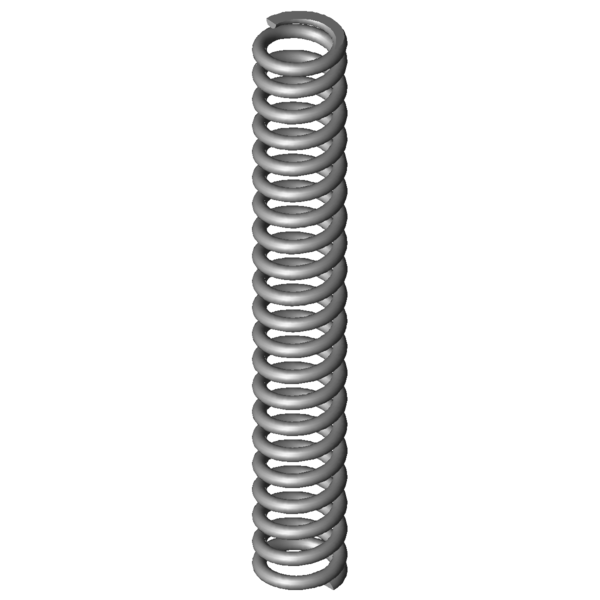

Home » Products » Compression springs » vd-257e-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm Scaled prices - Compression spring VD-257E-12 Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-257E-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-257E-12 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 11 mm Mean coil diameter De 13 mm Outer coil diameter Dd 8.4 mm maximum diameter of mandrel Dh 13.8 mm minimum diameter of bush L0 89 mm unstressed spring length Lk 71.61 mm buckling length Fn 217.544 N maximum force in static use Ln 48.67 mm Minimum length in static use sn 40.33 mm Maximum spring deflection in static use Fndyn 192.298 N maximum force in dynamic use Lndyn 53.35 mm Minimum length in dynamic use shdyn 9.26 mm Maximum stroke in dynamic use S 4.462 mm pitch of spring n 19.5 pc. number of active coils nt pc. total number of coils R 5.394 N/mm Spring rate Weight 18.4506 g weight of one spring Fntol 14.95 N (+/-) tolerance of maximum force in static use Fndtol 14.7 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.17 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm Metal spring characteristic download pdf file CAD data Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm force-path-calculation Compression spring VD-257E-12 Inquiry formular Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm Inquiry formular Compression spring VD-257E-12 Similar compression springs to Compression spring VD-257E-12 Stainless steel Ø 2 x 11 x 89 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-257E-12 1.4310 2 13 89 217.544 48.67 40.33 19.5 5.394 100.0 | 100.0 | 100.0 | 100.0 D-257E-12 EN 10270-1 2 13 89 253.284 48.67 40.33 19.5 6.28 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-180P-02 13 82 0.669 1.4310 36.775 27.05 54.95 47.2 | 84.0 | 45.1 | 12.4 VD-180Q 13 92.7 0.712 1.4310 47.836 25.56 67.14 46.5 | 85.3 | 41.0 | 13.2 VD-189 13.75 90.5 0.875 1.4310 57.269 25.05 65.45 48.4 | 85.1 | 44.0 | 16.2 VD-206G-02 15 93 0.922 1.4310 59.9 28 65 48.7 | 84.1 | 44.8 | 17.1 VD-195A 11.25 93.5 0.949 1.4310 54.462 36.14 57.36 48.9 | 81.4 | 47.7 | 17.6 VD-195 11.25 93.5 1.155 1.4310 71.477 31.6 61.9 50.6 | 81.4 | 49.0 | 21.4 VD-207J-39 14 95.8 1.226 1.4310 72.802 36.42 59.38 53.4 | 86.9 | 50.7 | 22.7 VD-207KE 12.5 80.9 1.799 1.4310 81.199 35.76 45.14 61.3 | 87.4 | 63.3 | 33.3 VD-222F 12.7 79 2.266 1.4310 93.158 37.9 41.1 67.1 | 88.8 | 70.5 | 42.0 VD-227A 11.6 85 2.549 1.4310 102.176 44.91 40.09 69.6 | 88.2 | 73.2 | 47.2 VD-227 11.6 85 3.1 1.4310 141.965 39.2 45.8 74.1 | 88.2 | 76.7 | 57.5 VD-252A-09 14.8 89 3.338 1.4310 128.649 50.46 38.54 78.4 | 95.9 | 77.3 | 61.9 VD-252AD 15 87.4 3.862 1.4310 173.824 42.39 45.01 77.5 | 93.0 | 78.4 | 61.2 VD-252A-40 15 92 4.111 1.4310 207.409 41.55 50.45 86.1 | 94.5 | 87.6 | 76.2 VD-257E-12 13 89 5.394 1.4310 217.544 48.67 40.33 100.0 | 100.0 | 100.0 | 100.0 VD-257E-08 12.3 76 6.101 1.4310 147.21 51.87 24.13 81.8 | 93.3 | 63.8 | 88.4 VD-262A 12 79.5 6.222 1.4310 151.278 55.19 24.31 81.8 | 93.9 | 64.9 | 86.7 VD-263V-17 15.2 89 6.592 1.4310 175.405 62.39 26.61 81.6 | 89.6 | 73.3 | 81.8 VD-262 12 79.5 7.568 1.4310 252.851 46.09 33.41 83.2 | 93.9 | 84.4 | 71.3 VD-288T-09 15 89 16.925 1.4310 475.664 60.9 28.1 63.3 | 88.4 | 64.2 | 37.2 VD-288Z-09 15.5 89 26.082 1.4310 682.781 62.82 26.18 50.6 | 82.8 | 48.4 | 20.7 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-257E-12 Country of origin: DE, German; Compression spring VD-257E-12 Product image - Compression springs VD-257E-12 QR-Code: Compression spring VD-257E-12
