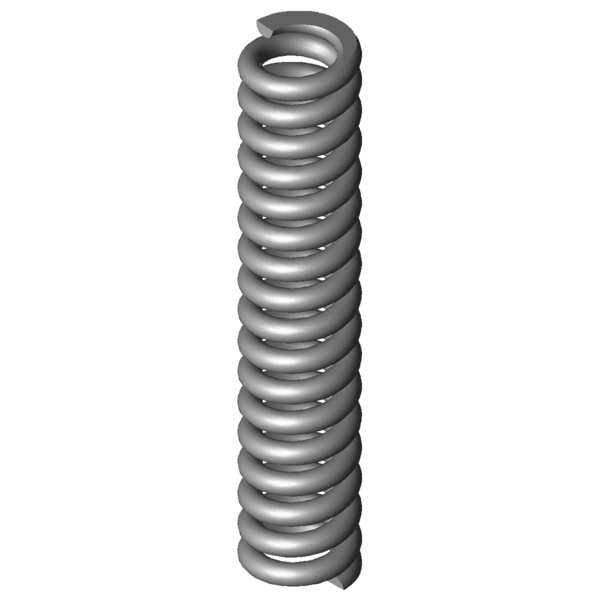

Home » Products » Compression springs » vd-288x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm Scaled prices - Compression spring VD-288X Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-288X Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288X Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 11.2 mm Mean coil diameter De 14 mm Outer coil diameter Dd 7.7 mm maximum diameter of mandrel Dh 14.7 mm minimum diameter of bush L0 71.4 mm unstressed spring length Lk 46 mm buckling length Fn 420.313 N maximum force in static use Ln 54.38 mm Minimum length in static use sn 17.02 mm Maximum spring deflection in static use Fndyn 353.916 N maximum force in dynamic use Lndyn 57.07 mm Minimum length in dynamic use shdyn 6.75 mm Maximum stroke in dynamic use S 4.426 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 24.698 N/mm Spring rate Weight 29.9704 g weight of one spring Fntol 49.47 N (+/-) tolerance of maximum force in static use Fndtol 48.31 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.47 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm force-path-calculation Compression spring VD-288X Inquiry formular Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm Inquiry formular Compression spring VD-288X Similar compression springs to Compression spring VD-288X Stainless steel Ø 2.8 x 11.2 x 71.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288X 1.4310 2.8 14 71.4 420.313 54.38 17.02 15.5 24.698 100.0 | 100.0 | 100.0 | 100.0 D-288X EN 10270-1 2.8 14 71.4 489.365 54.38 17.02 15.5 28.755 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-252AC 15 66.2 5.098 1.4310 168.819 33.08 33.12 50.7 | 85.8 | 45.8 | 20.6 VD-252A-07 14.8 64 5.135 1.4310 153.041 34.2 29.8 50.9 | 85.2 | 46.8 | 20.8 VD-257E 14 73.1 5.227 1.4310 174.195 39.77 33.33 52.4 | 89.7 | 46.3 | 21.2 VD-263Q-01 15 77 5.283 1.4310 136.113 51.24 25.76 52.9 | 88.2 | 49.2 | 21.4 VD-256 14.5 71 5.734 1.4310 215.327 33.45 37.55 53.5 | 89.1 | 48.3 | 23.2 VD-257D-01 14 60 6.001 1.4310 149.086 35.16 24.84 53.8 | 85.2 | 52.0 | 24.3 VD-263Q 15 77 6.306 1.4310 210.351 43.64 33.36 54.8 | 88.2 | 50.5 | 25.5 VD-263P-02 15 68 7.24 1.4310 213.013 38.58 29.42 57.5 | 89.0 | 54.3 | 29.3 VD-257E-11 13 68 7.254 1.4310 223.31 37.22 30.78 56.7 | 86.5 | 54.2 | 29.4 VD-263V-16 15.2 76 7.91 1.4310 183.579 52.79 23.21 60.4 | 90.6 | 58.5 | 32.0 VD-287A 15 67.5 9.459 1.4310 93.56 57.61 9.89 57.0 | 92.4 | 40.2 | 38.3 VD-287 15 67.5 14 1.4310 377.344 40.55 26.95 75.2 | 92.4 | 76.5 | 56.7 VD-288E 13 66.2 19.049 1.4310 334.301 48.65 17.55 85.7 | 91.6 | 88.3 | 77.1 VD-288T-08 15 76 19.746 1.4310 454.226 53 23 86.3 | 95.8 | 83.3 | 80.0 VD-288X 14 71.4 24.698 1.4310 420.313 54.38 17.02 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring VD-288X Country of origin: DE, German; Compression spring VD-288X Product image - Compression springs VD-288X QR-Code: Compression spring VD-288X
