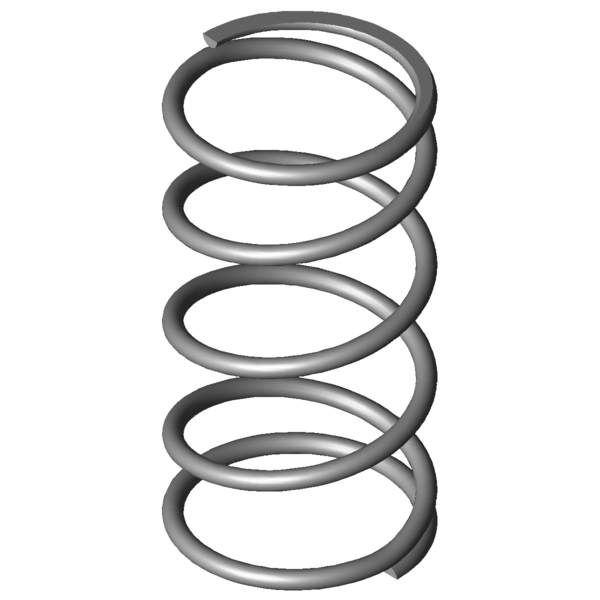

Home » Products » Compression springs » vd-179j-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm Scaled prices - Compression spring VD-179J-01 Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-179J-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-179J-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.1 mm Wire diameter Di mm Inner coil diameter D 12.9 mm Mean coil diameter De 14 mm Outer coil diameter Dd 11.1 mm maximum diameter of mandrel Dh 15 mm minimum diameter of bush L0 27 mm unstressed spring length Lk mm buckling length Fn 33.711 N maximum force in static use Ln 7.23 mm Minimum length in static use sn 19.77 mm Maximum spring deflection in static use Fndyn 32.703 N maximum force in dynamic use Lndyn 7.82 mm Minimum length in dynamic use shdyn 6.3 mm Maximum stroke in dynamic use S 7.4 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 1.705 N/mm Spring rate Weight 1.6744 g weight of one spring Fntol 2.63 N (+/-) tolerance of maximum force in static use Fndtol 2.62 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.25 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm Metal spring characteristic download pdf file CAD data Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm force-path-calculation Compression spring VD-179J-01 Inquiry formular Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm Inquiry formular Compression spring VD-179J-01 Similar compression springs to Compression spring VD-179J-01 Stainless steel Ø 1.1 x 12.9 x 27 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-179J-01 1.4310 1.1 14 27 33.711 7.23 19.77 3.5 1.705 100.0 | 100.0 | 100.0 | 100.0 D-179J-01 EN 10270-1 1.1 14 27 39.249 7.23 19.77 3.5 1.985 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145H-10 14 30 1.138 1.4310 26.471 6.74 23.26 80.7 | 93.6 | 81.8 | 66.7 VD-146 13.5 24 1.28 1.4310 22.182 6.67 17.33 81.3 | 92.1 | 76.7 | 75.1 VD-179J-01 14 27 1.705 1.4310 33.711 7.23 19.77 100.0 | 100.0 | 100.0 | 100.0 VD-180M-21 15 25 1.973 1.4310 33.731 7.9 17.1 90.7 | 92.5 | 93.2 | 86.4 VD-190C 13 27 2.394 1.4310 38.371 10.97 16.03 83.1 | 93.6 | 84.5 | 71.2 VD-186 13.75 27 3.125 1.4310 57.188 8.7 18.3 75.2 | 95.4 | 75.8 | 54.6 VD-207K 13.8 23 3.662 1.4310 30.366 14.71 8.29 66.1 | 85.7 | 66.0 | 46.6 VD-207J-31 14 28 3.78 1.4310 53.534 13.84 14.16 67.4 | 89.9 | 67.3 | 45.1 VD-206E 15 25.8 3.818 1.4310 64.587 8.88 16.92 67.6 | 89.2 | 68.9 | 44.7 VD-207 13.4 23 3.891 1.4310 45.63 11.27 11.73 65.6 | 86.5 | 66.6 | 43.8 VD-207J-32 14 30.4 4.124 1.4310 72.022 12.93 17.47 53.5 | 86.0 | 50.5 | 24.1 VD-207J-21 15.5 29 4.612 1.4310 86.02 10.35 18.65 63.1 | 85.6 | 66.8 | 37.0 VD-207J-33 14 31 5.04 1.4310 95.76 12 19 56.8 | 86.6 | 54.4 | 29.5 VD-218A 14.1 26 5.338 1.4310 65.736 13.69 12.31 58.9 | 88.1 | 56.8 | 31.9 VD-207KB 12.5 26.2 6.051 1.4310 81.444 12.74 13.46 61.0 | 85.1 | 62.4 | 35.4 VD-222A-14 12.7 26 7.624 1.4310 94.913 13.55 12.45 52.3 | 85.3 | 49.2 | 22.4 VD-218 14.1 24 8.389 1.4310 113.666 10.45 13.55 51.7 | 85.6 | 49.1 | 20.3 VD-233 13 28 8.717 1.4310 76.416 19.23 8.77 49.1 | 83.5 | 44.2 | 19.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-179J-01 Country of origin: DE, German; Compression spring VD-179J-01 Product image - Compression springs VD-179J-01 QR-Code: Compression spring VD-179J-01
