Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

Scaled prices - Compression spring VD-180-14

Quantity	Single price [EUR]
1	5.2700 EUR
2	3.7200 EUR
3	3.5400 EUR
7	2.5100 EUR
17	1.2200 EUR
37	0.9000 EUR
75	0.7300 EUR
125	0.5070 EUR
175	0.4444 EUR
250	0.4132 EUR
350	0.3853 EUR
450	0.3536 EUR

Compression spring Buy

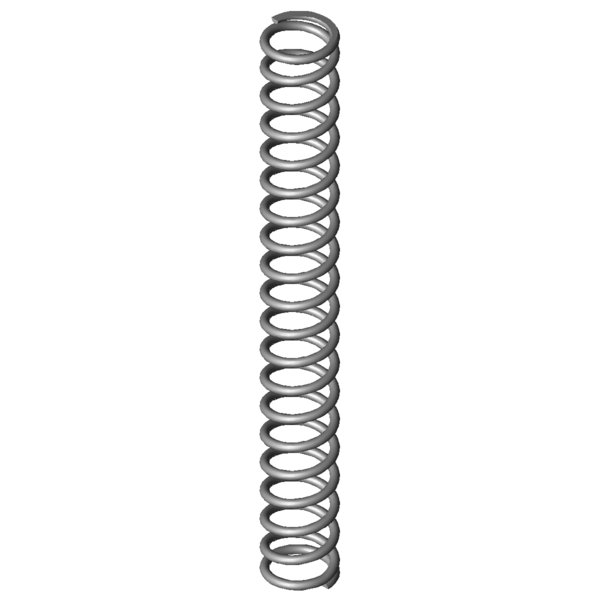

Product image Compression spring VD-180-14

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-180-14

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.9	mm	Mean coil diameter
De	9	mm	Outer coil diameter
Dd	6.2	mm	maximum diameter of mandrel
Dh	9.7	mm	minimum diameter of bush
L0	74	mm	unstressed spring length
Lk	63.62	mm	buckling length
Fn	61.658	N	maximum force in static use
Ln	30.1	mm	Minimum length in static use
sn	43.9	mm	Maximum spring deflection in static use
Fndyn	51.265	N	maximum force in dynamic use
Lndyn	37.5	mm	Minimum length in dynamic use
shdyn	9.78	mm	Maximum stroke in dynamic use
S	3.941	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.405	N/mm	Spring rate
Weight	3.822	g	weight of one spring
Fntol	3.5	N	(+/-) tolerance of maximum force in static use
Fndtol	3.48	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	1.81	mm	(+/-) tolerance of unstressed spring length
Price group	K	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

force-path-calculation Compression spring VD-180-14

Inquiry formular Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

Inquiry formular Compression spring VD-180-14

Similar compression springs to Compression spring VD-180-14 Stainless steel Ø 1.1 x 7.9 x 74 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-180-14	1.4310	1.1	9	74	61.658	30.1	43.9	18.5	1.405	100.0 \| 100.0 \| 100.0 \| 100.0
D-180-14	EN 10270-1	1.1	9	74	73.014	29.35	44.65	18.5	1.635	92.4 \| 100.0 \| 91.4 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-095	8.63	80.5	0.146	1.4310	9.255	16.9	63.6	44.7 \| 81.7 \| 42.0 \| 10.4
VD-090Z	10.5	72.4	0.151	1.4310	9.409	10.05	62.35	44.6 \| 80.3 \| 42.8 \| 10.7
VD-127A	8.8	68	0.311	1.4310	13.658	24.1	43.9	56.9 \| 87.5 \| 61.1 \| 22.2
VD-115H-04	8	63	0.327	1.4310	15.387	15.99	47.01	53.9 \| 79.2 \| 59.2 \| 23.3
VD-122A-13	10	62.5	0.368	1.4310	17.643	14.58	47.92	56.2 \| 82.4 \| 60.1 \| 26.2
VD-127	8.8	68	0.378	1.4310	18.124	20.1	47.9	58.3 \| 87.5 \| 60.5 \| 26.9
VD-143D	10	76.3	0.491	1.4310	28.023	19.28	57.02	61.9 \| 89.6 \| 61.2 \| 35.0
VD-143H	9.5	65	0.669	1.4310	31.958	17.2	47.8	69.2 \| 88.1 \| 71.8 \| 47.6
VD-165A	9	59	0.76	1.4310	22.855	28.91	30.09	65.7 \| 90.2 \| 52.8 \| 54.1
VD-166E	8.3	64	0.918	1.4310	30.38	30.91	33.09	72.5 \| 89.9 \| 62.3 \| 65.4
VD-165	9	59	0.924	1.4310	32.216	24.13	34.87	73.9 \| 90.2 \| 65.8 \| 65.8
VD-166N	8	69.7	1.134	1.4310	46.821	28.4	41.3	85.7 \| 91.3 \| 85.0 \| 80.7
VD-180-07	8.3	76	1.144	1.4310	40.477	40.62	35.38	83.7 \| 96.5 \| 73.1 \| 81.5
VD-180-06	8.3	64	1.401	1.4310	42.62	33.58	30.42	87.3 \| 92.9 \| 69.2 \| 99.8
VD-180-14	9	74	1.405	1.4310	61.658	30.1	43.9	100.0 \| 100.0 \| 100.0 \| 100.0
VD-200A	9.25	69	1.854	1.4310	62.742	35.17	33.83	85.4 \| 92.8 \| 87.7 \| 75.7
VD-200	9.25	69	2.255	1.4310	89.404	29.36	39.64	78.3 \| 92.8 \| 79.6 \| 62.3
VD-199B	9.25	58	2.529	1.4310	79.768	26.45	31.55	72.7 \| 87.9 \| 74.6 \| 55.6
VD-207D-08	8.6	76	3.216	1.4310	91.746	47.48	28.52	66.7 \| 90.5 \| 66.1 \| 43.7
VD-207KP	10	75	3.519	1.4310	129.109	38.31	36.69	64.3 \| 87.3 \| 65.7 \| 39.9
VD-207KO	10	67.7	3.519	1.4310	103.424	38.31	29.39	62.7 \| 84.9 \| 63.3 \| 39.9
VD-207D-07	8.6	64	3.832	1.4310	90.843	40.3	23.7	61.5 \| 86.9 \| 60.9 \| 36.6
VD-232A	9.6	65.5	4.978	1.4310	106.276	44.15	21.35	55.1 \| 83.7 \| 53.3 \| 28.2
VD-232A-08	9	76	5.241	1.4310	125.232	52.11	23.89	55.8 \| 88.7 \| 51.8 \| 26.8
VD-232	9.6	65.5	6.054	1.4310	173.328	36.87	28.63	52.4 \| 83.7 \| 50.4 \| 23.2
VD-232A-07	9	64	6.739	1.4310	153.385	41.24	22.76	50.6 \| 85.1 \| 46.0 \| 20.8
VD-234B-08	9.2	76	9.067	1.4310	197.29	54.24	21.76	47.1 \| 85.4 \| 40.4 \| 15.5
VD-234B-07	9.2	64	10.794	1.4310	192.8	46.14	17.86	43.7 \| 81.8 \| 36.3 \| 13.0

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring VD-180-14
