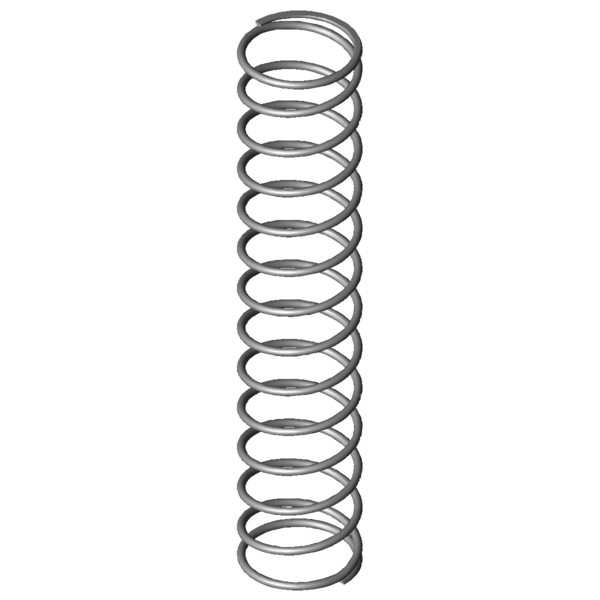

Home » Products » Compression springs » vd-207jt Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm Scaled prices - Compression spring VD-207JT Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-207JT Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-207JT Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.5 mm Wire diameter Di mm Inner coil diameter D 20.5 mm Mean coil diameter De 22 mm Outer coil diameter Dd 18.2 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 110 mm unstressed spring length Lk 36.76 mm buckling length Fn 33.369 N maximum force in static use Ln 28.88 mm Minimum length in static use sn 81.12 mm Maximum spring deflection in static use Fndyn 31.899 N maximum force in dynamic use Lndyn 32.45 mm Minimum length in dynamic use shdyn 47.7 mm Maximum stroke in dynamic use S 8.68 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.411 N/mm Spring rate Weight 13.0444 g weight of one spring Fntol 3.09 N (+/-) tolerance of maximum force in static use Fndtol 3.07 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 6.29 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm Metal spring characteristic download pdf file CAD data Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm force-path-calculation Compression spring VD-207JT Inquiry formular Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm Inquiry formular Compression spring VD-207JT Similar compression springs to Compression spring VD-207JT Stainless steel Ø 1.5 x 20.5 x 110 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-207JT 1.4310 1.5 22 110 33.369 28.88 81.12 12.5 0.411 100.0 | 100.0 | 100.0 | 100.0 D-207JT EN 10270-1 1.5 22 110 38.851 28.88 81.12 12.5 0.479 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DD 24 101 0.058 1.4310 4.334 25.67 75.33 50.1 | 83.4 | 52.9 | 14.0 VD-145DK 21 105 0.059 1.4310 4.23 33.45 71.55 50.2 | 85.9 | 50.4 | 14.4 VD-207JT 22 110 0.411 1.4310 33.369 28.88 81.12 100.0 | 100.0 | 100.0 | 100.0 VD-207J-73 20 112 0.666 1.4310 58.668 23.95 88.05 77.5 | 96.4 | 74.5 | 61.7 VD-212E 19.8 104 0.705 1.4310 51.328 31.15 72.85 76.2 | 92.8 | 77.4 | 58.4 VD-210 21.6 110 0.843 1.4310 71.132 25.65 84.35 72.5 | 97.3 | 71.5 | 48.8 VD-232M-02 20 118 1.051 1.4310 85.836 36.31 81.69 65.8 | 89.2 | 69.1 | 39.1 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 61.4 | 88.4 | 62.1 | 33.7 VD-247 21 115 1.512 1.4310 117.394 37.36 77.64 59.3 | 88.7 | 62.1 | 27.2 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 58.3 | 89.2 | 58.5 | 27.0 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 54.8 | 85.5 | 53.9 | 25.1 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 53.2 | 86.8 | 52.7 | 20.0 VD-277A 22.5 120 2.309 1.4310 137.839 60.32 59.69 50.0 | 83.1 | 48.9 | 17.8 VD-263M-05 19 106 2.62 1.4310 153.251 47.51 58.49 48.8 | 83.6 | 46.9 | 15.7 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 47.2 | 83.8 | 44.7 | 13.0 VD-276A 22.5 93 3.165 1.4310 150.755 45.37 47.64 44.7 | 80.8 | 40.4 | 13.0 VD-277 22.5 120 3.418 1.4310 255.322 45.3 74.7 49.3 | 83.1 | 52.6 | 12.0 VD-307A 23.2 105 6.199 1.4310 186.05 74.99 30.01 37.7 | 79.1 | 27.5 | 6.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-207JT Country of origin: DE, German; Compression spring VD-207JT Product image - Compression springs VD-207JT QR-Code: Compression spring VD-207JT
