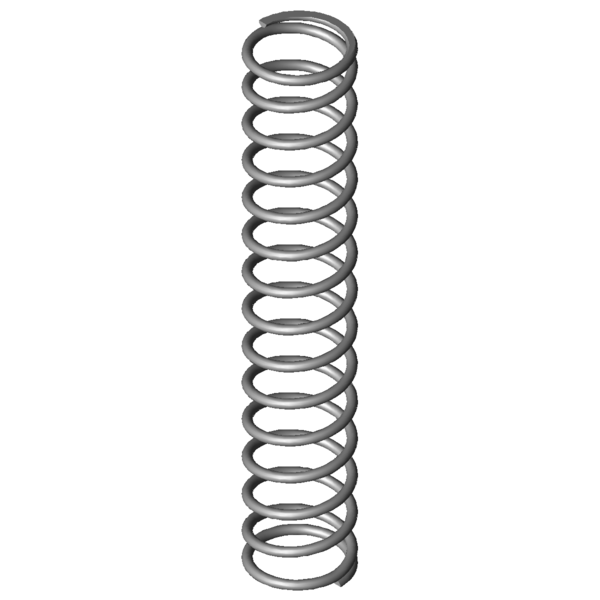

Home » Products » Compression springs » vd-247 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm Scaled prices - Compression spring VD-247 Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-247 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-247 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 19 mm Mean coil diameter De 21 mm Outer coil diameter Dd 16.3 mm maximum diameter of mandrel Dh 21.9 mm minimum diameter of bush L0 115 mm unstressed spring length Lk 67.57 mm buckling length Fn 117.394 N maximum force in static use Ln 37.36 mm Minimum length in static use sn 77.64 mm Maximum spring deflection in static use Fndyn 112.579 N maximum force in dynamic use Lndyn 40.54 mm Minimum length in dynamic use shdyn 27.24 mm Maximum stroke in dynamic use S 8.37 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 1.512 N/mm Spring rate Weight 22.9755 g weight of one spring Fntol 6.78 N (+/-) tolerance of maximum force in static use Fndtol 6.71 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 3.32 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm Metal spring characteristic download pdf file CAD data Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm force-path-calculation Compression spring VD-247 Inquiry formular Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm Inquiry formular Compression spring VD-247 Similar compression springs to Compression spring VD-247 Stainless steel Ø 2 x 19 x 115 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-247 1.4310 2 21 115 117.394 37.36 77.64 13.5 1.512 100.0 | 100.0 | 100.0 | 100.0 D-247 EN 10270-1 2 21 115 136.68 37.36 77.64 13.5 1.76 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DK 21 105 0.059 1.4310 4.23 33.45 71.55 44.1 | 80.4 | 47.9 | 3.9 VD-180Y-04 19 116 0.283 1.4310 25.419 26.17 89.83 52.3 | 84.0 | 54.0 | 18.7 VD-180L 20 130 0.287 1.4310 31.866 19.14 110.86 49.6 | 81.2 | 48.6 | 19.0 VD-206D-18 20.4 125 0.392 1.4310 38.461 26.9 98.1 56.1 | 86.4 | 56.0 | 25.9 VD-207JT 22 110 0.411 1.4310 33.369 28.88 81.12 59.3 | 88.7 | 62.1 | 27.2 VD-207J-73 20 112 0.666 1.4310 58.668 23.95 88.05 67.5 | 89.2 | 69.1 | 44.1 VD-212E 19.8 104 0.705 1.4310 51.328 31.15 72.85 67.9 | 88.2 | 68.8 | 46.6 VD-210 21.6 110 0.843 1.4310 71.132 25.65 84.35 74.3 | 91.0 | 76.3 | 55.8 VD-232M-02 20 118 1.051 1.4310 85.836 36.31 81.69 82.6 | 94.2 | 84.1 | 69.5 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 83.6 | 90.7 | 79.3 | 80.6 VD-247 21 115 1.512 1.4310 117.394 37.36 77.64 100.0 | 100.0 | 100.0 | 100.0 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 94.5 | 94.7 | 89.5 | 99.4 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 88.9 | 94.0 | 80.3 | 92.3 VD-277A 22.5 120 2.309 1.4310 137.839 60.32 59.69 78.7 | 89.7 | 81.0 | 65.5 VD-263VE 20 127 2.387 1.4310 171.413 55.18 71.82 78.3 | 90.9 | 80.5 | 63.4 VD-263M-05 19 106 2.62 1.4310 153.251 47.51 58.49 75.0 | 91.2 | 76.0 | 57.7 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 68.2 | 87.6 | 69.3 | 47.8 VD-277 22.5 120 3.418 1.4310 255.322 45.3 74.7 68.4 | 89.7 | 71.1 | 44.2 VD-278D 19.5 125 3.761 1.4310 247.884 59.08 65.92 64.9 | 88.3 | 66.1 | 40.2 VD-288Z-54 21 124 6.569 1.4310 354.421 70.05 53.95 53.6 | 86.5 | 51.3 | 23.0 VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 51.7 | 84.8 | 48.2 | 22.2 VD-308A-05 22 113 8.369 1.4310 383.166 67.21 45.79 49.4 | 85.4 | 44.8 | 18.1 VD-288X-11 19.4 115 8.747 1.4310 468.411 61.45 53.55 50.5 | 87.1 | 47.0 | 17.3 VD-313A 19.2 120 9.956 1.4310 315.591 88.3 31.7 45.8 | 83.3 | 39.0 | 15.2 VD-313 19.2 120 12.108 1.4310 560.121 73.74 46.26 45.3 | 83.3 | 40.3 | 12.5 VD-308B 21.2 120 12.586 1.4310 554.404 75.95 44.05 45.6 | 85.8 | 39.0 | 12.0 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-247 Country of origin: DE, German; Compression spring VD-247 Product image - Compression springs VD-247 QR-Code: Compression spring VD-247
