Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

Scaled prices - Compression spring VD-263VE

Quantity Single price [EUR]
1 5.6700 EUR
2 4.0000 EUR
3 3.8100 EUR
7 2.9900 EUR
17 1.5200 EUR
37 1.2000 EUR
75 1.0100 EUR
125 0.7829 EUR
175 0.7387 EUR
250 0.6198 EUR
350 0.5936 EUR
450 0.5368 EUR

Compression spring Buy

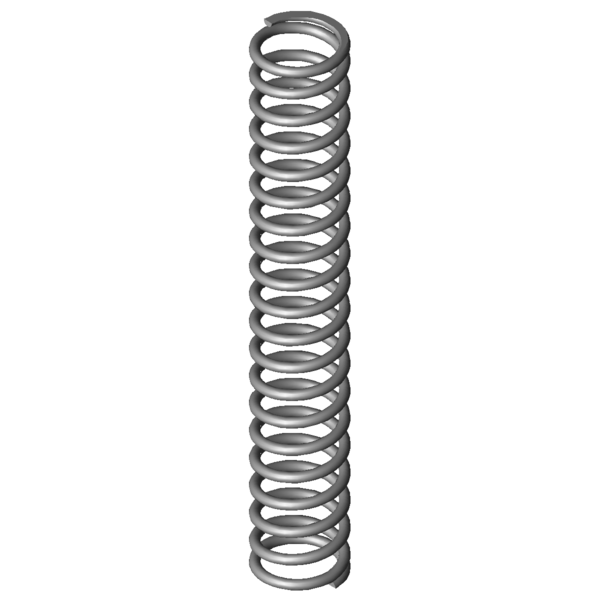

Product image Compression spring VD-263VE
Product image Compression spring VD-263VE
Quantity: Add to shopping cart

Technical Data - Compression spring VD-263VE

Formula symbols Value Unit Description
Material 1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 2.3 mm Wire diameter
Di mm Inner coil diameter
D 17.7 mm Mean coil diameter
De 20 mm Outer coil diameter
Dd 14.7 mm maximum diameter of mandrel
Dh 20.9 mm minimum diameter of bush
L0 127 mm unstressed spring length
Lk 94.92 mm buckling length
Fn 171.413 N maximum force in static use
Ln 55.18 mm Minimum length in static use
sn 71.82 mm Maximum spring deflection in static use
Fndyn 161.829 N maximum force in dynamic use
Lndyn 59.2 mm Minimum length in dynamic use
shdyn 29.2 mm Maximum stroke in dynamic use
S 6.741 mm pitch of spring
n 18.5 pc. number of active coils
nt pc. total number of coils
R 2.387 N/mm Spring rate
Weight 37.4372 g weight of one spring
Fntol 10.96 N (+/-) tolerance of maximum force in static use
Fndtol 10.79 N (+/-) tolerance of maximum dynamic force
Detol 0.35 mm (+/-) tolerances of outer coil diameter
L0tol 2.87 mm (+/-) tolerance of unstressed spring length
Price group N - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force
Technical drawing Compression spring
Technical drawing Compression spring

Datasheet Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

force-path-calculation Compression spring VD-263VE

Inquiry formular Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

Inquiry formular Compression spring VD-263VE

Similar compression springs to Compression spring VD-263VE Stainless steel Ø 2.3 x 17.7 x 127 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
VD-263VE 1.4310 2.3 20 127 171.413 55.18 71.82 18.5 2.387 100.0 | 100.0 | 100.0 | 100.0
D-263VE EN 10270-1 2.3 20 127 199.574 55.18 71.82 18.5 2.779 92.9 | 100.0 | 92.9 | 85.9
Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
VD-180Y-04 19 116 0.283 1.4310 25.419 26.17 89.83 46.5 | 80.2 | 47.4 | 11.9
VD-180L 20 130 0.287 1.4310 31.866 19.14 110.86 45.7 | 83.3 | 41.7 | 12.0
VD-206D-18 20.4 125 0.392 1.4310 38.461 26.9 98.1 50.0 | 85.8 | 47.8 | 16.4
VD-207JZ 18.5 129 0.487 1.4310 43.926 38.87 90.13 52.8 | 85.4 | 52.7 | 20.4
VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 50.8 | 82.9 | 47.9 | 21.7
VD-206D-04 17.4 122 0.657 1.4310 61.155 28.85 93.15 55.1 | 81.3 | 56.4 | 27.5
VD-207J-73 20 112 0.666 1.4310 58.668 23.95 88.05 56.8 | 84.5 | 57.9 | 27.9
VD-212E 19.8 104 0.705 1.4310 51.328 31.15 72.85 59.1 | 83.5 | 64.3 | 29.5
VD-243A 22 135 0.946 1.4310 80.169 50.25 84.75 65.3 | 90.6 | 65.8 | 39.6
VD-232N 20 139 0.983 1.4310 98.724 38.57 100.43 65.2 | 89.9 | 64.6 | 41.2
VD-232M-02 20 118 1.051 1.4310 85.836 36.31 81.69 67.8 | 90.4 | 69.0 | 44.0
VD-243 22 135 1.4 1.4310 134.68 38.8 96.2 75.3 | 90.6 | 76.6 | 58.7
VD-247 21 115 1.512 1.4310 117.394 37.36 77.64 78.3 | 90.9 | 80.5 | 63.4
VD-277A 22.5 120 2.309 1.4310 137.839 60.32 59.69 90.1 | 91.8 | 81.8 | 96.8
VD-263VE 20 127 2.387 1.4310 171.413 55.18 71.82 100.0 | 100.0 | 100.0 | 100.0
VD-277 22.5 120 3.418 1.4310 255.322 45.3 74.7 81.1 | 91.8 | 81.6 | 69.8
VD-283A 18.5 130 3.709 1.4310 221.296 70.33 59.67 79.6 | 94.1 | 80.3 | 64.4
VD-278D 19.5 125 3.761 1.4310 247.884 59.08 65.92 80.0 | 96.0 | 80.5 | 63.5
VD-283 18.5 130 4.511 1.4310 319.352 59.2 70.8 74.4 | 94.1 | 76.1 | 52.9
VD-288Z-57 20 150 5.77 1.4310 334.034 92.11 57.89 64.8 | 87.1 | 66.0 | 41.4
VD-288Z-54 21 124 6.569 1.4310 354.421 70.05 53.95 62.6 | 89.8 | 61.7 | 36.3
VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 60.5 | 87.2 | 59.3 | 35.0
VD-288X-12 19.4 127 7.762 1.4310 469.187 66.55 60.45 61.1 | 92.1 | 60.4 | 30.8
VD-288X-11 19.4 115 8.747 1.4310 468.411 61.45 53.55 57.3 | 89.0 | 55.6 | 27.3
VD-313A 19.2 120 9.956 1.4310 315.591 88.3 31.7 53.6 | 87.5 | 49.2 | 24.0
VD-313 19.2 120 12.108 1.4310 560.121 73.74 46.26 51.6 | 87.5 | 47.5 | 19.7
VD-308B 21.2 120 12.586 1.4310 554.404 75.95 44.05 50.7 | 86.9 | 46.1 | 19.0
VD-313A-12 19.5 127 12.846 1.4310 631.55 77.84 49.16 51.8 | 89.1 | 47.8 | 18.6
VD-313A-11 19.5 115 14.357 1.4310 641.222 70.34 44.66 49.0 | 85.9 | 44.5 | 16.6
VD-339A-06 21 125 24.645 1.4310 828.073 91.4 33.6 42.4 | 83.7 | 33.7 | 9.7
Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring VD-263VE

Country of origin: DE, German; Compression spring VD-263VE
