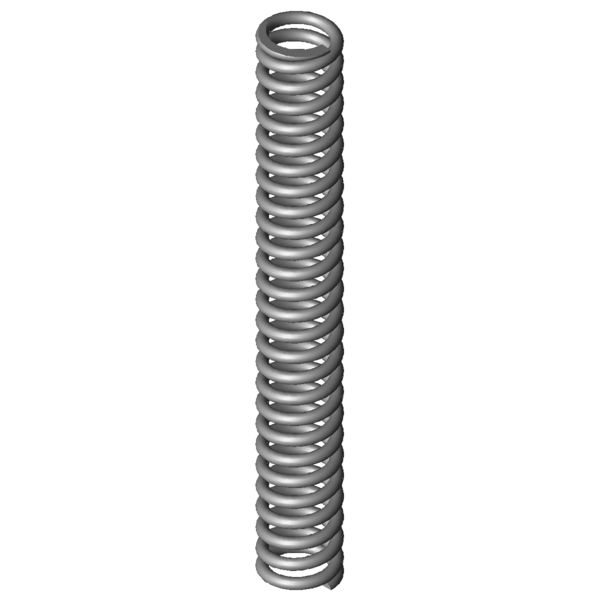

Home » Products » Compression springs » vd-288z-57 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm Scaled prices - Compression spring VD-288Z-57 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288Z-57 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288Z-57 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3 mm Wire diameter Di mm Inner coil diameter D 17 mm Mean coil diameter De 20 mm Outer coil diameter Dd 13.3 mm maximum diameter of mandrel Dh 20.8 mm minimum diameter of bush L0 150 mm unstressed spring length Lk 126.55 mm buckling length Fn 334.034 N maximum force in static use Ln 92.11 mm Minimum length in static use sn 57.89 mm Maximum spring deflection in static use Fndyn 301.965 N maximum force in dynamic use Lndyn 97.67 mm Minimum length in dynamic use shdyn 25.58 mm Maximum stroke in dynamic use S 5.88 mm pitch of spring n 25 pc. number of active coils nt pc. total number of coils R 5.77 N/mm Spring rate Weight 80.5704 g weight of one spring Fntol 27.42 N (+/-) tolerance of maximum force in static use Fndtol 26.86 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.19 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm force-path-calculation Compression spring VD-288Z-57 Inquiry formular Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm Inquiry formular Compression spring VD-288Z-57 Similar compression springs to Compression spring VD-288Z-57 Stainless steel Ø 3 x 17 x 150 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288Z-57 1.4310 3 20 150 334.034 92.11 57.89 25 5.77 100.0 | 100.0 | 100.0 | 100.0 D-288Z-57 EN 10270-1 3 20 150 388.911 92.11 57.89 25 6.718 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 41.7 | 82.9 | 33.2 | 9.0 VD-211 21.6 165 0.573 1.4310 70.992 41.2 123.8 41.0 | 78.9 | 34.0 | 9.9 VD-243A 22 135 0.946 1.4310 80.169 50.25 84.75 48.4 | 82.5 | 46.2 | 16.4 VD-232N 20 139 0.983 1.4310 98.724 38.57 100.43 48.3 | 84.2 | 43.6 | 17.0 VD-232M-02 20 118 1.051 1.4310 85.836 36.31 81.69 48.7 | 79.6 | 48.3 | 18.2 VD-243B 22 149 1.129 1.4310 119.96 42.75 106.25 50.1 | 85.6 | 45.2 | 19.6 VD-243 22 135 1.4 1.4310 134.68 38.8 96.2 52.3 | 82.5 | 50.2 | 24.3 VD-252A 18 145 1.519 1.4310 132.435 57.82 87.18 54.6 | 84.4 | 53.0 | 26.3 VD-252 18 145 1.848 1.4310 168.127 54 91 57.8 | 84.4 | 57.0 | 32.0 VD-263VE 20 127 2.387 1.4310 171.413 55.18 71.82 64.8 | 87.1 | 66.0 | 41.4 VD-283A 18.5 130 3.709 1.4310 221.296 70.33 59.67 77.8 | 87.5 | 81.6 | 64.3 VD-278D 19.5 125 3.761 1.4310 247.884 59.08 65.92 78.1 | 88.1 | 81.0 | 65.2 VD-283 18.5 130 4.511 1.4310 319.352 59.2 70.8 84.8 | 87.5 | 88.7 | 78.2 VD-308A 23.2 155 5.097 1.4310 332.245 89.82 65.18 91.6 | 92.2 | 94.1 | 88.3 VD-288Z-57 20 150 5.77 1.4310 334.034 92.11 57.89 100.0 | 100.0 | 100.0 | 100.0 VD-308 23.2 155 6.199 1.4310 496.018 74.99 80.01 85.1 | 92.2 | 69.8 | 93.1 VD-288X-13 19.4 153 6.639 1.4310 468.079 82.5 70.5 87.0 | 97.2 | 76.7 | 86.9 VD-288X-12 19.4 127 7.762 1.4310 469.187 66.55 60.45 83.5 | 92.8 | 83.5 | 74.3 VD-313A-13 19.5 152 10.728 1.4310 644.819 91.9 60.1 74.5 | 95.7 | 74.1 | 53.8 VD-339A 24 150 12.444 1.4310 493.111 110.38 39.63 66.9 | 86.1 | 68.1 | 46.4 VD-313A-12 19.5 127 12.846 1.4310 631.55 77.84 49.16 68.3 | 91.0 | 68.9 | 44.9 VD-339 24 150 15.135 1.4310 875.189 92.18 57.83 64.4 | 86.1 | 69.0 | 38.1 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-288Z-57 Country of origin: DE, German; Compression spring VD-288Z-57 Product image - Compression springs VD-288Z-57 QR-Code: Compression spring VD-288Z-57
