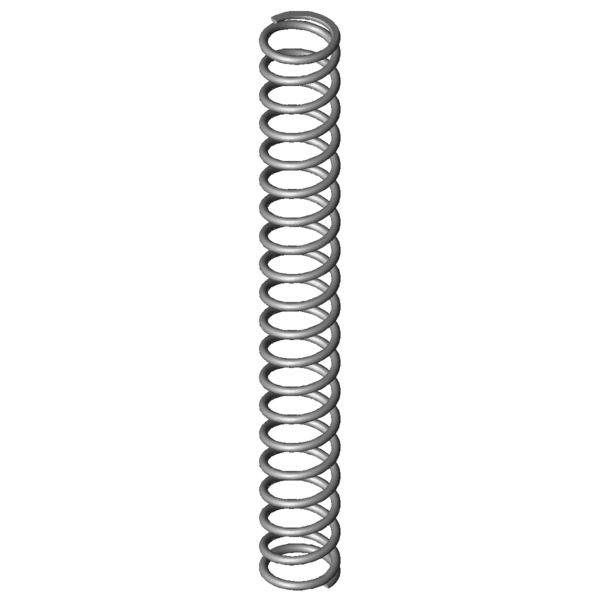

Home » Products » Compression springs » vd-252 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm Scaled prices - Compression spring VD-252 Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-252 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-252 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 16 mm Mean coil diameter De 18 mm Outer coil diameter Dd 13.5 mm maximum diameter of mandrel Dh 18.6 mm minimum diameter of bush L0 145 mm unstressed spring length Lk 123.11 mm buckling length Fn 168.127 N maximum force in static use Ln 54 mm Minimum length in static use sn 91 mm Maximum spring deflection in static use Fndyn 142.446 N maximum force in dynamic use Lndyn 67.9 mm Minimum length in dynamic use shdyn 19.7 mm Maximum stroke in dynamic use S 7.73 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 1.848 N/mm Spring rate Weight 25.589 g weight of one spring Fntol 8.6 N (+/-) tolerance of maximum force in static use Fndtol 8.01 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 3.21 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm Metal spring characteristic download pdf file CAD data Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm force-path-calculation Compression spring VD-252 Inquiry formular Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm Inquiry formular Compression spring VD-252 Similar compression springs to Compression spring VD-252 Stainless steel Ø 2 x 16 x 145 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-252 1.4310 2 18 145 168.127 54 91 18.5 1.848 100.0 | 100.0 | 100.0 | 100.0 D-252A EN 10270-1 2 18 145 154.192 57.82 87.18 22.5 1.769 96.5 | 100.0 | 93.8 | 95.7 D-252 EN 10270-1 2 18 145 195.21 54.25 90.75 18.5 2.151 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-180L 20 130 0.287 1.4310 31.866 19.14 110.86 48.7 | 79.9 | 50.5 | 15.6 VD-179J-14 15.9 125 0.316 1.4310 32.626 21.8 103.2 49.1 | 76.5 | 53.8 | 17.1 VD-179J-05 14 142 0.323 1.4310 36.522 28.78 113.22 48.5 | 76.9 | 51.0 | 17.5 VD-184 17.25 140 0.417 1.4310 44.769 32.7 107.3 54.4 | 85.0 | 55.7 | 22.6 VD-207JZ 18.5 129 0.487 1.4310 43.926 38.87 90.13 58.7 | 87.1 | 62.6 | 26.4 VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 57.0 | 86.8 | 56.1 | 28.1 VD-217A 17.6 165 0.622 1.4310 72.676 48.2 116.8 60.9 | 88.6 | 60.6 | 33.7 VD-206D-04 17.4 122 0.657 1.4310 61.155 28.85 93.15 62.1 | 83.6 | 67.0 | 35.5 VD-217 17.6 165 0.757 1.4310 88.805 47.65 117.35 64.9 | 88.6 | 65.2 | 41.0 VD-232N 20 139 0.983 1.4310 98.724 38.57 100.43 73.3 | 92.0 | 74.7 | 53.2 VD-217E 17 116 1.013 1.4310 83.138 33.93 82.07 69.8 | 84.8 | 69.8 | 54.8 VD-243B 22 149 1.129 1.4310 119.96 42.75 106.25 77.6 | 93.0 | 78.5 | 61.1 VD-252A-01 18 170 1.395 1.4310 149.827 62.6 107.4 85.8 | 95.1 | 86.9 | 75.5 VD-252A 18 145 1.519 1.4310 132.435 57.82 87.18 89.8 | 100.0 | 87.3 | 82.2 VD-252 18 145 1.848 1.4310 168.127 54 91 100.0 | 100.0 | 100.0 | 100.0 VD-263VE 20 127 2.387 1.4310 171.413 55.18 71.82 84.7 | 88.2 | 88.5 | 77.4 VD-283A-07 18 181 3.338 1.4310 321.785 84.59 96.41 71.8 | 86.7 | 73.3 | 55.4 VD-283A 18.5 130 3.709 1.4310 221.296 70.33 59.67 69.9 | 89.0 | 70.8 | 49.8 VD-278D 19.5 125 3.761 1.4310 247.884 59.08 65.92 68.5 | 86.2 | 70.1 | 49.1 VD-283 18.5 130 4.511 1.4310 319.352 59.2 70.8 65.1 | 89.0 | 65.2 | 41.0 VD-288Z-57 20 150 5.77 1.4310 334.034 92.11 57.89 57.8 | 84.4 | 57.0 | 32.0 VD-288X-13 19.4 153 6.639 1.4310 468.079 82.5 70.5 56.7 | 85.5 | 56.7 | 27.8 VD-288X-12 19.4 127 7.762 1.4310 469.187 66.55 60.45 52.7 | 83.1 | 51.1 | 23.8 VD-313A 19.2 120 9.956 1.4310 315.591 88.3 31.7 47.4 | 79.7 | 44.1 | 18.6 VD-313A-13 19.5 152 10.728 1.4310 644.819 91.9 60.1 48.7 | 82.8 | 46.1 | 17.2 VD-313 19.2 120 12.108 1.4310 560.121 73.74 46.26 45.1 | 79.7 | 40.4 | 15.3 VD-313A-12 19.5 127 12.846 1.4310 631.55 77.84 49.16 45.0 | 80.2 | 40.3 | 14.4 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-252 Country of origin: DE, German; Compression spring VD-252 Product image - Compression springs VD-252 QR-Code: Compression spring VD-252
