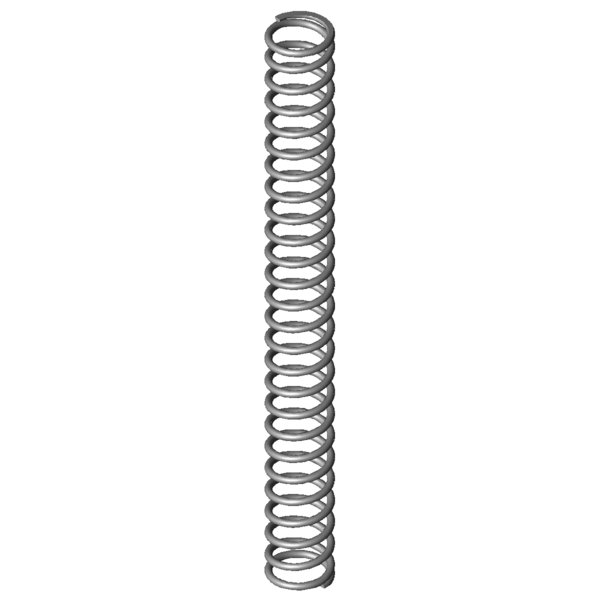

Home » Products » Compression springs » vd-252a-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm Scaled prices - Compression spring VD-252A-01 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-252A-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-252A-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 16 mm Mean coil diameter De 18 mm Outer coil diameter Dd 13.5 mm maximum diameter of mandrel Dh 18.6 mm minimum diameter of bush L0 170 mm unstressed spring length Lk 151.88 mm buckling length Fn 149.827 N maximum force in static use Ln 62.6 mm Minimum length in static use sn 107.4 mm Maximum spring deflection in static use Fndyn 142.439 N maximum force in dynamic use Lndyn 67.9 mm Minimum length in dynamic use shdyn 29.13 mm Maximum stroke in dynamic use S 6.857 mm pitch of spring n 24.5 pc. number of active coils nt pc. total number of coils R 1.395 N/mm Spring rate Weight 33.0785 g weight of one spring Fntol 8.04 N (+/-) tolerance of maximum force in static use Fndtol 7.94 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 4.15 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm Metal spring characteristic download pdf file CAD data Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm force-path-calculation Compression spring VD-252A-01 Inquiry formular Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm Inquiry formular Compression spring VD-252A-01 Similar compression springs to Compression spring VD-252A-01 Stainless steel Ø 2 x 16 x 170 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-252A-01 1.4310 2 18 170 149.827 62.6 107.4 24.5 1.395 100.0 | 100.0 | 100.0 | 100.0 D-252A-01 EN 10270-1 2 18 170 174.441 62.6 107.4 24.5 1.624 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-185A 17.25 205 0.232 1.4310 38.165 40.35 164.65 47.5 | 80.4 | 45.4 | 16.6 VD-207JU 22 162 0.278 1.4310 33.547 41.3 120.7 53.2 | 84.0 | 55.7 | 19.9 VD-184A 17.25 140 0.282 1.4310 29.99 33.62 106.38 53.3 | 80.2 | 59.5 | 20.2 VD-185 17.25 205 0.282 1.4310 44.796 46.1 158.9 49.8 | 80.4 | 48.7 | 20.2 VD-211A 21.6 165 0.387 1.4310 47.387 42.7 122.3 58.1 | 86.8 | 59.7 | 27.8 VD-184 17.25 140 0.417 1.4310 44.769 32.7 107.3 58.3 | 80.2 | 64.9 | 29.9 VD-206D-05 17.4 181 0.444 1.4310 61.172 43.1 137.9 59.3 | 86.9 | 59.4 | 31.8 VD-207JZ 18.5 129 0.487 1.4310 43.926 38.87 90.13 58.1 | 82.7 | 56.6 | 34.9 VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 62.4 | 84.8 | 65.1 | 37.1 VD-211 21.6 165 0.573 1.4310 70.992 41.2 123.8 65.0 | 86.8 | 67.1 | 41.1 VD-217A 17.6 165 0.622 1.4310 72.676 48.2 116.8 68.8 | 91.6 | 70.2 | 44.6 VD-217 17.6 165 0.757 1.4310 88.805 47.65 117.35 73.8 | 91.6 | 75.4 | 54.2 VD-247D-09 20 200 0.889 1.4310 115.617 69.96 130.04 78.4 | 91.7 | 79.9 | 63.7 VD-232N 20 139 0.983 1.4310 98.724 38.57 100.43 79.1 | 87.3 | 79.7 | 70.5 VD-252A-01 18 170 1.395 1.4310 149.827 62.6 107.4 100.0 | 100.0 | 100.0 | 100.0 VD-252A 18 145 1.519 1.4310 132.435 57.82 87.18 90.6 | 95.1 | 84.8 | 91.8 VD-252 18 145 1.848 1.4310 168.127 54 91 85.8 | 95.1 | 86.9 | 75.5 VD-278A 22.5 175 1.899 1.4310 195.062 72.28 102.73 81.8 | 85.7 | 86.2 | 73.5 VD-252A-20 15.5 167 1.997 1.4310 192.477 70.6 96.4 82.8 | 94.8 | 83.8 | 69.9 VD-278 22.5 175 2.309 1.4310 255.193 64.5 110.5 74.7 | 85.7 | 78.0 | 60.4 VD-283A-07 18 181 3.338 1.4310 321.785 84.59 96.41 67.1 | 91.3 | 68.2 | 41.8 VD-283A 18.5 130 3.709 1.4310 221.296 70.33 59.67 61.3 | 84.6 | 61.6 | 37.6 VD-283 18.5 130 4.511 1.4310 319.352 59.2 70.8 57.3 | 84.6 | 56.4 | 30.9 VD-288Z-57 20 150 5.77 1.4310 334.034 92.11 57.89 51.7 | 81.6 | 49.4 | 24.2 VD-288X-13 19.4 153 6.639 1.4310 468.079 82.5 70.5 51.3 | 83.9 | 48.8 | 21.0 VD-313A-13 19.5 152 10.728 1.4310 644.819 91.9 60.1 44.5 | 80.8 | 39.6 | 13.0 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-252A-01 Country of origin: DE, German; Compression spring VD-252A-01 Product image - Compression springs VD-252A-01 QR-Code: Compression spring VD-252A-01
