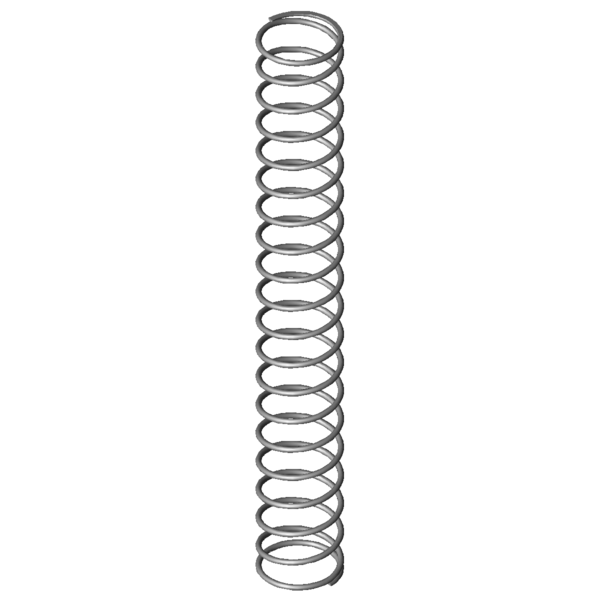

Home » Products » Compression springs » vd-207ju Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm Scaled prices - Compression spring VD-207JU Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-207JU Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-207JU Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.5 mm Wire diameter Di mm Inner coil diameter D 20.5 mm Mean coil diameter De 22 mm Outer coil diameter Dd 18.2 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 162 mm unstressed spring length Lk 128.56 mm buckling length Fn 33.547 N maximum force in static use Ln 41.3 mm Minimum length in static use sn 120.7 mm Maximum spring deflection in static use Fndyn 32.079 N maximum force in dynamic use Lndyn 46.58 mm Minimum length in dynamic use shdyn 70.59 mm Maximum stroke in dynamic use S 8.676 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.278 N/mm Spring rate Weight 18.4421 g weight of one spring Fntol 2.98 N (+/-) tolerance of maximum force in static use Fndtol 2.96 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 8.9 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm Metal spring characteristic download pdf file CAD data Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm force-path-calculation Compression spring VD-207JU Inquiry formular Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm Inquiry formular Compression spring VD-207JU Similar compression springs to Compression spring VD-207JU Stainless steel Ø 1.5 x 20.5 x 162 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-207JU 1.4310 1.5 22 162 33.547 41.3 120.7 18.5 0.278 100.0 | 100.0 | 100.0 | 100.0 D-207JU EN 10270-1 1.5 22 162 39.058 41.3 120.7 18.5 0.324 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DE 24 150 0.039 1.4310 4.392 37.03 112.97 50.3 | 83.6 | 53.3 | 14.0 VD-145D-04 18.5 157 0.121 1.4310 16.199 23.05 133.95 65.1 | 82.6 | 69.2 | 43.5 VD-207JO 26.5 152 0.227 1.4310 27.344 31.44 120.56 88.2 | 92.3 | 90.7 | 81.6 VD-207JU 22 162 0.278 1.4310 33.547 41.3 120.7 100.0 | 100.0 | 100.0 | 100.0 VD-206C 24 157 0.307 1.4310 41.189 22.63 134.37 90.1 | 94.0 | 85.6 | 90.7 VD-211A 21.6 165 0.387 1.4310 47.387 42.7 122.3 84.4 | 96.7 | 84.7 | 71.7 VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 74.8 | 94.9 | 75.9 | 53.6 VD-211 21.6 165 0.573 1.4310 70.992 41.2 123.8 72.5 | 96.7 | 72.4 | 48.5 VD-217A 17.6 165 0.622 1.4310 72.676 48.2 116.8 68.9 | 90.6 | 71.5 | 44.7 VD-217 17.6 165 0.757 1.4310 88.805 47.65 117.35 65.0 | 90.6 | 67.5 | 36.7 VD-244A 22 200 0.778 1.4310 108.694 60.25 139.75 59.9 | 85.3 | 58.6 | 35.7 VD-239A-05 25 139.5 0.921 1.4310 94.851 36.46 103.04 57.9 | 83.0 | 60.4 | 30.2 VD-243A 22 135 0.946 1.4310 80.169 50.25 84.75 57.2 | 86.1 | 56.0 | 29.4 VD-244 22 200 0.946 1.4310 134.419 57.9 142.1 56.6 | 85.3 | 54.9 | 29.4 VD-232N 20 139 0.983 1.4310 98.724 38.57 100.43 57.8 | 86.7 | 58.6 | 28.3 VD-243B 22 149 1.129 1.4310 119.96 42.75 106.25 57.2 | 89.0 | 58.0 | 24.6 VD-272A 27.5 165 1.182 1.4310 120.83 62.81 102.19 53.0 | 79.4 | 56.2 | 23.5 VD-263M 24 159 1.276 1.4310 143.047 46.93 112.07 55.3 | 86.0 | 58.2 | 21.8 VD-252A-01 18 170 1.395 1.4310 149.827 62.6 107.4 53.2 | 84.0 | 55.7 | 19.9 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-207JU Country of origin: DE, German; Compression spring VD-207JU Product image - Compression springs VD-207JU QR-Code: Compression spring VD-207JU
