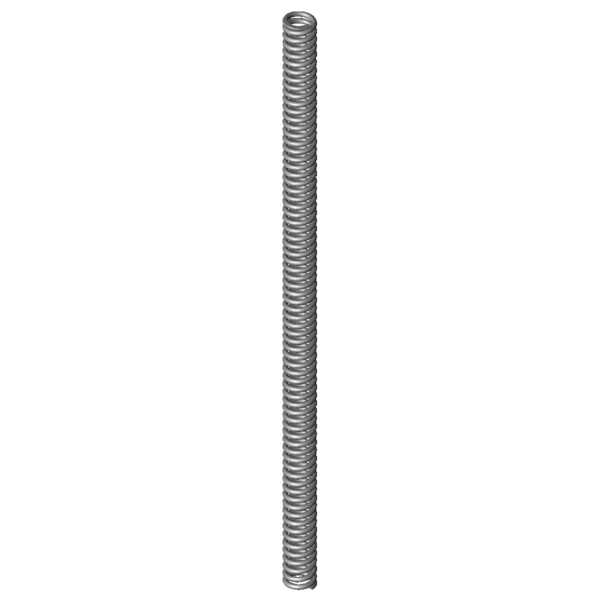

Home » Products » Compression springs » vd-263vg Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm Scaled prices - Compression spring VD-263VG Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-263VG Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263VG Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.4 mm Wire diameter Di mm Inner coil diameter D 12.6 mm Mean coil diameter De 15 mm Outer coil diameter Dd 9.5 mm maximum diameter of mandrel Dh 15.5 mm minimum diameter of bush L0 300 mm unstressed spring length Lk 294 mm buckling length Fn 214.482 N maximum force in static use Ln 196.55 mm Minimum length in static use sn 103.45 mm Maximum spring deflection in static use Fndyn 189.865 N maximum force in dynamic use Lndyn 208.42 mm Minimum length in dynamic use shdyn 60.79 mm Maximum stroke in dynamic use S 4.251 mm pitch of spring n 70 pc. number of active coils nt pc. total number of coils R 2.073 N/mm Spring rate Weight 101.9168 g weight of one spring Fntol 20.2 N (+/-) tolerance of maximum force in static use Fndtol 19.77 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 6.8 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm force-path-calculation Compression spring VD-263VG Inquiry formular Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm Inquiry formular Compression spring VD-263VG Similar compression springs to Compression spring VD-263VG Stainless steel Ø 2.4 x 12.6 x 300 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263VG 1.4310 2.4 15 300 214.482 196.55 103.45 70 2.073 100.0 | 100.0 | 100.0 | 100.0 D-263VG EN 10270-1 2.4 15 300 249.719 196.55 103.45 70 2.414 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-185J 15 125 0.401 1.4310 35.957 35.3 89.7 45.2 | 64.6 | 51.7 | 19.3 VD-206D-05 17.4 181 0.444 1.4310 61.172 43.1 137.9 47.2 | 68.3 | 51.8 | 21.4 VD-185H 15 112 0.444 1.4310 35.491 32.1 79.9 43.8 | 63.1 | 46.9 | 21.4 VD-180M-25 15 115 0.445 1.4310 39.375 26.6 88.4 45.4 | 62.8 | 51.9 | 21.5 VD-190A 13.75 130 0.486 1.4310 44.889 37.66 92.34 47.0 | 62.4 | 55.1 | 23.4 VD-190 13.75 130 0.591 1.4310 57.407 32.9 97.1 50.4 | 62.4 | 60.3 | 28.5 VD-217A 17.6 165 0.622 1.4310 72.676 48.2 116.8 53.4 | 69.0 | 61.2 | 30.0 VD-217 17.6 165 0.757 1.4310 88.805 47.65 117.35 56.7 | 69.0 | 64.8 | 36.5 VD-206H 15 105 0.862 1.4310 64.882 29.74 75.26 52.5 | 64.4 | 51.5 | 41.6 VD-252AG 15 305 0.93 1.4310 131.742 163.38 141.62 68.7 | 93.9 | 67.2 | 44.9 VD-207KQ 10 260 0.981 1.4310 127.984 129.59 130.41 62.9 | 71.9 | 69.5 | 47.3 VD-252A-01 18 170 1.395 1.4310 149.827 62.6 107.4 74.9 | 74.4 | 83.1 | 67.3 VD-233T-10 15 130 1.426 1.4310 95.413 63.11 66.89 65.4 | 72.8 | 54.6 | 68.8 VD-252A-20 15.5 167 1.997 1.4310 192.477 70.6 96.4 88.8 | 78.6 | 91.5 | 96.3 VD-263VG 15 300 2.073 1.4310 214.482 196.55 103.45 100.0 | 100.0 | 100.0 | 100.0 VD-252AF 15 120 2.832 1.4310 180.261 56.35 63.65 73.5 | 74.4 | 72.8 | 73.2 VD-263M-10 15.4 240 2.875 1.4310 264.055 148.15 91.85 82.3 | 89.7 | 85.0 | 72.1 VD-283A-07 18 181 3.338 1.4310 321.785 84.59 96.41 74.0 | 79.9 | 79.9 | 62.1 VD-283A-19 15.5 224 3.661 1.4310 358.061 126.18 97.82 74.3 | 89.1 | 77.2 | 56.6 VD-288T-10 15 102 14.809 1.4310 491.743 68.79 33.21 41.7 | 73.2 | 37.9 | 14.0 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-263VG Country of origin: DE, German; Compression spring VD-263VG Product image - Compression springs VD-263VG QR-Code: Compression spring VD-263VG
