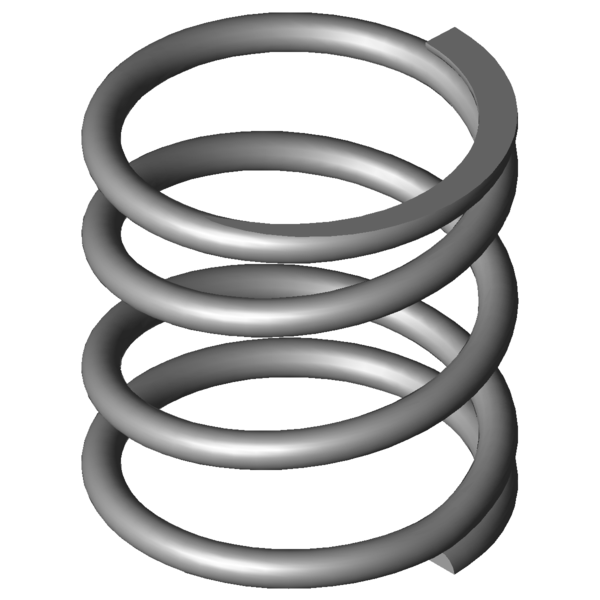

Home » Products » Compression springs » vd-268g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm Scaled prices - Compression spring VD-268G Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-268G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-268G Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 27.5 mm Outer coil diameter Dd 21.8 mm maximum diameter of mandrel Dh 28.8 mm minimum diameter of bush L0 28.5 mm unstressed spring length Lk mm buckling length Fn 159.931 N maximum force in static use Ln 12.05 mm Minimum length in static use sn 16.45 mm Maximum spring deflection in static use Fndyn 152.639 N maximum force in dynamic use Lndyn 12.8 mm Minimum length in dynamic use shdyn 6.5 mm Maximum stroke in dynamic use S 11.556 mm pitch of spring n 2.25 pc. number of active coils nt pc. total number of coils R 9.722 N/mm Spring rate Weight 12.9518 g weight of one spring Fntol 13.45 N (+/-) tolerance of maximum force in static use Fndtol 13.4 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 1.1 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm force-path-calculation Compression spring VD-268G Inquiry formular Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm Inquiry formular Compression spring VD-268G Similar compression springs to Compression spring VD-268G Stainless steel Ø 2.5 x 25 x 28.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-268G 1.4310 2.5 27.5 28.5 159.931 12.05 16.45 2.25 9.722 100.0 | 100.0 | 100.0 | 100.0 D-268G EN 10270-1 2.5 27.5 28.5 186.431 12.03 16.47 2.25 11.319 92.9 | 100.0 | 92.8 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DA 24 28.5 0.205 1.4310 4.083 8.63 19.87 40.2 | 75.8 | 42.7 | 2.1 VD-207P 23.6 27.5 1.077 1.4310 14.251 14.27 13.23 46.0 | 82.1 | 44.7 | 11.1 VD-212B 19.8 29 2.718 1.4310 50.422 10.45 18.55 55.4 | 78.1 | 60.1 | 28.0 VD-234K-01 30 34.5 2.834 1.4310 68.594 10.3 24.2 56.4 | 84.8 | 55.4 | 29.2 VD-239A-08 25 25 5.114 1.4310 77.477 9.85 15.15 69.7 | 86.2 | 70.3 | 52.6 VD-239A-12 23.5 25 6.261 1.4310 95.477 9.75 15.25 75.0 | 84.4 | 76.2 | 64.4 VD-247A 20.5 27 6.317 1.4310 90.982 12.6 14.4 73.4 | 83.1 | 72.2 | 65.0 VD-288K-20 30 34 7.636 1.4310 123.954 17.77 16.23 85.0 | 88.3 | 88.1 | 78.6 VD-263H-10 24 26.5 8.793 1.4310 139.812 10.6 15.9 90.6 | 89.4 | 92.0 | 90.4 VD-268G 27.5 28.5 9.722 1.4310 159.931 12.05 16.45 100.0 | 100.0 | 100.0 | 100.0 VD-288K-10 33 25 9.763 1.4310 119.724 12.74 12.26 87.0 | 86.8 | 74.7 | 99.6 VD-273B 22.5 27 12.207 1.4310 140.808 15.47 11.54 83.7 | 92.2 | 79.1 | 79.7 VD-263VA 20 27.8 12.616 1.4310 171.958 14.17 13.63 84.1 | 87.4 | 87.9 | 77.1 VD-288E-10 22.7 25 14.532 1.4310 118.868 16.82 8.18 72.2 | 87.6 | 62.0 | 66.9 VD-288Z-41 27 37.2 14.648 1.4310 273.076 18.56 18.64 75.3 | 86.0 | 73.4 | 66.4 VD-313J-01 31.6 33.3 19.128 1.4310 212.26 22.2 11.1 67.6 | 80.7 | 71.4 | 50.8 VD-303A-10 27.2 32 26.548 1.4310 418.133 16.25 15.75 64.1 | 88.7 | 67.0 | 36.6 VD-288P 20 27.2 30.199 1.4310 309.998 16.93 10.27 58.3 | 85.8 | 57.0 | 32.2 VD-288Z-30 21.5 30 31.982 1.4310 379.024 18.15 11.85 57.7 | 85.5 | 57.1 | 30.4 VD-303B 23.2 28 32.768 1.4310 282.583 19.38 8.62 57.0 | 86.9 | 54.5 | 29.7 VD-304 23.2 33.5 32.768 1.4310 462.807 19.38 14.12 57.5 | 82.5 | 60.2 | 29.7 VD-288Z-50 21 28.5 34.722 1.4310 360.521 18.12 10.38 56.1 | 86.6 | 53.7 | 28.0 VD-313K 25 33.3 42.846 1.4310 495.818 21.73 11.57 52.0 | 82.0 | 51.3 | 22.7 VD-334A-02 27 37 52.601 1.4310 678.557 24.1 12.9 49.6 | 79.2 | 51.0 | 18.5 VD-309 19.2 27.5 64 1.4310 535.04 19.14 8.36 45.7 | 81.5 | 40.4 | 15.2 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-268G Country of origin: DE, German; Compression spring VD-268G Product image - Compression springs VD-268G QR-Code: Compression spring VD-268G
