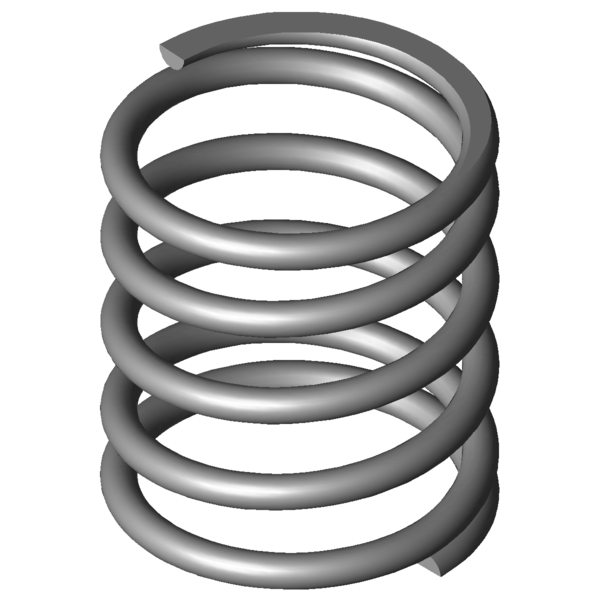

Home » Products » Compression springs » vd-288k-20 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm Scaled prices - Compression spring VD-288K-20 Quantity Single price [EUR] 1 6.1900 EUR 2 4.3600 EUR 3 4.1600 EUR 7 3.3600 EUR 17 2.1300 EUR 37 1.6200 EUR 75 1.5200 EUR 125 1.2327 EUR 175 1.1268 EUR 250 1.0518 EUR 350 0.9700 EUR 450 0.9095 EUR Compression spring Buy Product image Compression spring VD-288K-20 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288K-20 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 27.2 mm Mean coil diameter De 30 mm Outer coil diameter Dd 23.6 mm maximum diameter of mandrel Dh 31.3 mm minimum diameter of bush L0 34 mm unstressed spring length Lk mm buckling length Fn 123.954 N maximum force in static use Ln 17.77 mm Minimum length in static use sn 16.23 mm Maximum spring deflection in static use Fndyn 114.922 N maximum force in dynamic use Lndyn 18.95 mm Minimum length in dynamic use shdyn 12.82 mm Maximum stroke in dynamic use S 8.914 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 7.636 N/mm Spring rate Weight 22.8754 g weight of one spring Fntol 13.85 N (+/-) tolerance of maximum force in static use Fndtol 13.69 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.31 mm (+/-) tolerance of unstressed spring length Price group R - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm force-path-calculation Compression spring VD-288K-20 Inquiry formular Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm Inquiry formular Compression spring VD-288K-20 Similar compression springs to Compression spring VD-288K-20 Stainless steel Ø 2.8 x 27.2 x 34 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288K-20 1.4310 2.8 30 34 123.954 17.77 16.23 3.5 7.636 100.0 | 100.0 | 100.0 | 100.0 D-288K-20 EN 10270-1 2.8 30 34 144.317 17.77 16.23 3.5 8.89 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JQ 22 33.3 1.469 1.4310 33.868 10.25 23.05 47.7 | 74.9 | 48.9 | 19.2 VD-233E-22 30 42 1.82 1.4310 59.072 9.55 32.45 51.5 | 81.7 | 48.8 | 23.8 VD-234K-01 30 34.5 2.834 1.4310 68.594 10.3 24.2 62.8 | 90.0 | 61.2 | 37.1 VD-239A-01 25 40.5 3.288 1.4310 90.117 13.09 27.41 62.9 | 79.6 | 66.0 | 43.0 VD-268B 31 45 4.219 1.4310 120.943 16.33 28.67 73.2 | 87.2 | 77.1 | 55.2 VD-232K 20 34.1 4.353 1.4310 98.401 11.5 22.6 69.8 | 76.9 | 75.6 | 57.0 VD-239B 22 36.7 5 1.4310 119.75 12.75 23.95 75.6 | 79.1 | 82.2 | 65.5 VD-263J 24 39.2 5.653 1.4310 142.427 14 25.2 77.2 | 81.8 | 75.7 | 74.0 VD-288K-20 30 34 7.636 1.4310 123.954 17.77 16.23 100.0 | 100.0 | 100.0 | 100.0 VD-268G 27.5 28.5 9.722 1.4310 159.931 12.05 16.45 85.0 | 88.3 | 88.1 | 78.6 VD-273A-02 24 37.5 9.826 1.4310 215.193 15.6 21.9 76.7 | 86.7 | 65.9 | 77.7 VD-288F 22.7 34 10.568 1.4310 116.705 22.96 11.04 81.3 | 90.7 | 81.1 | 72.2 VD-274 22.5 36 12.207 1.4310 250.671 15.47 20.54 71.0 | 86.2 | 64.2 | 62.6 VD-288Z-31 28 40 12.96 1.4310 276.777 18.64 21.36 70.0 | 90.6 | 60.4 | 58.9 VD-288Z-41 27 37.2 14.648 1.4310 273.076 18.56 18.64 70.0 | 91.6 | 66.2 | 52.1 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 61.5 | 87.2 | 51.9 | 45.5 VD-313J-01 31.6 33.3 19.128 1.4310 212.26 22.2 11.1 64.5 | 90.2 | 63.4 | 39.9 VD-303A-10 27.2 32 26.548 1.4310 418.133 16.25 15.75 61.0 | 90.8 | 63.3 | 28.8 VD-313J-06 28.6 38.9 26.874 1.4310 454.935 21.97 16.93 58.9 | 86.8 | 61.6 | 28.4 VD-304 23.2 33.5 32.768 1.4310 462.807 19.38 14.12 56.0 | 87.8 | 56.9 | 23.3 VD-330 29 41 40.96 1.4310 687.296 24.22 16.78 53.1 | 83.2 | 57.4 | 18.6 VD-313K 25 33.3 42.846 1.4310 495.818 21.73 11.57 50.8 | 86.4 | 48.1 | 17.8 VD-339O 32 41.7 49.294 1.4310 714.4 27.21 14.49 49.3 | 79.2 | 53.3 | 15.5 VD-334A-02 27 37 52.601 1.4310 678.557 24.1 12.9 49.1 | 84.0 | 48.9 | 14.5 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-288K-20 Country of origin: DE, German; Compression spring VD-288K-20 Product image - Compression springs VD-288K-20 QR-Code: Compression spring VD-288K-20
