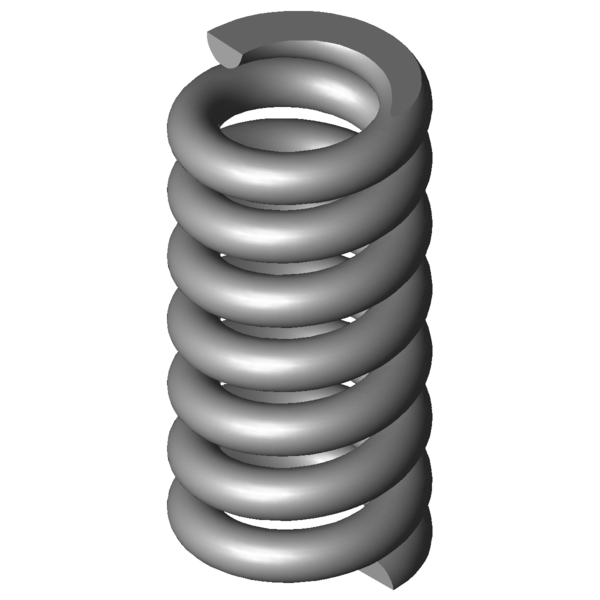

Home » Products » Compression springs » vd-288v Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm Scaled prices - Compression spring VD-288V Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-288V Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288V Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 11.2 mm Mean coil diameter De 14 mm Outer coil diameter Dd 7.7 mm maximum diameter of mandrel Dh 14.7 mm minimum diameter of bush L0 29 mm unstressed spring length Lk mm buckling length Fn 423.906 N maximum force in static use Ln 22.91 mm Minimum length in static use sn 6.09 mm Maximum spring deflection in static use Fndyn 357.06 N maximum force in dynamic use Lndyn 23.87 mm Minimum length in dynamic use shdyn 2.37 mm Maximum stroke in dynamic use S 4.764 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 69.602 N/mm Spring rate Weight 12.8445 g weight of one spring Fntol 57.83 N (+/-) tolerance of maximum force in static use Fndtol 56.66 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.62 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm force-path-calculation Compression spring VD-288V Inquiry formular Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm Inquiry formular Compression spring VD-288V Similar compression springs to Compression spring VD-288V Stainless steel Ø 2.8 x 11.2 x 29 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288V 1.4310 2.8 14 29 423.906 22.91 6.09 5.5 69.602 100.0 | 100.0 | 100.0 | 100.0 D-288V EN 10270-1 2.8 14 29 493.547 22.91 6.09 5.5 81.037 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-218 14.1 24 8.389 1.4310 113.666 10.45 13.55 42.6 | 79.7 | 35.9 | 12.1 VD-233 13 28 8.717 1.4310 76.416 19.23 8.77 46.9 | 84.6 | 43.7 | 12.5 VD-252A-33 15 28.5 12.138 1.4310 148.688 16.25 12.25 49.2 | 87.7 | 42.4 | 17.4 VD-252A-03 14.8 32 12.138 1.4310 184.786 16.78 15.22 48.3 | 85.5 | 41.8 | 17.4 VD-254 14.5 33 13.033 1.4310 211.853 16.74 16.26 49.2 | 85.3 | 43.7 | 18.7 VD-257C 14 28.5 14.731 1.4310 173.91 16.69 11.81 52.5 | 89.9 | 46.3 | 21.2 VD-252A-02 14.8 25 14.835 1.4310 156.465 14.45 10.55 50.9 | 84.1 | 47.3 | 21.3 VD-263O 15 30.2 17.771 1.4310 211.039 18.32 11.88 55.1 | 89.3 | 50.5 | 25.5 VD-263V-11 15.2 32 21.297 1.4310 199.643 22.63 9.37 58.7 | 89.5 | 56.0 | 30.6 VD-284A 15 27 31.818 1.4310 202.344 20.64 6.36 69.8 | 91.9 | 71.7 | 45.7 VD-285 15 32 31.818 1.4310 361.435 20.64 11.36 68.7 | 91.1 | 69.4 | 45.7 VD-283A-15 15.5 28 34.572 1.4310 351.553 17.83 10.17 71.0 | 92.1 | 71.4 | 49.7 VD-288T-03 15 32 49.364 1.4310 367.346 24.56 7.44 83.3 | 94.7 | 84.3 | 70.9 VD-288C 13 26.7 53.683 1.4310 333.435 20.49 6.21 85.6 | 91.4 | 88.4 | 77.1 VD-288V 14 29 69.602 1.4310 423.906 22.91 6.09 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring VD-288V Country of origin: DE, German; Compression spring VD-288V Product image - Compression springs VD-288V QR-Code: Compression spring VD-288V
