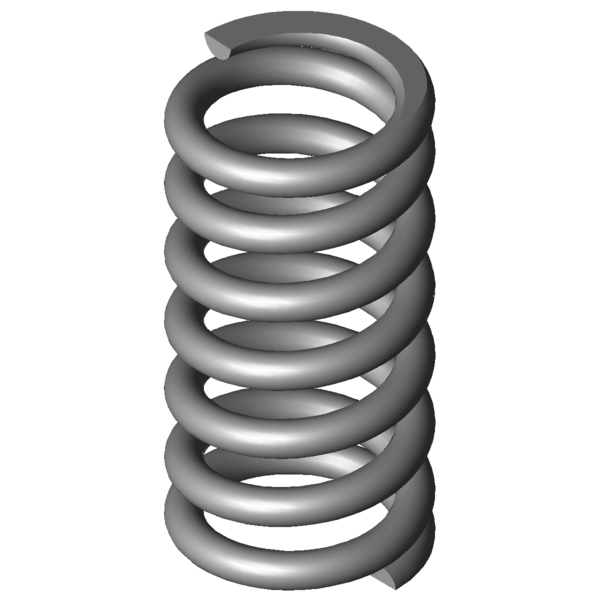

Home » Products » Compression springs » vd-263o Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm Scaled prices - Compression spring VD-263O Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-263O Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263O Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.2 mm Wire diameter Di mm Inner coil diameter D 12.8 mm Mean coil diameter De 15 mm Outer coil diameter Dd 10.1 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 30.2 mm unstressed spring length Lk mm buckling length Fn 211.039 N maximum force in static use Ln 18.32 mm Minimum length in static use sn 11.88 mm Maximum spring deflection in static use Fndyn 194.945 N maximum force in dynamic use Lndyn 19.23 mm Minimum length in dynamic use shdyn 4.29 mm Maximum stroke in dynamic use S 5.091 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 17.771 N/mm Spring rate Weight 9.0623 g weight of one spring Fntol 18.15 N (+/-) tolerance of maximum force in static use Fndtol 17.9 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.84 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm force-path-calculation Compression spring VD-263O Inquiry formular Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm Inquiry formular Compression spring VD-263O Similar compression springs to Compression spring VD-263O Stainless steel Ø 2.2 x 12.8 x 30.2 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263O 1.4310 2.2 15 30.2 211.039 18.32 11.88 5.5 17.771 100.0 | 100.0 | 100.0 | 100.0 D-263O EN 10270-1 2.2 15 30.2 245.709 18.32 11.88 5.5 20.69 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207J-08 14.5 32.3 3.666 1.4310 70.735 13 19.3 51.4 | 86.1 | 47.5 | 20.6 VD-207J-31 14 28 3.78 1.4310 53.534 13.84 14.16 53.6 | 84.7 | 54.6 | 21.3 VD-206E 15 25.8 3.818 1.4310 64.587 8.88 16.92 51.6 | 83.0 | 50.4 | 21.5 VD-207J-32 14 30.4 4.124 1.4310 72.022 12.93 17.47 53.7 | 87.0 | 51.1 | 23.2 VD-217B 17 28.7 4.486 1.4310 83.268 10.14 18.56 54.1 | 85.3 | 51.7 | 25.3 VD-207J-21 15.5 29 4.612 1.4310 86.02 10.35 18.65 55.1 | 87.0 | 52.2 | 26.0 VD-207J-33 14 31 5.04 1.4310 95.76 12 19 56.2 | 86.3 | 54.0 | 28.4 VD-218A 14.1 26 5.338 1.4310 65.736 13.69 12.31 59.4 | 84.3 | 63.8 | 30.1 VD-252A-33 15 28.5 12.138 1.4310 148.688 16.25 12.25 82.4 | 95.1 | 83.7 | 68.3 VD-252A-03 14.8 32 12.138 1.4310 184.786 16.78 15.22 81.9 | 94.7 | 82.8 | 68.3 VD-254 14.5 33 13.033 1.4310 211.853 16.74 16.26 84.2 | 93.0 | 86.3 | 73.3 VD-257C 14 28.5 14.731 1.4310 173.91 16.69 11.81 88.9 | 92.9 | 90.9 | 82.9 VD-252A-02 14.8 25 14.835 1.4310 156.465 14.45 10.55 85.2 | 90.8 | 81.5 | 83.5 VD-263V 14.6 35 15.874 1.4310 177.288 23.83 11.17 90.7 | 93.8 | 89.0 | 89.3 VD-263O 15 30.2 17.771 1.4310 211.039 18.32 11.88 100.0 | 100.0 | 100.0 | 100.0 VD-263V-11 15.2 32 21.297 1.4310 199.643 22.63 9.37 88.3 | 94.9 | 86.7 | 83.4 VD-263V-10 15.2 25 25.169 1.4310 128.783 19.88 5.12 71.2 | 91.0 | 52.1 | 70.6 VD-285 15 32 31.818 1.4310 361.435 20.64 11.36 75.7 | 94.1 | 77.0 | 55.8 VD-284A 15 27 31.818 1.4310 202.344 20.64 6.36 74.3 | 92.5 | 74.7 | 55.8 VD-283A-15 15.5 28 34.572 1.4310 351.553 17.83 10.17 72.2 | 92.5 | 72.8 | 51.4 VD-288T-03 15 32 49.364 1.4310 367.346 24.56 7.44 62.3 | 91.0 | 60.0 | 36.0 VD-313AB 17 32 63.476 1.4310 364.924 26.25 5.75 55.0 | 83.8 | 53.1 | 28.0 VD-288T-02 15 25 65.819 1.4310 341.018 19.82 5.18 55.6 | 87.1 | 52.7 | 27.0 VD-288V 14 29 69.602 1.4310 423.906 22.91 6.09 55.1 | 89.3 | 50.5 | 25.5 VD-288Z-03 15.5 32 80.729 1.4310 606.026 24.49 7.51 52.8 | 87.4 | 49.0 | 22.0 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-263O Country of origin: DE, German; Compression spring VD-263O Product image - Compression springs VD-263O QR-Code: Compression spring VD-263O
