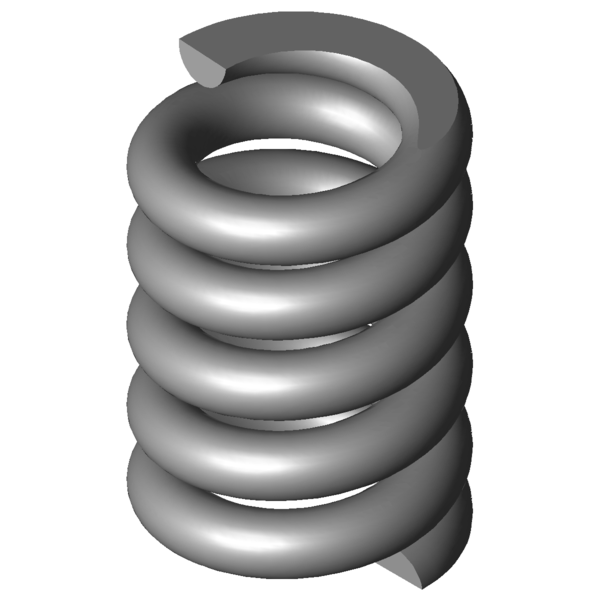

Home » Products » Compression springs » vd-339s Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm Scaled prices - Compression spring VD-339S Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-339S Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339S Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 17.5 mm Mean coil diameter De 22 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 31.8 mm unstressed spring length Lk mm buckling length Fn 978.93 N maximum force in static use Ln 26.68 mm Minimum length in static use sn 5.12 mm Maximum spring deflection in static use Fndyn 793.824 N maximum force in dynamic use Lndyn 27.65 mm Minimum length in dynamic use shdyn 1.77 mm Maximum stroke in dynamic use S 7.8 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 191.283 N/mm Spring rate Weight 38.0142 g weight of one spring Fntol 114 N (+/-) tolerance of maximum force in static use Fndtol 148 N (+/-) tolerance of maximum dynamic force Detol 0.66 mm (+/-) tolerances of outer coil diameter L0tol 1.59 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm force-path-calculation Compression spring VD-339S Inquiry formular Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm Inquiry formular Compression spring VD-339S Similar compression springs to Compression spring VD-339S Stainless steel Ø 4.5 x 17.5 x 31.8 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339S 1.4310 4.5 22 31.8 978.93 26.68 5.12 3.5 191.283 100.0 | 100.0 | 100.0 | 100.0 D-339S EN 10270-1 4.5 22 31.8 1139.754 26.68 5.12 3.5 222.708 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-278C 19.5 35 12.649 1.4310 176.092 21.08 13.92 37.5 | 78.3 | 27.4 | 6.6 VD-279A 18.5 32 18.544 1.4310 258.384 18.07 13.93 40.3 | 79.7 | 31.6 | 9.7 VD-288P 20 27.2 30.199 1.4310 309.998 16.93 10.27 45.4 | 79.6 | 40.8 | 15.8 VD-288Z-30 21.5 30 31.982 1.4310 379.024 18.15 11.85 48.0 | 86.2 | 41.0 | 16.7 VD-304 23.2 33.5 32.768 1.4310 462.807 19.38 14.12 48.6 | 87.0 | 41.8 | 17.1 VD-303B 23.2 28 32.768 1.4310 282.583 19.38 8.62 48.6 | 84.7 | 44.1 | 17.1 VD-288Z-50 21 28.5 34.722 1.4310 360.521 18.12 10.38 48.4 | 83.9 | 43.1 | 18.2 VD-288X-03 19.4 32 36.738 1.4310 468.411 19.25 12.75 49.1 | 84.0 | 44.0 | 19.2 VD-313K 25 33.3 42.846 1.4310 495.818 21.73 11.57 52.6 | 87.8 | 47.5 | 22.4 VD-313A-03 19.5 32 57.429 1.4310 543.593 22.53 9.47 57.3 | 87.1 | 54.8 | 30.0 VD-313AB 17 32 63.476 1.4310 364.924 26.25 5.75 59.6 | 82.6 | 63.2 | 33.2 VD-335 24 33.5 80 1.4310 766 23.93 9.58 66.5 | 91.8 | 65.8 | 41.8 VD-339B 20 28.8 156.25 1.4310 791.25 23.74 5.06 87.2 | 90.1 | 89.8 | 81.8 VD-339R-12 22.5 33.5 175.781 1.4310 1195.313 26.7 6.8 89.4 | 97.6 | 78.6 | 91.9 VD-339S 22 31.8 191.283 1.4310 978.93 26.68 5.12 100.0 | 100.0 | 100.0 | 100.0 VD-339V-04 19 31 336.268 1.4310 1489.669 26.57 4.43 75.9 | 94.6 | 76.1 | 56.9 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-339S Country of origin: DE, German; Compression spring VD-339S Product image - Compression springs VD-339S QR-Code: Compression spring VD-339S
