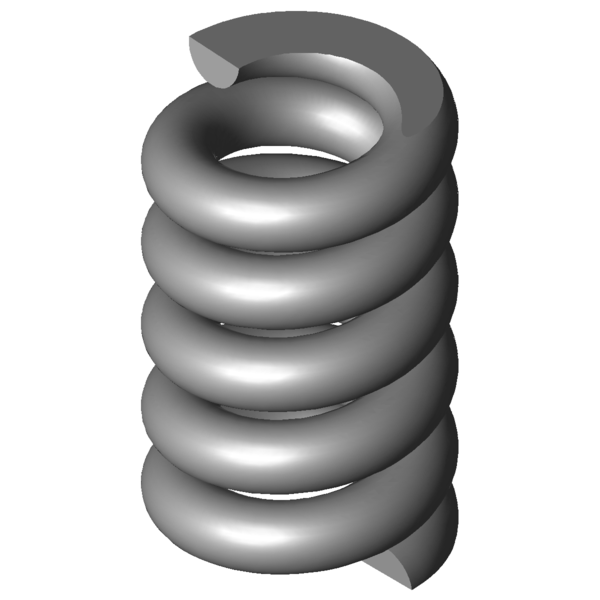

Home » Products » Compression springs » vd-339v-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm Scaled prices - Compression spring VD-339V-04 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-339V-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339V-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 14.5 mm Mean coil diameter De 19 mm Outer coil diameter Dd 9.1 mm maximum diameter of mandrel Dh 21 mm minimum diameter of bush L0 31 mm unstressed spring length Lk mm buckling length Fn 1489.669 N maximum force in static use Ln 26.57 mm Minimum length in static use sn 4.43 mm Maximum spring deflection in static use Fndyn 1176.939 N maximum force in dynamic use Lndyn 27.5 mm Minimum length in dynamic use shdyn 0.65 mm Maximum stroke in dynamic use S 7.657 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 336.268 N/mm Spring rate Weight 31.4975 g weight of one spring Fntol 227.23 N (+/-) tolerance of maximum force in static use Fndtol 222.6 N (+/-) tolerance of maximum dynamic force Detol 0.55 mm (+/-) tolerances of outer coil diameter L0tol 0.6 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm force-path-calculation Compression spring VD-339V-04 Inquiry formular Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm Inquiry formular Compression spring VD-339V-04 Similar compression springs to Compression spring VD-339V-04 Stainless steel Ø 4.5 x 14.5 x 31 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339V-04 1.4310 4.5 19 31 1489.669 26.57 4.43 3.5 336.268 100.0 | 100.0 | 100.0 | 100.0 D-339V-04 EN 10270-1 4.5 19 31 1734.4 26.57 4.43 3.5 391.512 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288P 20 27.2 30.199 1.4310 309.998 16.93 10.27 40.9 | 81.7 | 32.0 | 9.0 VD-288Z-30 21.5 30 31.982 1.4310 379.024 18.15 11.85 41.6 | 83.9 | 31.4 | 9.5 VD-288T 17 33 34.152 1.4310 336.937 23.13 9.87 41.9 | 81.9 | 33.8 | 10.2 VD-288Z-50 21 28.5 34.722 1.4310 360.521 18.12 10.38 42.3 | 83.0 | 33.4 | 10.3 VD-288X-03 19.4 32 36.738 1.4310 468.411 19.25 12.75 43.5 | 86.4 | 33.1 | 10.9 VD-288S-04 18.9 27.5 36.821 1.4310 391.406 16.87 10.63 42.8 | 83.5 | 34.0 | 10.9 VD-288Z-61 17 34.3 46.962 1.4310 451.351 24.69 9.61 44.8 | 82.2 | 38.2 | 14.0 VD-313A-03 19.5 32 57.429 1.4310 543.593 22.53 9.47 49.3 | 89.2 | 41.6 | 17.1 VD-313AB 17 32 63.476 1.4310 364.924 26.25 5.75 51.8 | 85.8 | 50.8 | 18.9 VD-309 19.2 27.5 64 1.4310 535.04 19.14 8.36 49.9 | 86.3 | 44.5 | 19.0 VD-313O 18 26 140.625 1.4310 652.163 21.36 4.64 65.9 | 86.2 | 69.6 | 41.8 VD-339E-01 19 35 147.49 1.4310 1005.926 28.18 6.82 67.5 | 92.5 | 66.2 | 43.9 VD-339B 20 28.8 156.25 1.4310 791.25 23.74 5.06 69.7 | 92.3 | 70.3 | 46.5 VD-339S 22 31.8 191.283 1.4310 978.93 26.68 5.12 75.9 | 94.6 | 76.1 | 56.9 VD-339V-04 19 31 336.268 1.4310 1489.669 26.57 4.43 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring VD-339V-04 Country of origin: DE, German; Compression spring VD-339V-04 Product image - Compression springs VD-339V-04 QR-Code: Compression spring VD-339V-04
