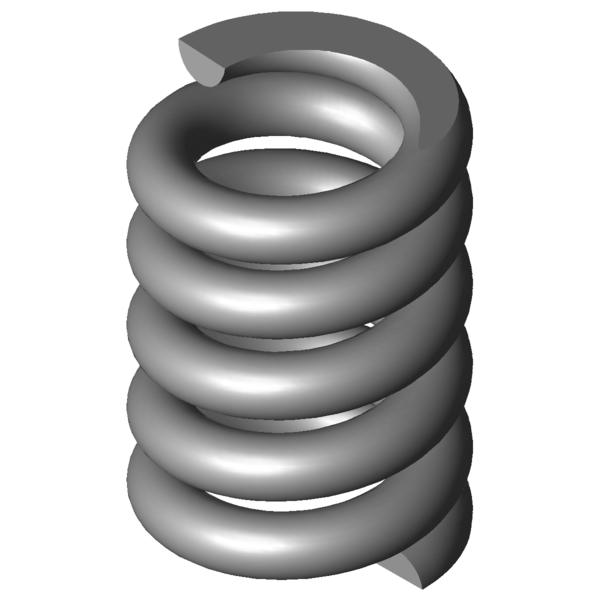

Home » Products » Compression springs » vd-313o Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm Scaled prices - Compression spring VD-313O Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring VD-313O Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313O Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 14.4 mm Mean coil diameter De 18 mm Outer coil diameter Dd 10 mm maximum diameter of mandrel Dh 18.9 mm minimum diameter of bush L0 26 mm unstressed spring length Lk mm buckling length Fn 652.163 N maximum force in static use Ln 21.36 mm Minimum length in static use sn 4.64 mm Maximum spring deflection in static use Fndyn 542.813 N maximum force in dynamic use Lndyn 22.14 mm Minimum length in dynamic use shdyn 1.63 mm Maximum stroke in dynamic use S 6.4 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 140.625 N/mm Spring rate Weight 20.0194 g weight of one spring Fntol 99.4 N (+/-) tolerance of maximum force in static use Fndtol 97.49 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.54 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm force-path-calculation Compression spring VD-313O Inquiry formular Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm Inquiry formular Compression spring VD-313O Similar compression springs to Compression spring VD-313O Stainless steel Ø 3.6 x 14.4 x 26 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313O 1.4310 3.6 18 26 652.163 21.36 4.64 3.5 140.625 100.0 | 100.0 | 100.0 | 100.0 D-313O EN 10270-1 3.6 18 26 759.303 21.36 4.64 3.5 163.728 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-252A-02 14.8 25 14.835 1.4310 156.465 14.45 10.55 40.8 | 78.0 | 34.0 | 10.6 VD-279 18.5 27.5 23.842 1.4310 294.147 15.16 12.34 48.5 | 87.1 | 41.4 | 17.0 VD-263V-10 15.2 25 25.169 1.4310 128.783 19.88 5.12 51.8 | 82.4 | 55.2 | 17.9 VD-288P 20 27.2 30.199 1.4310 309.998 16.93 10.27 51.9 | 87.8 | 46.4 | 21.5 VD-284A 15 27 31.818 1.4310 202.344 20.64 6.36 52.6 | 83.0 | 52.0 | 22.6 VD-283A-15 15.5 28 34.572 1.4310 351.553 17.83 10.17 52.4 | 82.8 | 49.8 | 24.6 VD-288S-04 18.9 27.5 36.821 1.4310 391.406 16.87 10.63 55.7 | 89.2 | 51.8 | 26.2 VD-288X-02 19.4 25 50.097 1.4310 468.411 15.65 9.35 62.1 | 89.8 | 60.7 | 35.6 VD-309 19.2 27.5 64 1.4310 535.04 19.14 8.36 68.9 | 92.4 | 68.8 | 45.5 VD-288T-02 15 25 65.819 1.4310 341.018 19.82 5.18 67.8 | 85.8 | 70.9 | 46.8 VD-313A-02 19.5 25 69.735 1.4310 368.025 19.72 5.28 71.7 | 93.4 | 72.2 | 49.6 VD-288Z-60 17 24 73.797 1.4310 450.681 17.89 6.11 71.7 | 90.0 | 72.5 | 52.5 VD-313AA 17 22 99.748 1.4310 296.007 19.03 2.97 71.6 | 89.3 | 54.7 | 70.9 VD-288Z-02 15.5 25 121.094 1.4310 738.672 18.9 6.1 85.9 | 89.5 | 82.2 | 86.2 VD-313O 18 26 140.625 1.4310 652.163 21.36 4.64 100.0 | 100.0 | 100.0 | 100.0 VD-339B 20 28.8 156.25 1.4310 791.25 23.74 5.06 89.0 | 90.1 | 87.1 | 89.9 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-313O Country of origin: DE, German; Compression spring VD-313O Product image - Compression springs VD-313O QR-Code: Compression spring VD-313O
