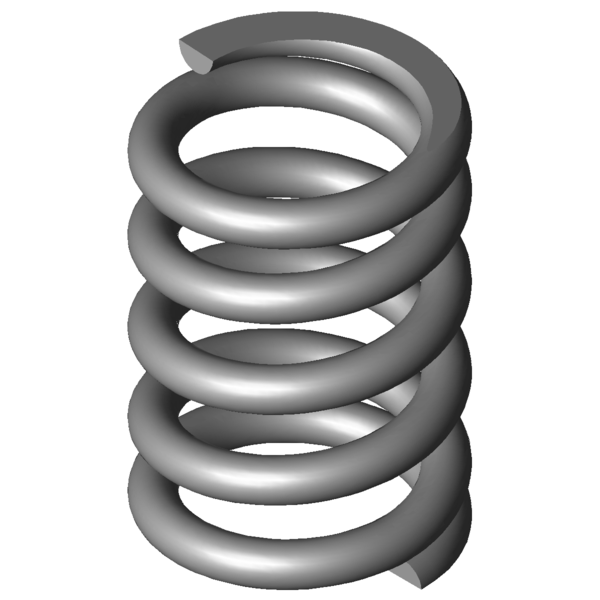

Home » Products » Compression springs » vd-288s-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm Scaled prices - Compression spring VD-288S-04 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-288S-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288S-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 16.1 mm Mean coil diameter De 18.9 mm Outer coil diameter Dd 12.6 mm maximum diameter of mandrel Dh 20 mm minimum diameter of bush L0 27.5 mm unstressed spring length Lk mm buckling length Fn 391.406 N maximum force in static use Ln 16.87 mm Minimum length in static use sn 10.63 mm Maximum spring deflection in static use Fndyn 342.434 N maximum force in dynamic use Lndyn 18.2 mm Minimum length in dynamic use shdyn 4 mm Maximum stroke in dynamic use S 7.057 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 36.821 N/mm Spring rate Weight 13.5402 g weight of one spring Fntol 32.2 N (+/-) tolerance of maximum force in static use Fndtol 31.5 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.7 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm force-path-calculation Compression spring VD-288S-04 Inquiry formular Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm Inquiry formular Compression spring VD-288S-04 Similar compression springs to Compression spring VD-288S-04 Stainless steel Ø 2.8 x 16.1 x 27.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288S-04 1.4310 2.8 18.9 27.5 391.406 16.87 10.63 3.5 36.821 100.0 | 100.0 | 100.0 | 100.0 D-288S-04 EN 10270-1 2.8 18.9 27.5 455.709 16.87 10.63 3.5 42.87 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-247A 20.5 27 6.317 1.4310 90.982 12.6 14.4 51.0 | 87.3 | 48.5 | 17.2 VD-248 18 30 9.766 1.4310 168.457 12.75 17.25 55.0 | 86.1 | 52.3 | 26.5 VD-252A-33 15 28.5 12.138 1.4310 148.688 16.25 12.25 59.3 | 82.4 | 62.4 | 33.0 VD-273B 22.5 27 12.207 1.4310 140.808 15.47 11.54 62.6 | 90.5 | 64.0 | 33.1 VD-263VA 20 27.8 12.616 1.4310 171.958 14.17 13.63 62.4 | 91.9 | 61.0 | 34.3 VD-279A 18.5 32 18.544 1.4310 258.384 18.07 13.93 70.9 | 91.0 | 71.2 | 50.4 VD-279 18.5 27.5 23.842 1.4310 294.147 15.16 12.34 80.4 | 95.7 | 80.6 | 64.7 VD-288P 20 27.2 30.199 1.4310 309.998 16.93 10.27 89.2 | 97.8 | 87.9 | 82.0 VD-284A 15 27 31.818 1.4310 202.344 20.64 6.36 77.0 | 88.9 | 55.8 | 86.4 VD-288Z-30 21.5 30 31.982 1.4310 379.024 18.15 11.85 90.4 | 91.0 | 93.3 | 86.9 VD-303B 23.2 28 32.768 1.4310 282.583 19.38 8.62 84.9 | 89.1 | 76.6 | 89.0 VD-283A-15 15.5 28 34.572 1.4310 351.553 17.83 10.17 92.2 | 89.8 | 92.7 | 93.9 VD-288Z-50 21 28.5 34.722 1.4310 360.521 18.12 10.38 94.2 | 93.3 | 94.9 | 94.3 VD-288X-03 19.4 32 36.738 1.4310 468.411 19.25 12.75 92.2 | 93.3 | 83.5 | 99.8 VD-288S-04 18.9 27.5 36.821 1.4310 391.406 16.87 10.63 100.0 | 100.0 | 100.0 | 100.0 VD-288X-02 19.4 25 50.097 1.4310 468.411 15.65 9.35 84.7 | 95.0 | 85.8 | 73.5 VD-313A-03 19.5 32 57.429 1.4310 543.593 22.53 9.47 78.0 | 89.2 | 80.5 | 64.1 VD-309 19.2 27.5 64 1.4310 535.04 19.14 8.36 76.2 | 95.3 | 75.9 | 57.5 VD-313A-02 19.5 25 69.735 1.4310 368.025 19.72 5.28 71.9 | 90.9 | 71.8 | 52.8 VD-288Z-60 17 24 73.797 1.4310 450.681 17.89 6.11 70.8 | 90.2 | 72.2 | 49.9 VD-313O 18 26 140.625 1.4310 652.163 21.36 4.64 55.7 | 89.2 | 51.8 | 26.2 VD-339B 20 28.8 156.25 1.4310 791.25 23.74 5.06 52.9 | 86.7 | 48.5 | 23.5 VD-339V-04 19 31 336.268 1.4310 1489.669 26.57 4.43 42.8 | 83.5 | 34.0 | 10.9 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-288S-04 Country of origin: DE, German; Compression spring VD-288S-04 Product image - Compression springs VD-288S-04 QR-Code: Compression spring VD-288S-04
