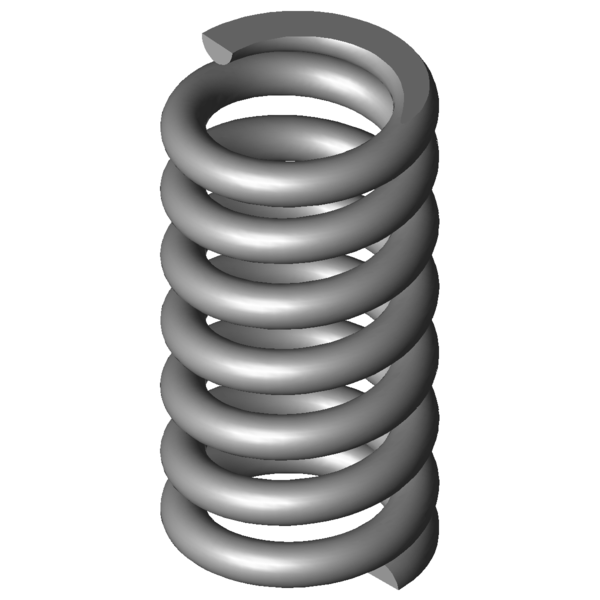

Home » Products » Compression springs » vd-288t Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm Scaled prices - Compression spring VD-288T Quantity Single price [EUR] 1 5.6700 EUR 2 4.0000 EUR 3 3.8100 EUR 7 2.9900 EUR 17 1.5200 EUR 37 1.2000 EUR 75 1.0100 EUR 125 0.7829 EUR 175 0.7387 EUR 250 0.6198 EUR 350 0.5936 EUR 450 0.5368 EUR Compression spring Buy Product image Compression spring VD-288T Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288T Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 14.2 mm Mean coil diameter De 17 mm Outer coil diameter Dd 10.8 mm maximum diameter of mandrel Dh 18 mm minimum diameter of bush L0 33 mm unstressed spring length Lk mm buckling length Fn 336.937 N maximum force in static use Ln 23.13 mm Minimum length in static use sn 9.87 mm Maximum spring deflection in static use Fndyn 300.535 N maximum force in dynamic use Lndyn 24.2 mm Minimum length in dynamic use shdyn 4.12 mm Maximum stroke in dynamic use S 5.491 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 34.152 N/mm Spring rate Weight 16.2849 g weight of one spring Fntol 36 N (+/-) tolerance of maximum force in static use Fndtol 35.37 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.76 mm (+/-) tolerance of unstressed spring length Price group N - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm force-path-calculation Compression spring VD-288T Inquiry formular Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm Inquiry formular Compression spring VD-288T Similar compression springs to Compression spring VD-288T Stainless steel Ø 2.8 x 14.2 x 33 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288T 1.4310 2.8 17 33 336.937 23.13 9.87 5.5 34.152 100.0 | 100.0 | 100.0 | 100.0 D-288T EN 10270-1 2.8 17 33 392.291 23.13 9.87 5.5 39.762 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-213 17.6 34 4 1.4310 88.6 11.85 22.15 43.6 | 83.6 | 35.4 | 11.7 VD-232K 20 34.1 4.353 1.4310 98.401 11.5 22.6 43.7 | 82.0 | 36.4 | 12.8 VD-217B 17 28.7 4.486 1.4310 83.268 10.14 18.56 44.5 | 81.4 | 38.9 | 13.1 VD-207J-21 15.5 29 4.612 1.4310 86.02 10.35 18.65 43.4 | 77.5 | 39.2 | 13.5 VD-232N-04 18 28 5.761 1.4310 93.045 11.85 16.15 47.5 | 81.2 | 44.4 | 16.9 VD-248 18 30 9.766 1.4310 168.457 12.75 17.25 55.9 | 85.6 | 53.6 | 28.6 VD-252A-03 14.8 32 12.138 1.4310 184.786 16.78 15.22 60.2 | 85.2 | 59.8 | 35.6 VD-278C 19.5 35 12.649 1.4310 176.092 21.08 13.92 63.0 | 90.3 | 61.6 | 37.1 VD-254 14.5 33 13.033 1.4310 211.853 16.74 16.26 61.8 | 85.6 | 61.8 | 38.2 VD-263V 14.6 35 15.874 1.4310 177.288 23.83 11.17 67.9 | 86.8 | 70.5 | 46.5 VD-263O 15 30.2 17.771 1.4310 211.039 18.32 11.88 70.3 | 86.1 | 72.9 | 52.0 VD-279A 18.5 32 18.544 1.4310 258.384 18.07 13.93 73.6 | 92.7 | 73.8 | 54.3 VD-263V-11 15.2 32 21.297 1.4310 199.643 22.63 9.37 76.7 | 90.7 | 77.1 | 62.4 VD-285 15 32 31.818 1.4310 361.435 20.64 11.36 91.6 | 91.5 | 90.1 | 93.2 VD-288T 17 33 34.152 1.4310 336.937 23.13 9.87 100.0 | 100.0 | 100.0 | 100.0 VD-288X-03 19.4 32 36.738 1.4310 468.411 19.25 12.75 87.1 | 93.7 | 74.7 | 92.9 VD-288Z-61 17 34.3 46.962 1.4310 451.351 24.69 9.61 85.1 | 96.5 | 86.0 | 72.7 VD-288T-03 15 32 49.364 1.4310 367.346 24.56 7.44 82.6 | 95.1 | 83.6 | 69.1 VD-313A-03 19.5 32 57.429 1.4310 543.593 22.53 9.47 76.0 | 89.7 | 79.0 | 59.5 VD-313AB 17 32 63.476 1.4310 364.924 26.25 5.75 74.6 | 94.8 | 75.3 | 53.8 VD-288Z-03 15.5 32 80.729 1.4310 606.026 24.49 7.51 67.0 | 92.8 | 65.8 | 42.3 VD-313P 18 36.8 89.489 1.4310 657.276 29.46 7.34 62.7 | 87.3 | 62.8 | 38.1 VD-339E-01 19 35 147.49 1.4310 1005.926 28.18 6.82 53.0 | 84.6 | 51.3 | 23.1 VD-339V-04 19 31 336.268 1.4310 1489.669 26.57 4.43 41.9 | 81.9 | 33.8 | 10.2 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-288T Country of origin: DE, German; Compression spring VD-288T Product image - Compression springs VD-288T QR-Code: Compression spring VD-288T
