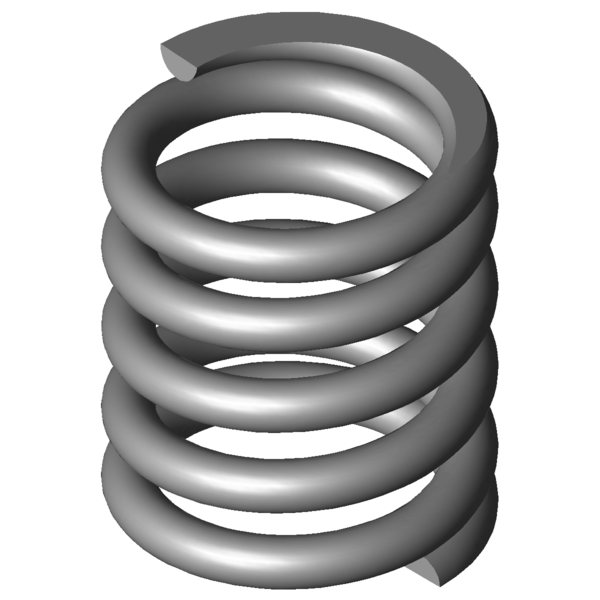

Home » Products » Compression springs » vd-404a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm Scaled prices - Compression spring VD-404A Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-404A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-404A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 8 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 58 mm Outer coil diameter Dd 40.8 mm maximum diameter of mandrel Dh 59.5 mm minimum diameter of bush L0 68 mm unstressed spring length Lk mm buckling length Fn 1602.304 N maximum force in static use Ln 48.44 mm Minimum length in static use sn 19.56 mm Maximum spring deflection in static use Fndyn 1420.493 N maximum force in dynamic use Lndyn 50.66 mm Minimum length in dynamic use shdyn 8.76 mm Maximum stroke in dynamic use S 17.143 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 81.92 N/mm Spring rate Weight 343.2676 g weight of one spring Fntol 160 N (+/-) tolerance of maximum force in static use Fndtol 157 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 1.39 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm Metal spring characteristic download pdf file CAD data Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm force-path-calculation Compression spring VD-404A Inquiry formular Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm Inquiry formular Compression spring VD-404A Similar compression springs to Compression spring VD-404A Stainless steel Ø 8 x 50 x 68 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-404A 1.4310 8 58 68 1602.304 48.44 19.56 3.5 81.92 100.0 | 100.0 | 100.0 | 100.0 D-404A EN 10270-1 8 58 68 1865.54 48.44 19.56 3.5 95.378 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-344B 55 66 12.5 1.4310 426.563 31.88 34.13 47.3 | 84.8 | 42.0 | 15.3 VD-345 55 85 12.5 1.4310 664.063 31.88 53.13 51.7 | 81.4 | 49.7 | 24.0 VD-364E-08 70 65 13.262 1.4310 501.29 27.2 37.8 46.7 | 82.4 | 41.5 | 16.2 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 44.3 | 83.5 | 32.5 | 16.8 VD-364F 60 85.4 14.132 1.4310 712.104 35.01 50.39 54.7 | 84.2 | 52.8 | 27.1 VD-364J-02 56 77 17.763 1.4310 752.264 34.65 42.35 50.9 | 84.5 | 46.6 | 21.7 VD-350 45 64 24.414 1.4310 807.373 30.93 33.07 54.2 | 78.1 | 54.8 | 29.8 VD-364J-01 56 53 27.631 1.4310 740.52 26.2 26.8 58.1 | 81.1 | 59.6 | 33.7 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 59.5 | 81.4 | 60.7 | 36.4 VD-374B 56.3 64 31.506 1.4310 789.591 38.94 25.06 64.0 | 90.0 | 63.7 | 38.5 VD-375 56.3 80 31.506 1.4310 1293.686 38.94 41.06 74.7 | 85.8 | 77.8 | 60.4 VD-364R-81 46 66 32.216 1.4310 499.347 50.5 15.5 59.4 | 83.8 | 55.2 | 39.3 VD-380A 46.3 68 39.159 1.4310 594.81 52.81 15.19 63.8 | 86.2 | 57.4 | 47.8 VD-389K 50 62.3 75.496 1.4310 1507.155 42.34 19.96 92.2 | 88.4 | 96.0 | 92.2 VD-404A 58 68 81.92 1.4310 1602.304 48.44 19.56 100.0 | 100.0 | 100.0 | 100.0 VD-409A 53.5 82 84.551 1.4310 2084.467 57.35 24.65 77.4 | 92.0 | 78.5 | 61.7 VD-389N-01 46 68 88.541 1.4310 1938.728 46.1 21.9 89.2 | 88.9 | 86.0 | 92.5 VD-414J 63 77.3 104.167 1.4310 2390.521 54.35 22.95 81.5 | 89.6 | 76.1 | 78.6 VD-409AA 56 50 129.63 1.4310 1415.556 39.08 10.92 75.1 | 90.0 | 72.1 | 63.2 VD-410 48 65 160 1.4310 2744 47.85 17.15 72.3 | 92.8 | 73.0 | 51.2 VD-435 60 75 233.333 1.4310 4870.833 54.13 20.88 62.5 | 89.1 | 63.3 | 35.1 VD-450 46 67 750.171 1.4310 6826.56 57.9 9.1 44.0 | 85.9 | 35.0 | 10.9 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-404A Country of origin: DE, German; Compression spring VD-404A Product image - Compression springs VD-404A QR-Code: Compression spring VD-404A
