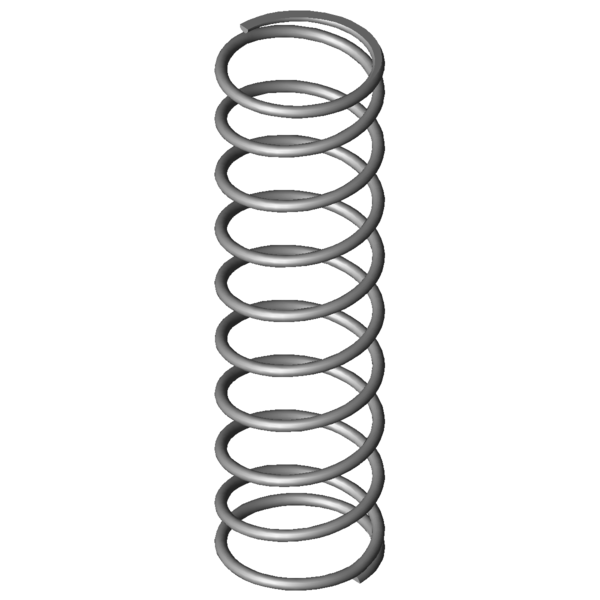

Home » Products » Compression springs » vd-417 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm Scaled prices - Compression spring VD-417 Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 30.2500 EUR 37 27.4500 EUR 75 26.9000 EUR 125 26.9000 EUR 175 26.9000 EUR 250 26.9000 EUR 350 26.9000 EUR Compression spring Buy Product image Compression spring VD-417 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-417 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 10 mm Wire diameter Di mm Inner coil diameter D 125 mm Mean coil diameter De 135 mm Outer coil diameter Dd 112 mm maximum diameter of mandrel Dh 140 mm minimum diameter of bush L0 475 mm unstressed spring length Lk mm buckling length Fn 1800.318 N maximum force in static use Ln 133.42 mm Minimum length in static use sn 341.58 mm Maximum spring deflection in static use Fndyn 1725.432 N maximum force in dynamic use Lndyn 147.63 mm Minimum length in dynamic use shdyn 44.76 mm Maximum stroke in dynamic use S 54.706 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 5.271 N/mm Spring rate Weight 2559.8794 g weight of one spring Fntol 102 N (+/-) tolerance of maximum force in static use Fndtol 100 N (+/-) tolerance of maximum dynamic force Detol 1.9 mm (+/-) tolerances of outer coil diameter L0tol 11.54 mm (+/-) tolerance of unstressed spring length Price group #BF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm Metal spring characteristic download pdf file CAD data Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm force-path-calculation Compression spring VD-417 Inquiry formular Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm Inquiry formular Compression spring VD-417 Similar compression springs to Compression spring VD-417 Stainless steel Ø 10 x 125 x 475 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-417 1.4310 10 135 475 1800.318 133.42 341.58 8.5 5.271 100.0 | 100.0 | 100.0 | 100.0 D-417 EN 10270-1 10 135 475 2096.084 133.42 341.58 8.5 6.136 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-389E-14 105 350 2.626 1.4310 664.391 97 253 59.7 | 73.8 | 55.5 | 49.8 VD-389C 120 331 2.647 1.4310 687.24 71.4 259.6 61.2 | 76.2 | 57.1 | 50.2 VD-414D-16 135 515 2.733 1.4310 998.178 149.8 365.2 73.5 | 94.1 | 74.5 | 51.9 VD-393 108 570 2.867 1.4310 1205.837 149.44 420.56 69.9 | 81.1 | 74.1 | 54.4 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 63.7 | 72.7 | 60.5 | 57.8 VD-414D-14 135 425 3.376 1.4310 1013.918 124.7 300.3 76.4 | 93.2 | 72.1 | 64.1 VD-418 135 690 3.584 1.4310 1803.48 186.8 503.2 80.5 | 89.6 | 83.9 | 68.0 VD-414B 150 389 3.724 1.4310 1110.833 90.67 298.33 77.5 | 87.3 | 74.5 | 70.6 VD-394D 98 400 3.933 1.4310 1002.93 145 255 72.9 | 78.9 | 65.2 | 74.6 VD-414D-26 120 460 3.998 1.4310 1264.9 143.6 316.4 83.1 | 91.9 | 81.4 | 75.9 VD-392 108 390 4.216 1.4310 1194.368 106.74 283.26 78.4 | 80.7 | 74.6 | 80.0 VD-414H 100 531 4.915 1.4310 1662.039 192.84 338.16 91.1 | 84.5 | 95.7 | 93.3 VD-414D-24 120 390 4.938 1.4310 1334.862 119.7 270.3 85.8 | 87.0 | 76.6 | 93.7 VD-414D-12 135 280 5.218 1.4310 1006.551 87.1 192.9 79.4 | 83.0 | 56.2 | 99.0 VD-417 135 475 5.271 1.4310 1800.318 133.42 341.58 100.0 | 100.0 | 100.0 | 100.0 VD-398 88 410 5.6 1.4310 1506.4 141 269 84.2 | 77.2 | 81.2 | 94.1 VD-423 110 500 7 1.4310 2266.25 176.25 323.75 84.9 | 92.2 | 87.1 | 75.3 VD-416 135 315 8.145 1.4310 1805.109 93.39 221.61 78.6 | 88.8 | 82.3 | 64.7 VD-429 90 540 9.238 1.4310 2759.686 241.26 298.74 72.8 | 84.9 | 76.3 | 57.1 VD-422 110 345 10.294 1.4310 2251.838 126.25 218.75 69.3 | 84.7 | 72.0 | 51.2 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-417 Country of origin: DE, German; Compression spring VD-417 Product image - Compression springs VD-417 QR-Code: Compression spring VD-417
