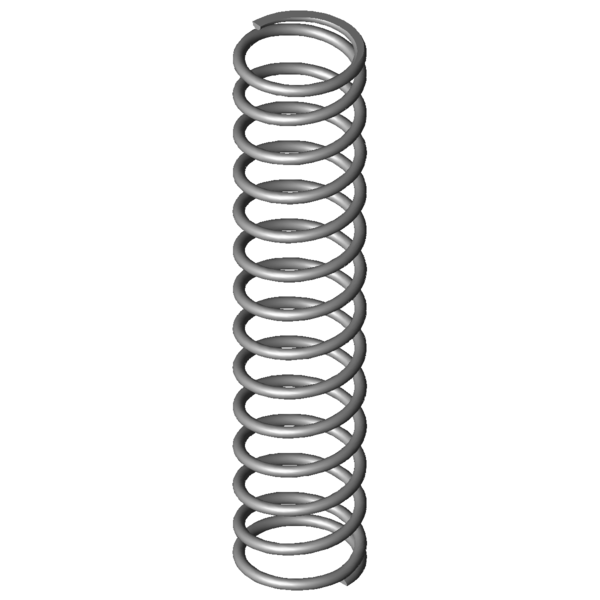

Home » Products » Compression springs » vd-398 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm Scaled prices - Compression spring VD-398 Quantity Single price [EUR] 1 20.4700 EUR 2 16.3100 EUR 3 13.5600 EUR 7 11.6800 EUR 17 10.4200 EUR 37 9.2500 EUR 75 9.0900 EUR 125 9.0900 EUR 175 9.0900 EUR 250 9.0900 EUR 350 9.0900 EUR Compression spring Buy Product image Compression spring VD-398 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-398 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 8 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 88 mm Outer coil diameter Dd 70 mm maximum diameter of mandrel Dh 90.8 mm minimum diameter of bush L0 410 mm unstressed spring length Lk mm buckling length Fn 1506.4 N maximum force in static use Ln 141 mm Minimum length in static use sn 269 mm Maximum spring deflection in static use Fndyn 1436.4 N maximum force in dynamic use Lndyn 153.5 mm Minimum length in dynamic use shdyn 47.75 mm Maximum stroke in dynamic use S 32.16 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 5.6 N/mm Spring rate Weight 1447.9653 g weight of one spring Fntol 77.5 N (+/-) tolerance of maximum force in static use Fndtol 76.3 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 7.86 mm (+/-) tolerance of unstressed spring length Price group #BA - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm Metal spring characteristic download pdf file CAD data Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm force-path-calculation Compression spring VD-398 Inquiry formular Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm Inquiry formular Compression spring VD-398 Similar compression springs to Compression spring VD-398 Stainless steel Ø 8 x 80 x 410 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-398 1.4310 8 88 410 1506.4 141 269 12.5 5.6 100.0 | 100.0 | 100.0 | 100.0 D-398 EN 10270-1 8 88 410 1753.88 141 269 12.5 6.52 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-367A 86.3 365 1.994 1.4310 475.163 126.73 238.27 61.4 | 88.6 | 60.1 | 35.6 VD-368 86.3 490 2.154 1.4310 800.599 118.27 371.73 62.7 | 86.8 | 62.8 | 38.5 VD-364R-63 77 365 2.347 1.4310 579.431 118.11 246.89 63.6 | 83.8 | 65.1 | 41.9 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 62.3 | 75.0 | 69.6 | 42.2 VD-389E-14 105 350 2.626 1.4310 664.391 97 253 67.2 | 85.6 | 69.1 | 46.9 VD-369G 78.3 310 2.954 1.4310 576.69 114.8 195.2 63.1 | 81.1 | 55.4 | 52.8 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 61.7 | 80.1 | 51.7 | 53.2 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 74.5 | 93.8 | 75.1 | 54.4 VD-367 86.3 355 3.167 1.4310 837.102 90.7 264.3 73.8 | 87.8 | 76.9 | 56.6 VD-394D 98 400 3.933 1.4310 1002.93 145 255 82.2 | 95.8 | 80.7 | 70.2 VD-392 108 390 4.216 1.4310 1194.368 106.74 283.26 84.9 | 92.2 | 87.1 | 75.3 VD-389J 75 405 4.311 1.4310 1104.781 148.71 256.29 83.9 | 90.5 | 84.3 | 77.0 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 78.3 | 80.1 | 76.1 | 78.8 VD-389E-24 89 280 4.483 1.4310 843.868 91.75 188.25 76.0 | 84.9 | 63.0 | 80.0 VD-398 88 410 5.6 1.4310 1506.4 141 269 100.0 | 100.0 | 100.0 | 100.0 VD-399D 81 345 6.824 1.4310 1342.438 148.29 196.71 85.1 | 92.1 | 81.1 | 82.1 VD-404 71 435 7.748 1.4310 1878.302 192.57 242.43 83.0 | 91.6 | 85.2 | 72.3 VD-414G 100 332 8.019 1.4310 1658.676 125.16 206.84 79.9 | 86.0 | 83.9 | 69.8 VD-397 88 285 8.235 1.4310 1515.294 101 184 80.6 | 89.8 | 83.9 | 68.0 VD-429 90 540 9.238 1.4310 2759.686 241.26 298.74 72.5 | 84.6 | 72.3 | 60.6 VD-428 90 370 13.672 1.4310 2741.211 169.5 200.5 65.0 | 89.3 | 64.7 | 41.0 VD-434 73 410 18.915 1.4310 3319.382 234.51 175.49 57.5 | 87.7 | 55.3 | 29.6 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-398 Country of origin: DE, German; Compression spring VD-398 Product image - Compression springs VD-398 QR-Code: Compression spring VD-398
