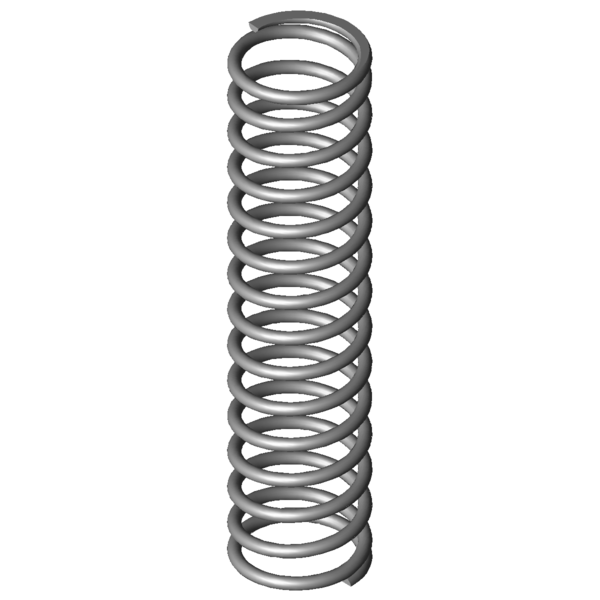

Home » Products » Compression springs » vd-399d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm Scaled prices - Compression spring VD-399D Quantity Single price [EUR] 1 18.6200 EUR 2 14.8300 EUR 3 11.1000 EUR 7 9.4000 EUR 17 7.8300 EUR 37 6.8300 EUR 75 6.7200 EUR 125 6.7200 EUR 175 6.7200 EUR 250 6.7200 EUR 350 6.7200 EUR Compression spring Buy Product image Compression spring VD-399D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-399D Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 8 mm Wire diameter Di mm Inner coil diameter D 73 mm Mean coil diameter De 81 mm Outer coil diameter Dd 63.2 mm maximum diameter of mandrel Dh 83.4 mm minimum diameter of bush L0 345 mm unstressed spring length Lk mm buckling length Fn 1342.438 N maximum force in static use Ln 148.29 mm Minimum length in static use sn 196.71 mm Maximum spring deflection in static use Fndyn 1259.515 N maximum force in dynamic use Lndyn 160.44 mm Minimum length in dynamic use shdyn 62.18 mm Maximum stroke in dynamic use S 24.963 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 6.824 N/mm Spring rate Weight 1412.3903 g weight of one spring Fntol 78.5 N (+/-) tolerance of maximum force in static use Fndtol 77.1 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 6.94 mm (+/-) tolerance of unstressed spring length Price group #AX - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm Metal spring characteristic download pdf file CAD data Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm force-path-calculation Compression spring VD-399D Inquiry formular Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm Inquiry formular Compression spring VD-399D Similar compression springs to Compression spring VD-399D Stainless steel Ø 8 x 73 x 345 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-399D 1.4310 8 81 345 1342.438 148.29 196.71 13.5 6.824 100.0 | 100.0 | 100.0 | 100.0 D-399D EN 10270-1 8 81 345 1562.981 148.29 196.71 13.5 7.946 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339Z-03 75 273 1.876 1.4310 382.194 69.25 203.76 56.0 | 78.1 | 62.5 | 27.5 VD-367A 86.3 365 1.994 1.4310 475.163 126.73 238.27 59.1 | 89.0 | 59.0 | 29.2 VD-364R-63 77 365 2.347 1.4310 579.431 118.11 246.89 61.3 | 88.2 | 61.4 | 34.4 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 60.6 | 84.1 | 62.8 | 35.0 VD-389E-14 105 350 2.626 1.4310 664.391 97 253 63.3 | 87.7 | 63.6 | 38.5 VD-369G 78.3 310 2.954 1.4310 576.69 114.8 195.2 67.6 | 88.4 | 71.1 | 43.3 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 65.9 | 87.6 | 66.4 | 43.7 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 67.0 | 89.0 | 67.3 | 44.7 VD-367 86.3 355 3.167 1.4310 837.102 90.7 264.3 68.2 | 89.9 | 68.4 | 46.4 VD-364J 60 341 3.191 1.4310 713.745 117.33 223.67 66.0 | 80.6 | 70.6 | 46.8 VD-389J 75 405 4.311 1.4310 1104.781 148.71 256.29 77.0 | 88.4 | 79.5 | 63.2 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 77.6 | 87.6 | 80.6 | 64.6 VD-389E-24 89 280 4.483 1.4310 843.868 91.75 188.25 72.4 | 81.0 | 77.5 | 58.7 VD-398 88 410 5.6 1.4310 1506.4 141 269 85.1 | 92.1 | 81.1 | 82.1 VD-399D 81 345 6.824 1.4310 1342.438 148.29 196.71 100.0 | 100.0 | 100.0 | 100.0 VD-414G 100 332 8.019 1.4310 1658.676 125.16 206.84 87.3 | 88.7 | 88.0 | 85.1 VD-397 88 285 8.235 1.4310 1515.294 101 184 88.0 | 83.9 | 87.5 | 92.7 VD-403 71 300 11.467 1.4310 1888.529 135.3 164.7 76.2 | 91.5 | 77.4 | 59.5 VD-428 90 370 13.672 1.4310 2741.211 169.5 200.5 70.4 | 87.7 | 73.5 | 49.9 VD-409 58 340 15.498 1.4310 2363.939 187.47 152.53 67.1 | 90.1 | 67.2 | 44.0 VD-434 73 410 18.915 1.4310 3319.382 234.51 175.49 61.9 | 84.8 | 64.8 | 36.1 VD-433 73 285 27.995 1.4310 3360.996 164.94 120.06 53.0 | 84.2 | 50.5 | 24.4 VD-439 60 335 37.838 1.4310 3956.419 230.44 104.56 48.4 | 83.7 | 43.5 | 18.0 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-399D Country of origin: DE, German; Compression spring VD-399D Product image - Compression springs VD-399D QR-Code: Compression spring VD-399D
