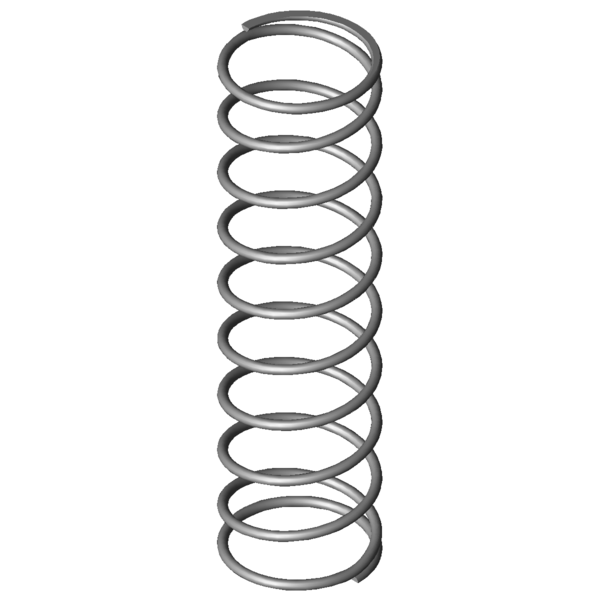

Home » Products » Compression springs » vd-339z-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm Scaled prices - Compression spring VD-339Z-03 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9700 EUR 175 2.9700 EUR 250 2.9700 EUR 350 2.9700 EUR Compression spring Buy Product image Compression spring VD-339Z-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339Z-03 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 70 mm Mean coil diameter De 75 mm Outer coil diameter Dd 63.3 mm maximum diameter of mandrel Dh 78 mm minimum diameter of bush L0 273 mm unstressed spring length Lk mm buckling length Fn 382.194 N maximum force in static use Ln 69.25 mm Minimum length in static use sn 203.76 mm Maximum spring deflection in static use Fndyn 366.465 N maximum force in dynamic use Lndyn 77.63 mm Minimum length in dynamic use shdyn 73.18 mm Maximum stroke in dynamic use S 31.529 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 1.876 N/mm Spring rate Weight 358.3831 g weight of one spring Fntol 27.83 N (+/-) tolerance of maximum force in static use Fndtol 27.56 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 9.69 mm (+/-) tolerance of unstressed spring length Price group #AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm force-path-calculation Compression spring VD-339Z-03 Inquiry formular Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm Inquiry formular Compression spring VD-339Z-03 Similar compression springs to Compression spring VD-339Z-03 Stainless steel Ø 5 x 70 x 273 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339Z-03 1.4310 5 75 273 382.194 69.25 203.76 8.5 1.876 100.0 | 100.0 | 100.0 | 100.0 D-339Z-03 EN 10270-1 5 75 273 444.982 69.25 203.76 8.5 2.184 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313T-01 70 312 0.917 1.4310 231.648 59.28 252.72 68.8 | 86.9 | 70.6 | 48.9 VD-339J-12 68 325 1.121 1.4310 266.053 87.68 237.32 75.2 | 88.2 | 77.7 | 59.8 VD-313T 70 233 1.417 1.4310 271.73 41.18 191.82 81.5 | 86.2 | 82.6 | 75.5 VD-364R-34 69 296 1.825 1.4310 275.469 145.08 150.92 87.2 | 91.2 | 73.1 | 97.3 VD-339G 75 224 1.862 1.4310 332.631 45.34 178.66 78.2 | 89.8 | 80.5 | 64.2 VD-339Z-03 75 273 1.876 1.4310 382.194 69.25 203.76 100.0 | 100.0 | 100.0 | 100.0 VD-339X 85 252 1.942 1.4310 390.717 50.81 201.19 96.1 | 93.5 | 98.3 | 96.6 VD-364C 95 278 2.031 1.4310 450.206 56.29 221.71 90.0 | 89.4 | 88.4 | 92.4 VD-348A 55 280 2.365 1.4310 365.076 125.63 154.38 73.9 | 100.0 | 63.6 | 58.0 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 81.6 | 88.6 | 77.7 | 78.6 VD-342 68 275 2.573 1.4310 535.526 66.87 208.13 84.7 | 96.6 | 84.6 | 72.9 VD-369G 78.3 310 2.954 1.4310 576.69 114.8 195.2 77.4 | 87.7 | 81.0 | 63.5 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 75.6 | 84.0 | 79.9 | 62.9 VD-366A 86.3 230 3.167 1.4310 460.969 84.46 145.54 73.3 | 83.5 | 77.2 | 59.2 VD-348 55 280 3.5 1.4310 671.563 88.13 191.88 92.9 | 100.0 | 92.9 | 85.9 VD-364E-14 70 220 3.51 1.4310 519.193 72.1 147.9 71.6 | 88.3 | 73.1 | 53.4 VD-364R-62 77 230 3.728 1.4310 563.555 78.81 151.19 69.9 | 88.3 | 71.0 | 50.3 VD-369E 78.3 210 4.345 1.4310 555.897 82.05 127.95 78.8 | 86.6 | 83.1 | 66.7 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 63.3 | 84.0 | 63.4 | 42.5 VD-389E-24 89 280 4.483 1.4310 843.868 91.75 188.25 65.0 | 84.4 | 68.8 | 41.8 VD-372 69.3 235 6.485 1.4310 1008.22 79.54 155.46 57.3 | 85.9 | 57.1 | 28.9 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-339Z-03 Country of origin: DE, German; Compression spring VD-339Z-03 Product image - Compression springs VD-339Z-03 QR-Code: Compression spring VD-339Z-03
