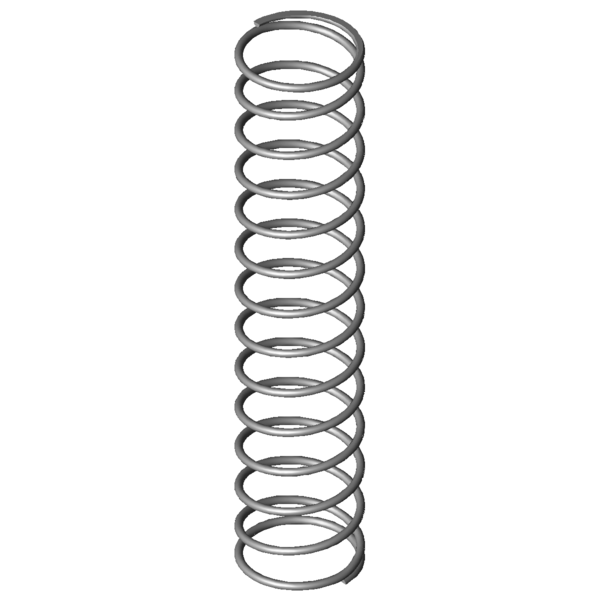

Home » Products » Compression springs » vd-339j-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm Scaled prices - Compression spring VD-339J-12 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-339J-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-12 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 63.5 mm Mean coil diameter De 68 mm Outer coil diameter Dd 57.1 mm maximum diameter of mandrel Dh 70.7 mm minimum diameter of bush L0 325 mm unstressed spring length Lk mm buckling length Fn 266.053 N maximum force in static use Ln 87.68 mm Minimum length in static use sn 237.32 mm Maximum spring deflection in static use Fndyn 253.471 N maximum force in dynamic use Lndyn 98.9 mm Minimum length in dynamic use shdyn 119.46 mm Maximum stroke in dynamic use S 25.64 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 1.121 N/mm Spring rate Weight 363.6528 g weight of one spring Fntol 21.27 N (+/-) tolerance of maximum force in static use Fndtol 21.05 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 12.73 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm force-path-calculation Compression spring VD-339J-12 Inquiry formular Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm Inquiry formular Compression spring VD-339J-12 Similar compression springs to Compression spring VD-339J-12 Stainless steel Ø 4.5 x 63.5 x 325 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-12 1.4310 4.5 68 325 266.053 87.68 237.32 12.5 1.121 100.0 | 100.0 | 100.0 | 100.0 D-339J-12 EN 10270-1 4.5 68 325 309.762 87.68 237.32 12.5 1.305 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-289B 55 307 0.695 1.4310 177.335 51.79 255.21 74.7 | 82.2 | 79.8 | 62.0 VD-313U 70 379 0.82 1.4310 257.266 65.32 313.68 83.3 | 90.6 | 86.2 | 73.2 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 84.5 | 88.8 | 87.8 | 76.9 VD-313T-01 70 312 0.917 1.4310 231.648 59.28 252.72 88.8 | 94.0 | 90.5 | 81.8 VD-317A 54 335 0.969 1.4310 221.1 106.74 228.26 88.2 | 88.4 | 89.6 | 86.4 VD-339H 75 380 1.078 1.4310 332.239 71.76 308.24 88.9 | 92.1 | 78.5 | 96.1 VD-339J-12 68 325 1.121 1.4310 266.053 87.68 237.32 100.0 | 100.0 | 100.0 | 100.0 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 91.4 | 90.8 | 88.5 | 94.8 VD-313T 70 233 1.417 1.4310 271.73 41.18 191.82 84.8 | 85.9 | 89.4 | 79.1 VD-317 54 335 1.434 1.4310 373.139 74.72 260.28 82.6 | 88.4 | 81.2 | 78.2 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 73.1 | 90.8 | 64.6 | 64.1 VD-364R-34 69 296 1.825 1.4310 275.469 145.08 150.92 77.2 | 90.0 | 80.1 | 61.4 VD-339Z-03 75 273 1.876 1.4310 382.194 69.25 203.76 75.2 | 88.2 | 77.7 | 59.8 VD-364R-63 77 365 2.347 1.4310 579.431 118.11 246.89 67.6 | 84.1 | 71.0 | 47.8 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 70.7 | 92.0 | 73.1 | 47.0 VD-342 68 275 2.573 1.4310 535.526 66.87 208.13 67.9 | 91.5 | 68.7 | 43.6 VD-369G 78.3 310 2.954 1.4310 576.69 114.8 195.2 62.2 | 84.6 | 64.2 | 37.9 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 63.0 | 88.4 | 62.9 | 37.6 VD-364J 60 341 3.191 1.4310 713.745 117.33 223.67 63.1 | 88.5 | 65.8 | 35.1 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 58.4 | 88.4 | 61.4 | 25.4 VD-379A 56.3 365 4.901 1.4310 897.271 181.92 183.08 52.5 | 81.1 | 53.4 | 22.9 VD-379 56.3 365 5.961 1.4310 1270.695 151.82 213.18 51.8 | 81.1 | 55.4 | 18.8 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-339J-12 Country of origin: DE, German; Compression spring VD-339J-12 Product image - Compression springs VD-339J-12 QR-Code: Compression spring VD-339J-12
