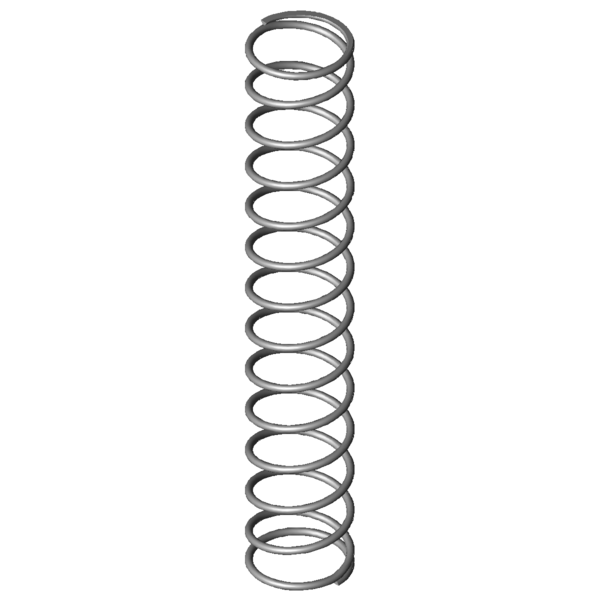

Home » Products » Compression springs » vd-343 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm Scaled prices - Compression spring VD-343 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-343 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-343 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 63 mm Mean coil diameter De 68 mm Outer coil diameter Dd 56.5 mm maximum diameter of mandrel Dh 71 mm minimum diameter of bush L0 395 mm unstressed spring length Lk 253.74 mm buckling length Fn 527.292 N maximum force in static use Ln 93.63 mm Minimum length in static use sn 301.37 mm Maximum spring deflection in static use Fndyn 508.279 N maximum force in dynamic use Lndyn 104.5 mm Minimum length in dynamic use shdyn 52.89 mm Maximum stroke in dynamic use S 31.2 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 1.75 N/mm Spring rate Weight 445.419 g weight of one spring Fntol 29.68 N (+/-) tolerance of maximum force in static use Fndtol 29.36 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 10.05 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm Metal spring characteristic download pdf file CAD data Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm force-path-calculation Compression spring VD-343 Inquiry formular Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm Inquiry formular Compression spring VD-343 Similar compression springs to Compression spring VD-343 Stainless steel Ø 5 x 63 x 395 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-343 1.4310 5 68 395 527.292 93.63 301.37 12.5 1.75 100.0 | 100.0 | 100.0 | 100.0 D-343 EN 10270-1 5 68 395 613.918 93.63 301.37 12.5 2.037 92.9 | 100.0 | 92.9 | 85.9 D-343A EN 10270-1 5 68 395 359.554 133.78 261.22 18.5 1.376 85.4 | 100.0 | 77.4 | 78.7 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313U-01 70 492 0.577 1.4310 232.327 89.45 402.55 59.4 | 85.8 | 59.5 | 33.0 VD-313U 70 379 0.82 1.4310 257.266 65.32 313.68 70.1 | 91.0 | 72.4 | 46.9 VD-313D 60 319 0.862 1.4310 225.567 57.41 261.59 64.8 | 80.3 | 64.8 | 49.3 VD-313T-01 70 312 0.917 1.4310 231.648 59.28 252.72 67.2 | 85.4 | 63.9 | 52.4 VD-339H 75 380 1.078 1.4310 332.239 71.76 308.24 78.1 | 92.3 | 80.4 | 61.6 VD-339J-12 68 325 1.121 1.4310 266.053 87.68 237.32 73.1 | 90.8 | 64.6 | 64.1 VD-339Z-04 75 430 1.181 1.4310 384.903 104.1 325.91 81.5 | 94.2 | 82.7 | 67.5 VD-343A 68 395 1.182 1.4310 308.819 133.78 261.22 80.1 | 100.0 | 72.6 | 67.6 VD-343 68 395 1.75 1.4310 527.292 93.63 301.37 100.0 | 100.0 | 100.0 | 100.0 VD-364R-34 69 296 1.825 1.4310 275.469 145.08 150.92 78.2 | 87.6 | 51.2 | 95.9 VD-349A 55 410 1.944 1.4310 504.34 150.63 259.38 91.1 | 92.4 | 90.9 | 90.0 VD-364R-63 77 365 2.347 1.4310 579.431 118.11 246.89 83.0 | 88.0 | 86.5 | 74.6 VD-349 55 410 2.365 1.4310 672.508 125.63 284.38 84.3 | 92.4 | 86.4 | 74.0 VD-364E-16 70 335 2.387 1.4310 558.819 100.9 234.1 83.4 | 91.0 | 86.0 | 73.3 VD-374A 69.3 500 2.45 1.4310 760.021 189.79 310.21 80.1 | 85.5 | 83.3 | 71.4 VD-342 68 275 2.573 1.4310 535.526 66.87 208.13 80.5 | 89.9 | 83.8 | 68.0 VD-373A 69.3 340 2.98 1.4310 541.454 158.29 181.71 75.1 | 87.9 | 78.8 | 58.7 VD-374 69.3 500 2.98 1.4310 1018.211 158.29 341.71 71.4 | 85.5 | 70.0 | 58.7 VD-389E-26 89 390 3.048 1.4310 797.571 128.35 261.65 72.0 | 82.2 | 76.5 | 57.4 VD-364J 60 341 3.191 1.4310 713.745 117.33 223.67 72.5 | 88.5 | 74.0 | 54.8 VD-389J 75 405 4.311 1.4310 1104.781 148.71 256.29 64.5 | 86.5 | 66.4 | 40.6 VD-373 69.3 340 4.41 1.4310 1009.725 111.04 228.96 63.9 | 87.9 | 64.1 | 39.7 VD-379A 56.3 365 4.901 1.4310 897.271 181.92 183.08 60.1 | 84.9 | 59.8 | 35.7 VD-398 88 410 5.6 1.4310 1506.4 141 269 57.4 | 78.7 | 62.1 | 31.2 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-343 Country of origin: DE, German; Compression spring VD-343 Product image - Compression springs VD-343 QR-Code: Compression spring VD-343
