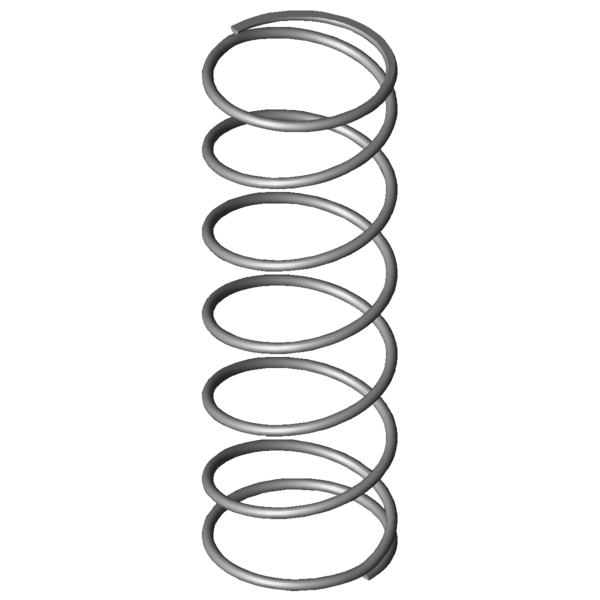

Home » Products » Compression springs » vd-339x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm Scaled prices - Compression spring VD-339X Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 4.4300 EUR 37 3.8300 EUR 75 3.7600 EUR 125 3.7600 EUR 175 3.7600 EUR 250 3.7600 EUR 350 3.7600 EUR Compression spring Buy Product image Compression spring VD-339X Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339X Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 85 mm Outer coil diameter Dd 73.1 mm maximum diameter of mandrel Dh 89.2 mm minimum diameter of bush L0 252 mm unstressed spring length Lk mm buckling length Fn 390.717 N maximum force in static use Ln 50.81 mm Minimum length in static use sn 201.19 mm Maximum spring deflection in static use Fndyn 377.783 N maximum force in dynamic use Lndyn 57.47 mm Minimum length in dynamic use shdyn 47.02 mm Maximum stroke in dynamic use S 44.909 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.942 N/mm Spring rate Weight 292.5576 g weight of one spring Fntol 29.28 N (+/-) tolerance of maximum force in static use Fndtol 29.06 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 9.93 mm (+/-) tolerance of unstressed spring length Price group #AN - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm force-path-calculation Compression spring VD-339X Inquiry formular Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm Inquiry formular Compression spring VD-339X Similar compression springs to Compression spring VD-339X Stainless steel Ø 5 x 80 x 252 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339X 1.4310 5 85 252 390.717 50.81 201.19 5.5 1.942 100.0 | 100.0 | 100.0 | 100.0 D-339X EN 10270-1 5 85 252 454.906 50.81 201.19 5.5 2.261 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-313T 70 233 1.417 1.4310 271.73 41.18 191.82 80.1 | 84.9 | 82.4 | 72.9 VD-339G 75 224 1.862 1.4310 332.631 45.34 178.66 90.6 | 89.0 | 87.0 | 95.9 VD-339Z-03 75 273 1.876 1.4310 382.194 69.25 203.76 96.1 | 93.5 | 98.3 | 96.6 VD-339X 85 252 1.942 1.4310 390.717 50.81 201.19 100.0 | 100.0 | 100.0 | 100.0 VD-364C 95 278 2.031 1.4310 450.206 56.29 221.71 91.6 | 90.3 | 88.8 | 95.6 VD-364R-58 90 210 2.251 1.4310 285.527 83.15 126.85 80.5 | 87.0 | 68.1 | 86.3 VD-342 68 275 2.573 1.4310 535.526 66.87 208.13 83.6 | 90.5 | 84.8 | 75.5 VD-369G 78.3 310 2.954 1.4310 576.69 114.8 195.2 77.5 | 84.3 | 82.4 | 65.7 VD-339W 85 164 3.052 1.4310 390.717 35.97 128.03 77.9 | 88.4 | 81.8 | 63.6 VD-366A 86.3 230 3.167 1.4310 460.969 84.46 145.54 76.5 | 89.7 | 78.5 | 61.3 VD-364E-14 70 220 3.51 1.4310 519.193 72.1 147.9 72.2 | 86.9 | 74.4 | 55.3 VD-364R-62 77 230 3.728 1.4310 563.555 78.81 151.19 70.9 | 88.4 | 72.2 | 52.1 VD-389E-12 105 230 4.058 1.4310 658.685 67.7 162.3 66.4 | 81.2 | 70.0 | 47.9 VD-369E 78.3 210 4.345 1.4310 555.897 82.05 127.95 65.5 | 84.9 | 66.9 | 44.7 VD-389E-24 89 280 4.483 1.4310 843.868 91.75 188.25 66.3 | 85.6 | 69.9 | 43.3 VD-366 86.3 220 4.895 1.4310 787.598 59.1 160.9 64.3 | 88.4 | 64.8 | 39.7 VD-394C 98 285 5.784 1.4310 1030.1 106.9 178.1 58.7 | 79.2 | 63.2 | 33.6 VD-378A 56.3 250 5.961 1.4310 585.228 151.82 98.18 57.3 | 81.6 | 57.8 | 32.6 VD-372 69.3 235 6.485 1.4310 1008.22 79.54 155.46 57.6 | 84.7 | 58.0 | 29.9 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-339X Country of origin: DE, German; Compression spring VD-339X Product image - Compression springs VD-339X QR-Code: Compression spring VD-339X
