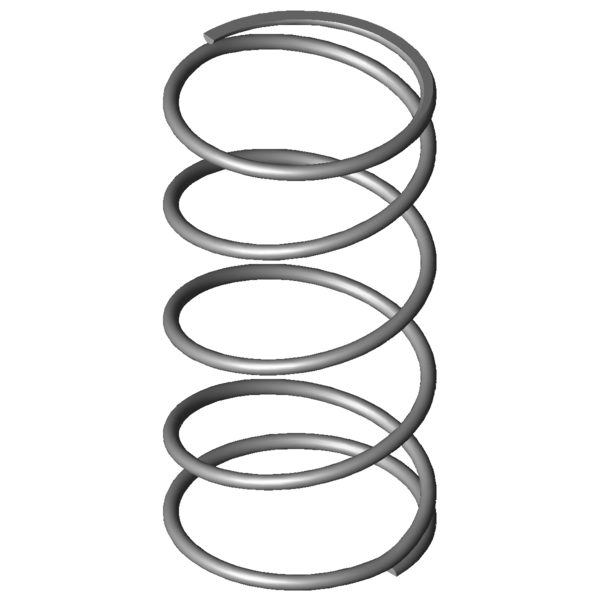

Home » Products » Compression springs » vd-339w Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm Scaled prices - Compression spring VD-339W Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-339W Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339W Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 85 mm Outer coil diameter Dd 73.1 mm maximum diameter of mandrel Dh 89.2 mm minimum diameter of bush L0 164 mm unstressed spring length Lk mm buckling length Fn 390.717 N maximum force in static use Ln 35.97 mm Minimum length in static use sn 128.03 mm Maximum spring deflection in static use Fndyn 377.777 N maximum force in dynamic use Lndyn 40.21 mm Minimum length in dynamic use shdyn 29.92 mm Maximum stroke in dynamic use S 45.429 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 3.052 N/mm Spring rate Weight 214.5423 g weight of one spring Fntol 32.39 N (+/-) tolerance of maximum force in static use Fndtol 32.17 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 7.2 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm force-path-calculation Compression spring VD-339W Inquiry formular Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm Inquiry formular Compression spring VD-339W Similar compression springs to Compression spring VD-339W Stainless steel Ø 5 x 80 x 164 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339W 1.4310 5 85 164 390.717 35.97 128.03 3.5 3.052 100.0 | 100.0 | 100.0 | 100.0 D-339W EN 10270-1 5 85 164 454.906 35.97 128.03 3.5 3.553 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 80.3 | 88.3 | 82.0 | 70.6 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 78.3 | 83.6 | 78.3 | 72.9 VD-364R-58 90 210 2.251 1.4310 285.527 83.15 126.85 81.7 | 85.3 | 86.1 | 73.8 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 95.3 | 93.5 | 97.5 | 95.0 VD-339F 75 146 2.926 1.4310 333.163 32.12 113.88 90.7 | 89.1 | 87.1 | 95.9 VD-339W 85 164 3.052 1.4310 390.717 35.97 128.03 100.0 | 100.0 | 100.0 | 100.0 VD-364B 95 181 3.191 1.4310 450.496 39.82 141.18 91.6 | 90.3 | 88.7 | 95.6 VD-364R-57 90 165 3.479 1.4310 371.869 58.1 106.9 89.8 | 92.4 | 89.3 | 87.7 VD-364E-06 80 165 3.521 1.4310 395.725 52.6 112.4 91.6 | 94.8 | 93.3 | 86.7 VD-341 68 180 3.977 1.4310 529.678 46.8 133.2 84.0 | 90.4 | 84.9 | 76.7 VD-364S 105 180 4.096 1.4310 553.059 44.97 135.03 80.3 | 83.8 | 82.7 | 74.5 VD-364E-12 70 147 5.425 1.4310 523.262 50.55 96.45 73.0 | 87.6 | 75.0 | 56.3 VD-364E-04 80 120 5.533 1.4310 456.432 37.5 82.5 72.1 | 86.1 | 75.0 | 55.2 VD-364R-61 77 153 5.761 1.4310 563.216 55.23 97.77 71.6 | 89.1 | 72.9 | 53.0 VD-369D 78.3 165 6.714 1.4310 721.467 57.55 107.45 68.3 | 90.3 | 69.0 | 45.5 VD-389E-22 89 190 6.928 1.4310 870.826 64.3 125.7 66.7 | 84.4 | 71.5 | 44.1 VD-365 86.3 145 7.692 1.4310 790.815 42.19 102.81 64.4 | 88.8 | 64.9 | 39.7 VD-394B 98 185 8.939 1.4310 1002.93 72.8 112.2 58.9 | 79.3 | 63.3 | 34.1 VD-371 69.3 155 10.023 1.4310 993.127 55.91 99.09 58.0 | 85.1 | 58.4 | 30.4 VD-390 108 170 10.24 1.4310 1194.368 53.36 116.64 57.0 | 79.2 | 61.9 | 29.8 VD-389E-20 89 115 10.887 1.4310 750.628 46.05 68.95 53.3 | 79.0 | 53.0 | 28.0 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-339W Country of origin: DE, German; Compression spring VD-339W Product image - Compression springs VD-339W QR-Code: Compression spring VD-339W
