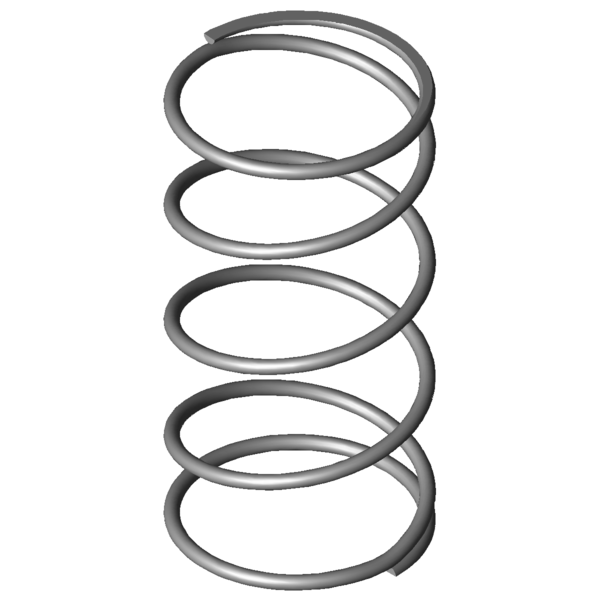

Home » Products » Compression springs » vd-339f Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm Scaled prices - Compression spring VD-339F Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339F Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339F Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 4.5 mm Wire diameter Di - mm Inner coil diameter D 70.5 mm Mean coil diameter De 75 mm Outer coil diameter Dd 64.1 mm maximum diameter of mandrel Dh 79 mm minimum diameter of bush L0 146 mm unstressed spring length Lk mm buckling length Fn 333.163 N maximum force in static use Ln 32.12 mm Minimum length in static use sn 113.88 mm Maximum spring deflection in static use Fndyn 322.378 N maximum force in dynamic use Lndyn 35.81 mm Minimum length in dynamic use shdyn 23.91 mm Maximum stroke in dynamic use S 40.429 mm pitch of spring n 3.5 pc. number of active coils nt - pc. total number of coils R 2.926 N/mm Spring rate Weight 153.143 g weight of one spring Fntol 27.32 N (+/-) tolerance of maximum force in static use Fndtol 27.14 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 6.31 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm force-path-calculation Compression spring VD-339F Inquiry formular Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm Inquiry formular Compression spring VD-339F Similar compression springs to Compression spring VD-339F Stainless steel Ø 4.5 x 70.5 x 146 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339F 1.4310 4.5 75 146 333.163 32.12 113.88 3.5 2.926 100.0 | 100.0 | 100.0 | 100.0 D-339F EN 10270-1 4.5 75 146 387.897 32.12 113.88 3.5 3.406 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339J-11 68 173 2.156 1.4310 265.363 49.91 123.09 83.8 | 91.7 | 86.1 | 73.7 VD-313S 70 145 2.226 1.4310 257.969 29.12 115.88 85.9 | 93.8 | 87.9 | 76.1 VD-313R-01 70 133 2.226 1.4310 231.255 29.12 103.88 82.5 | 91.1 | 80.3 | 76.1 VD-339Z-02 75 178 2.899 1.4310 375.884 48.34 129.67 92.7 | 90.7 | 88.2 | 99.1 VD-339F 75 146 2.926 1.4310 333.163 32.12 113.88 100.0 | 100.0 | 100.0 | 100.0 VD-339W 85 164 3.052 1.4310 390.717 35.97 128.03 90.7 | 89.1 | 87.1 | 95.9 VD-315 54 150 3.258 1.4310 367.014 37.36 112.64 90.2 | 86.1 | 94.8 | 89.8 VD-364E-06 80 165 3.521 1.4310 395.725 52.6 112.4 87.5 | 88.0 | 91.4 | 83.1 VD-364R-32 69 136 3.973 1.4310 251.418 72.71 63.29 75.9 | 88.5 | 65.5 | 73.6 VD-339Z-01 75 117 4.555 1.4310 376.298 34.4 82.61 78.3 | 90.0 | 80.5 | 64.2 VD-346A 55 150 5.147 1.4310 447.151 63.13 86.88 73.0 | 86.9 | 75.4 | 56.8 VD-364E-12 70 147 5.425 1.4310 523.262 50.55 96.45 73.2 | 91.5 | 74.2 | 53.9 VD-364E-04 80 120 5.533 1.4310 456.432 37.5 82.5 70.5 | 85.9 | 72.7 | 52.9 VD-364R-61 77 153 5.761 1.4310 563.216 55.23 97.77 70.9 | 89.3 | 72.5 | 50.8 VD-340 68 120 6.249 1.4310 541.039 33.42 86.58 67.7 | 87.6 | 68.8 | 46.8 VD-369D 78.3 165 6.714 1.4310 721.467 57.55 107.45 66.4 | 85.2 | 70.3 | 43.6 VD-365 86.3 145 7.692 1.4310 790.815 42.19 102.81 63.4 | 85.9 | 66.2 | 38.0 VD-364G 60 128 8.993 1.4310 712.875 48.73 79.27 58.0 | 83.2 | 58.2 | 32.5 VD-371 69.3 155 10.023 1.4310 993.127 55.91 99.09 58.5 | 86.0 | 60.3 | 29.2 VD-369C 78.3 110 10.551 1.4310 725.927 41.2 68.8 53.9 | 80.9 | 53.2 | 27.7 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-339F Country of origin: DE, German; Compression spring VD-339F Product image - Compression springs VD-339F QR-Code: Compression spring VD-339F
